Power Window Motor, Driver Side Front Connector End View (C524)

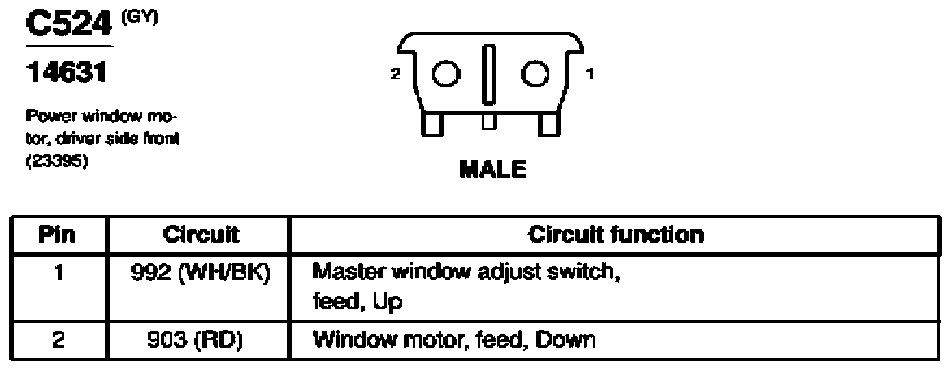

Fig 1: Power Window Motor, Driver Side Front Connector End View (C524)

G07839379

Courtesy of FORD MOTOR CO.
