Indicator Flasher Relay Connector End View (C2047)

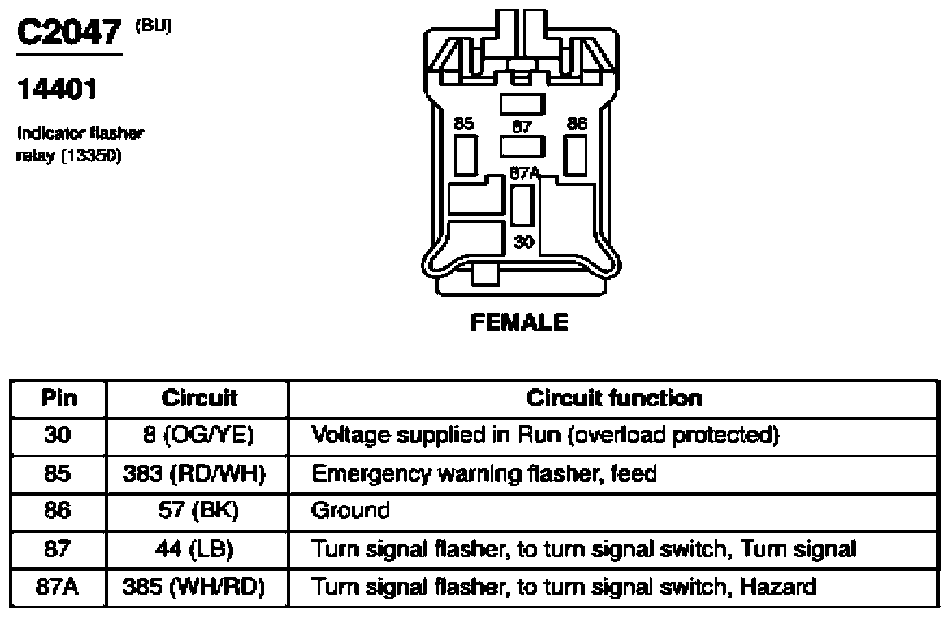

Fig 1: Indicator Flasher Relay Connector End View (C2047)

G07839450

Courtesy of FORD MOTOR CO.
