Fuel Tank Unit Connector End View (C4033)

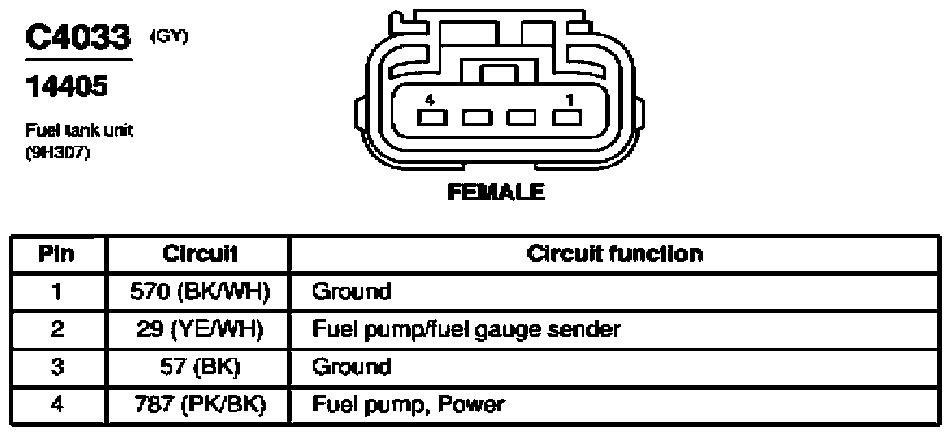

Fig 1: Fuel Tank Unit Connector End View (C4033)

G03778959

Courtesy of FORD MOTOR CO.
