Cylinder-Head Temperature Sensor Connector End View (C107)

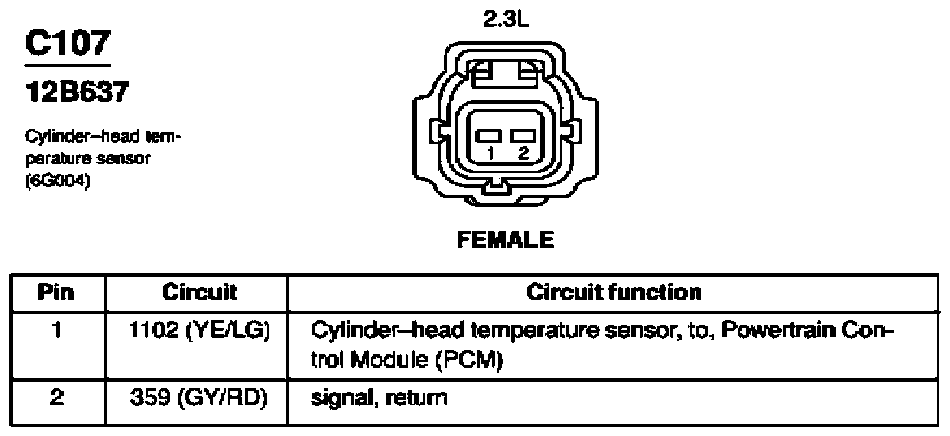

Fig 1: Cylinder-Head Temperature Sensor Connector End View (C107)

G07839293

Courtesy of FORD MOTOR CO.
