Crankshaft Position Sensor Connector End View (C101)

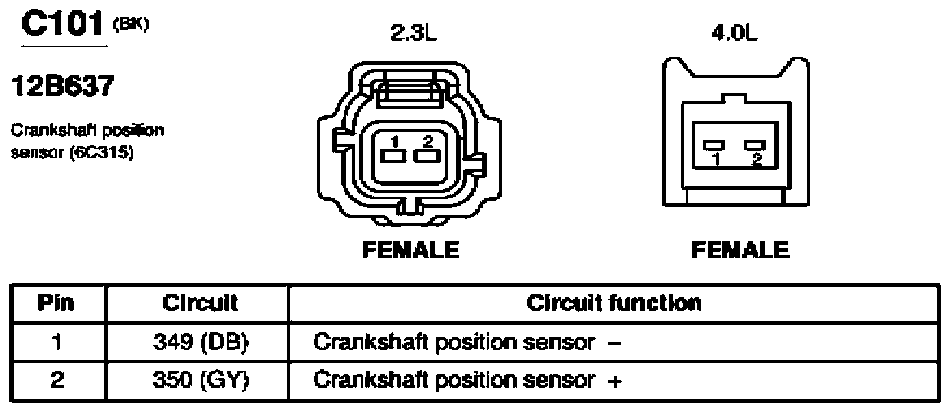

Fig 1: Crankshaft Position Sensor Connector End View (C101)

G07839288

Courtesy of FORD MOTOR CO.
