Disassembly Note

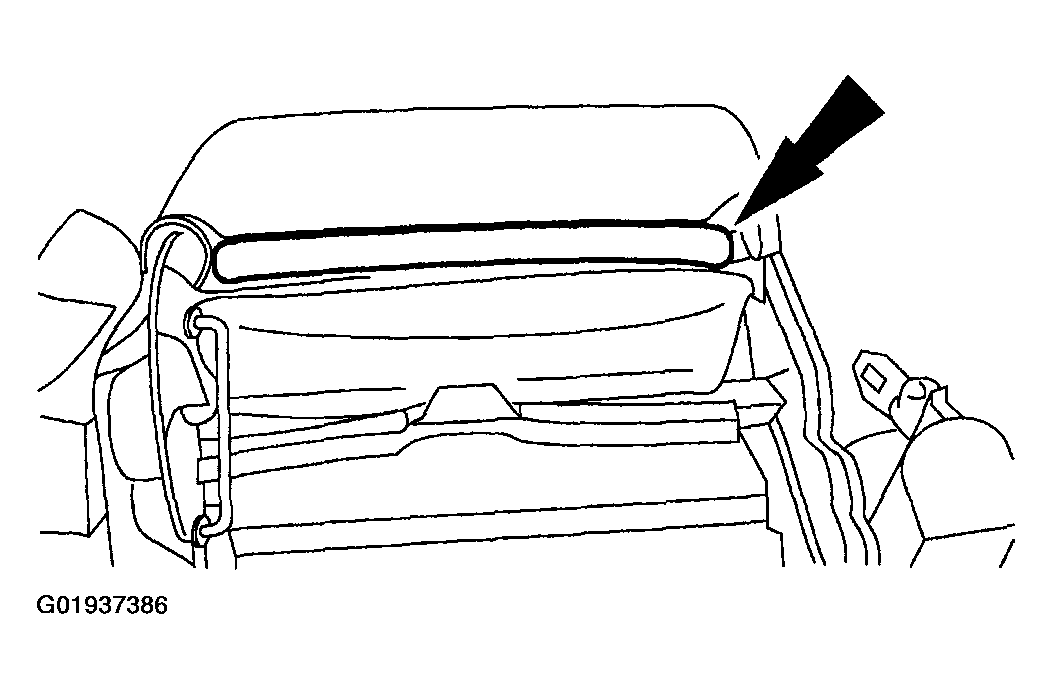

Fig 1: Unhooking Trim Cover Retainer
G01937386Courtesy of MAZDA MOTORS CORP.
  1. Unhook the trim cover retainer.
    Fig 2: Repositioning Seat Back Trim Cover
    G01937387Courtesy of MAZDA MOTORS CORP.
  2. Reposition the seat back trim cover.

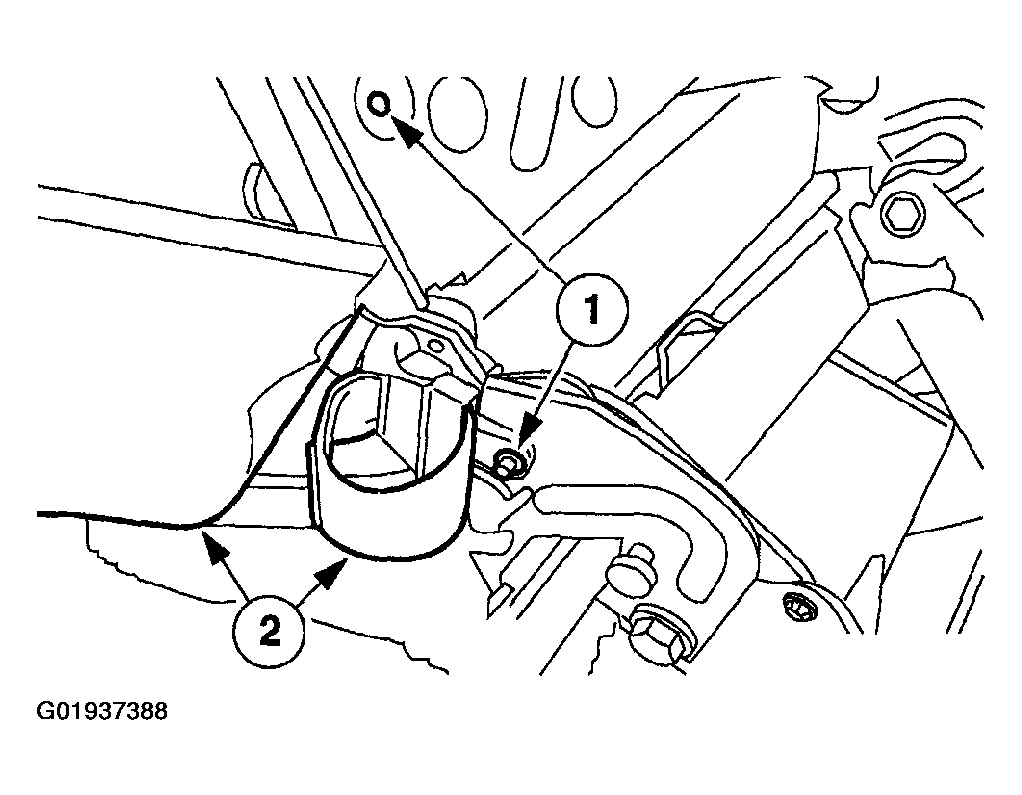

    Fig 3: Removing Seat Back Trim Cover And Safety Belt Buckle
    G01937388Courtesy of MAZDA MOTORS CORP.
  3. Remove the seat back trim cover and the safety belt buckle.
    1. Drill out the rivets.
    2. Remove the seat back trim cover and the safety belt buckle.
    Fig 4: Removing Seat Back Padding
    G01937389Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Use care when removing the seat back padding because it may be attached to the seat back frame with adhesive.
  4. Remove the seat back cushion.
