Seat Front - 60/40 Split Bench Disassembly/Assembly: Assembly

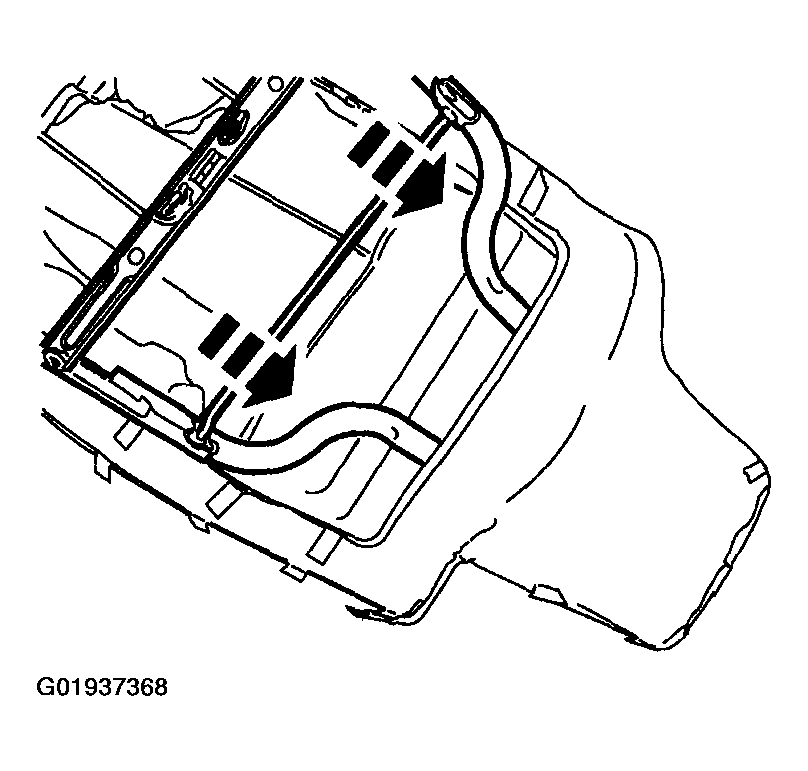

Fig 1: Sliding Backrest Frame Into Backrest Foam Pad

Courtesy of MAZDA MOTORS CORP.

1. Slide the backrest frame into the backrest foam pad.

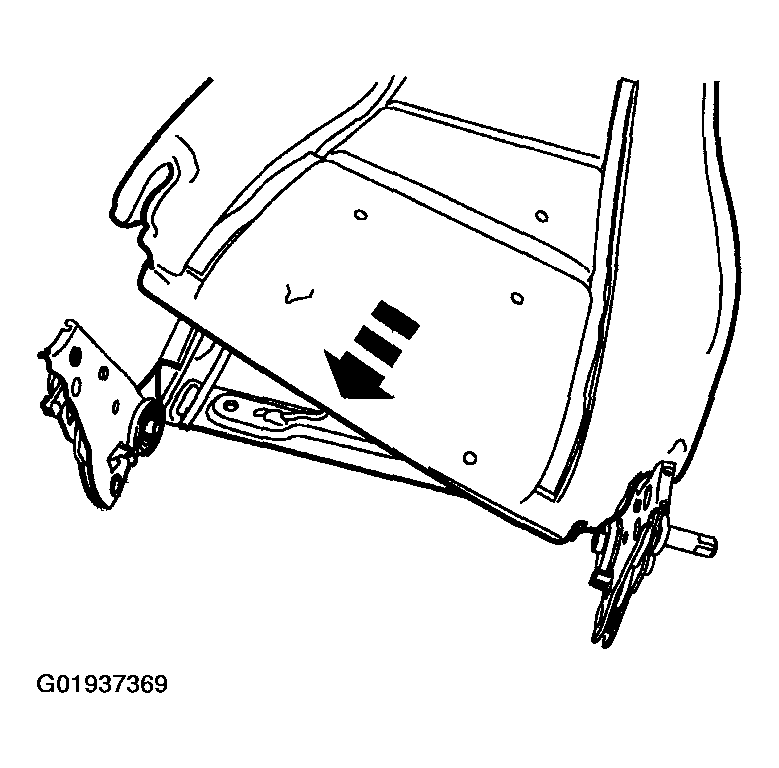

   Fig 2: Installing Lower End Of Backrest Foam Pad On Backrest Frame

   Courtesy of MAZDA MOTORS CORP.
2. Install the lower end of the backrest foam pad on the backrest frame.
   Fig 3: Installing Backrest Trim Cover Hog Rings

   Courtesy of MAZDA MOTORS CORP.
3. Install the backrest trim cover and install all of the hog rings.
   Fig 4: Pulling Backrest Trim Cover Down

   Courtesy of MAZDA MOTORS CORP.
4. Pull the backrest trim cover down and secure the hook and loop fasteners to the backrest foam pad.

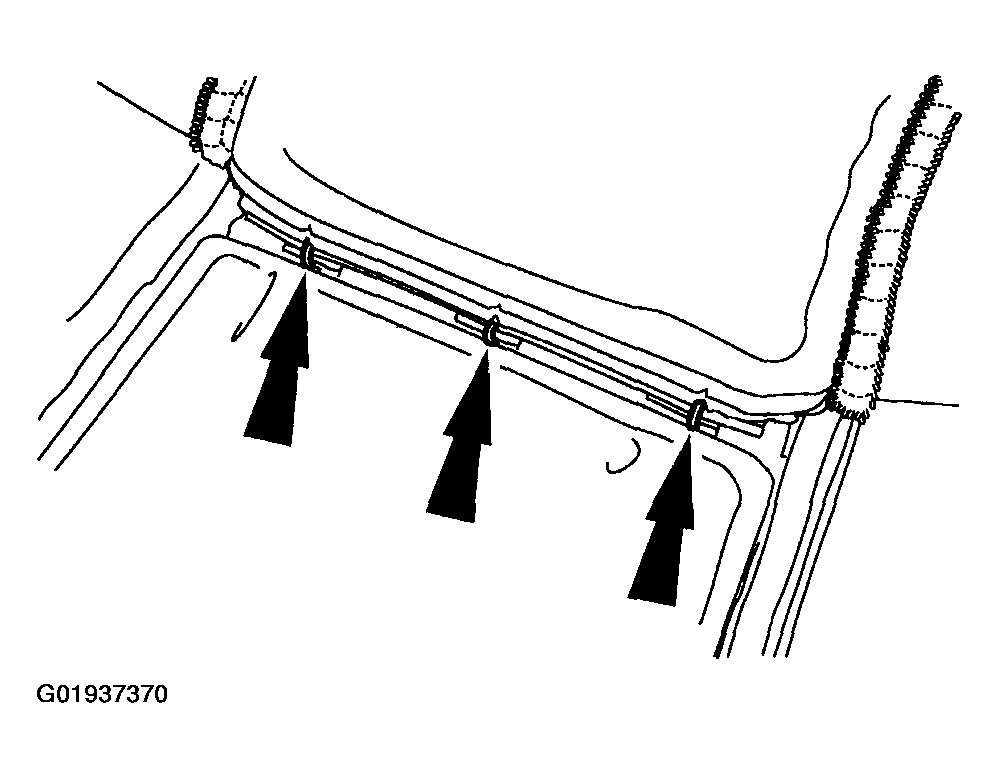

   Fig 5: Attaching Backrest J-Clip

   Courtesy of MAZDA MOTORS CORP.
5. Attach the backrest J-clip.
6. Install the 60 percent seat backrest assembly. See SEAT BACKREST FRONT - BUCKET AND 40 PERCENT BENCH REMOVAL/INSTALLATION  .
7. Install the 60 percent armrest. See SEAT ARMREST FRONT - 60 PERCENT BENCH REMOVAL/INSTALLATION  .
8. Install the affected seat. See SEAT BUCKET FRONT REMOVAL/INSTALLATION  .
9. Repower the SRS. See DISABLING & ACTIVATING AIR BAG SYSTEM .
