Multi-Function Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the ignition lock cylinder. See IGNITION LOCK CYLINDER REMOVAL/INSTALLATION .
  3. If equipped, remove the tilt wheel handle.
  4. Remove the upper and lower steering column shrouds.
  5. Remove in order shown in figure.
    1. Screws
    2. Connectors
    3. Switch
  6. Install in reverse order of removal.
    1. Tightening torque
      1. 2- 3 N.m (20 -31 kgf.cm, 18 -26 in.lbf)

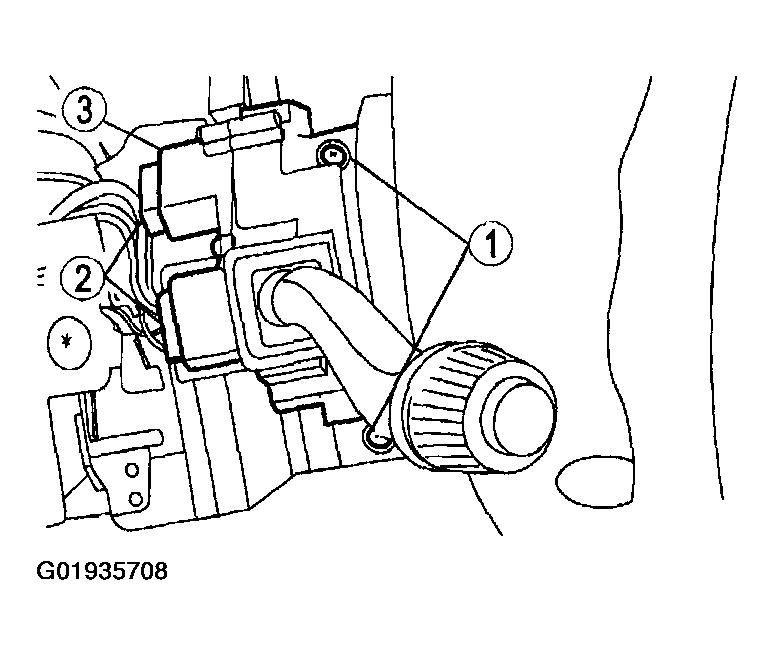

    Fig 1: Removing/Installing Multi-Function Switch
    G01935708Courtesy of MAZDA MOTORS CORP.
