Fuel-Filler Lid Opener Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear console. (See CONSOLE REMOVAL/INSTALLATION .)
  2. Remove the rear package trim. (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
  3. Remove the rear end mat.
  4. Remove the driver's side trunk side trim.
  5. Remove in the order indicated in the table.

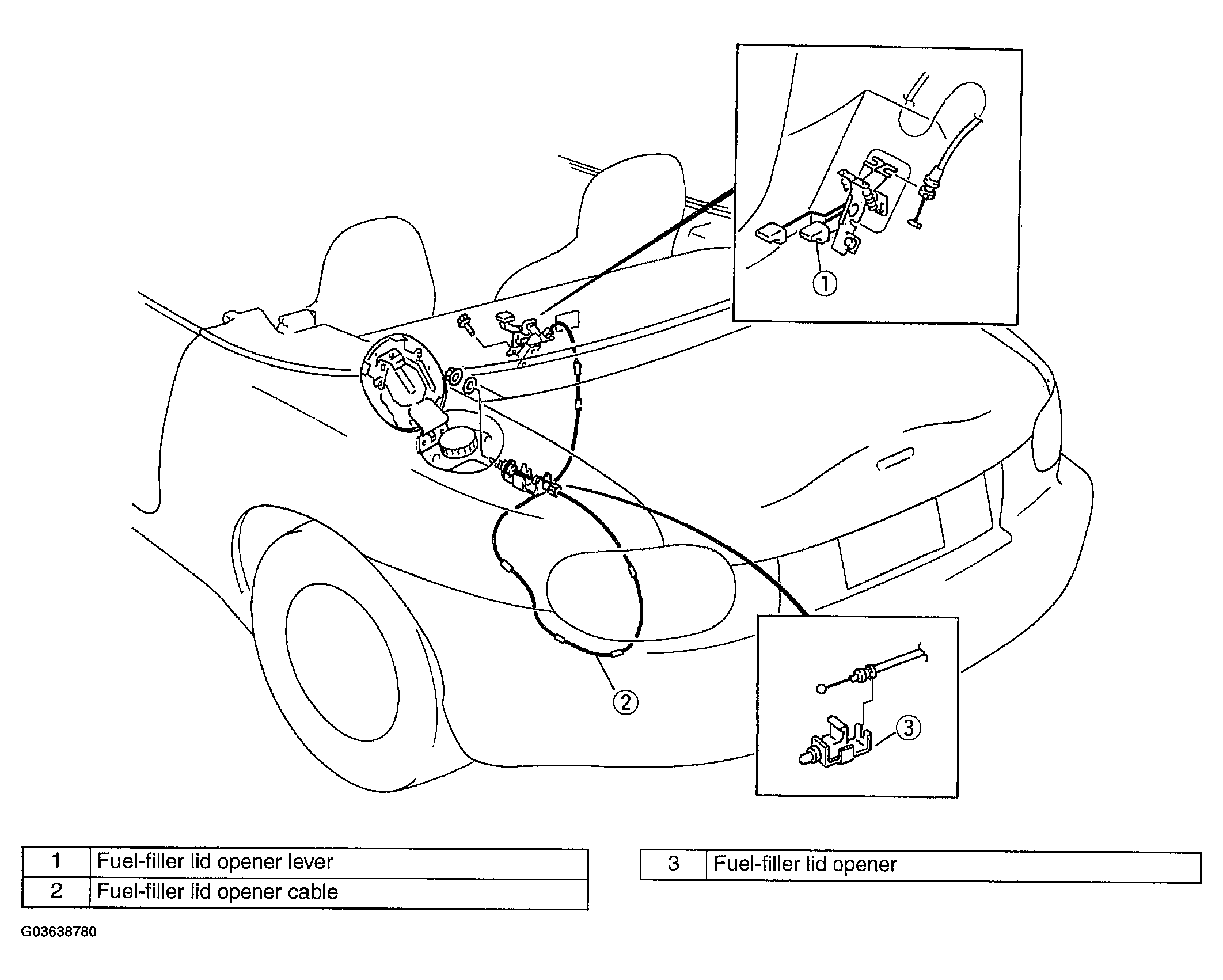

    Fig 1: Removing Fuel-Filler Lid Opener
    G03638780Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
