Door Lock And Opener Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Close the door glass completely.
  2. Disconnect the negative battery cable.
  3. Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION .)
  4. To remove the door lock, remove the rear glass guide. (See DOOR DISASSEMBLY/ASSEMBLY .)
  5. Remove in the order indicated in the table.

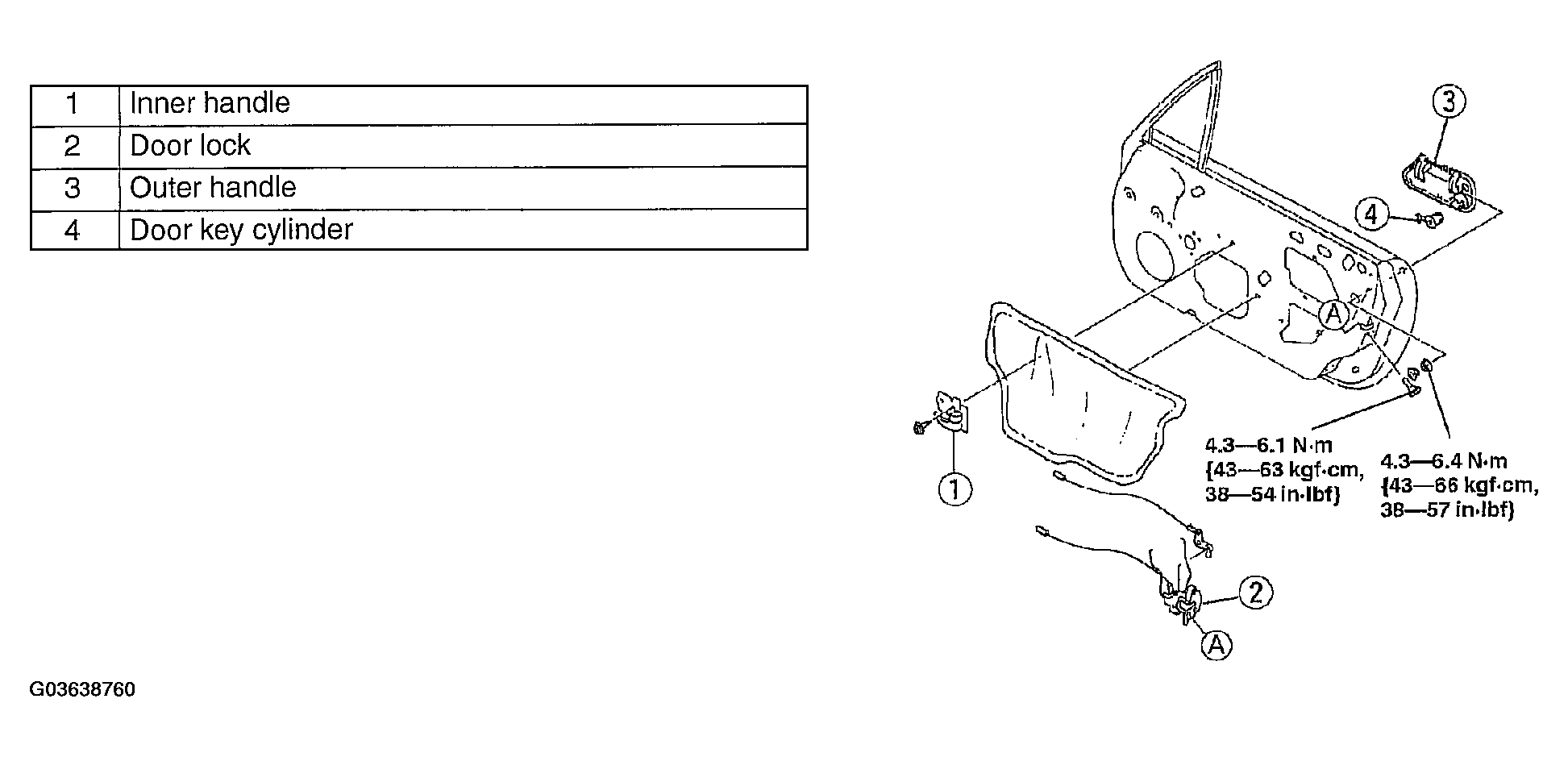

    Fig 1: Removing Door Lock And Opener - With Torque Specifications
    G03638760Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
