Emissions Compliance

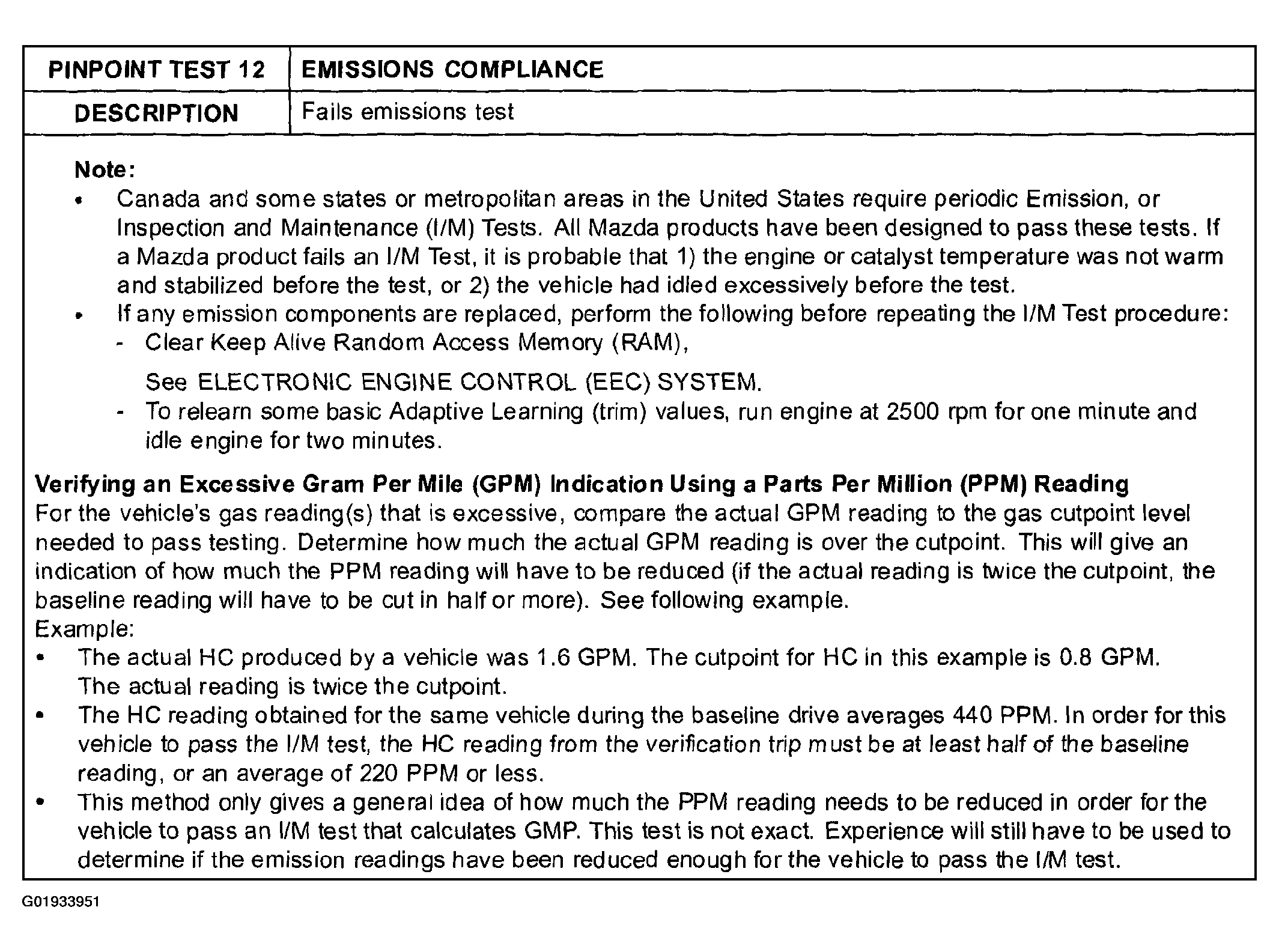

Fig 1: Pinpoint Test 12 - Emissions Compliance Description

Courtesy of MAZDA MOTORS CORP.

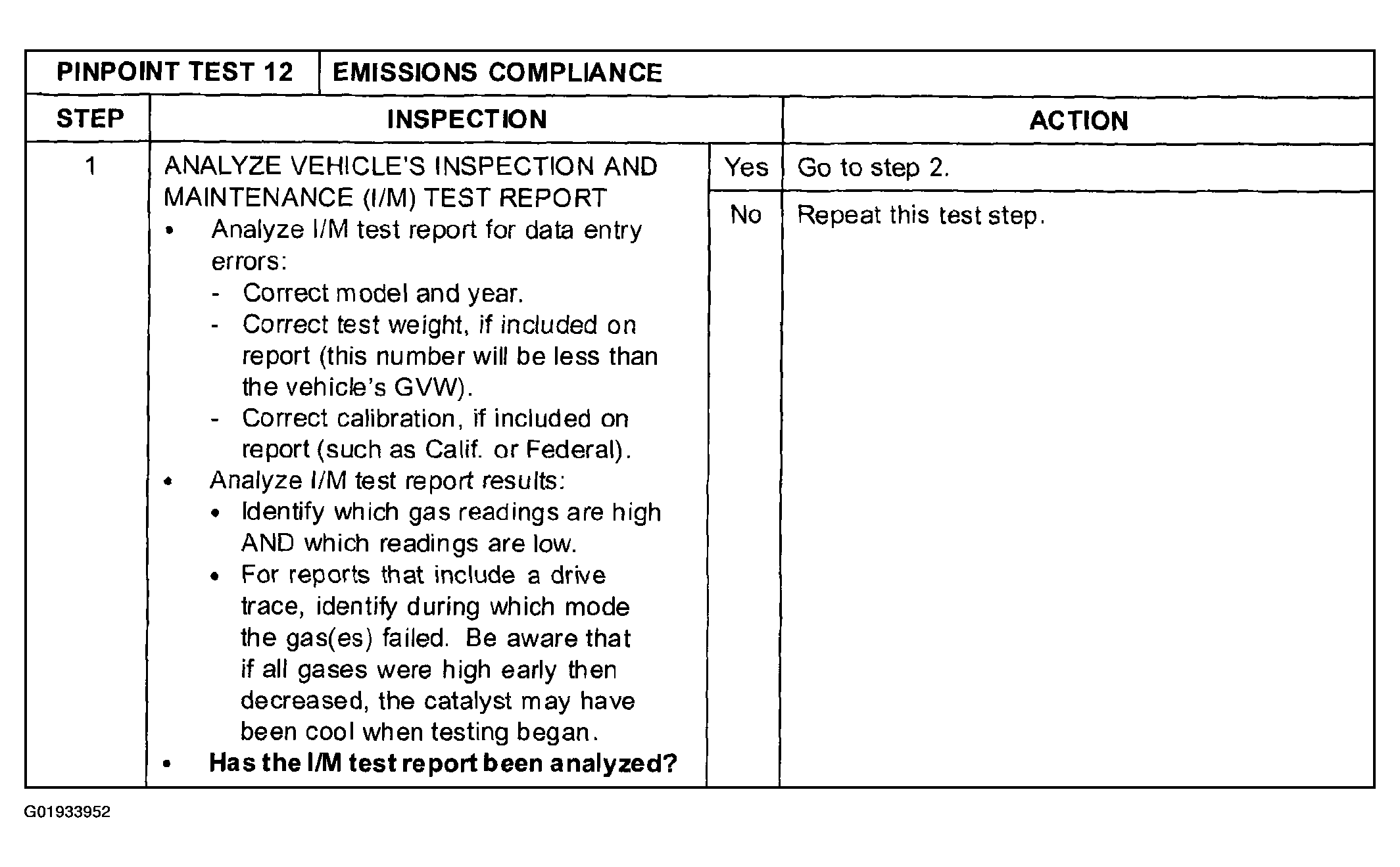

Fig 2: Pinpoint Test 12 - Emissions Compliance (Step 1)

Courtesy of MAZDA MOTORS CORP.

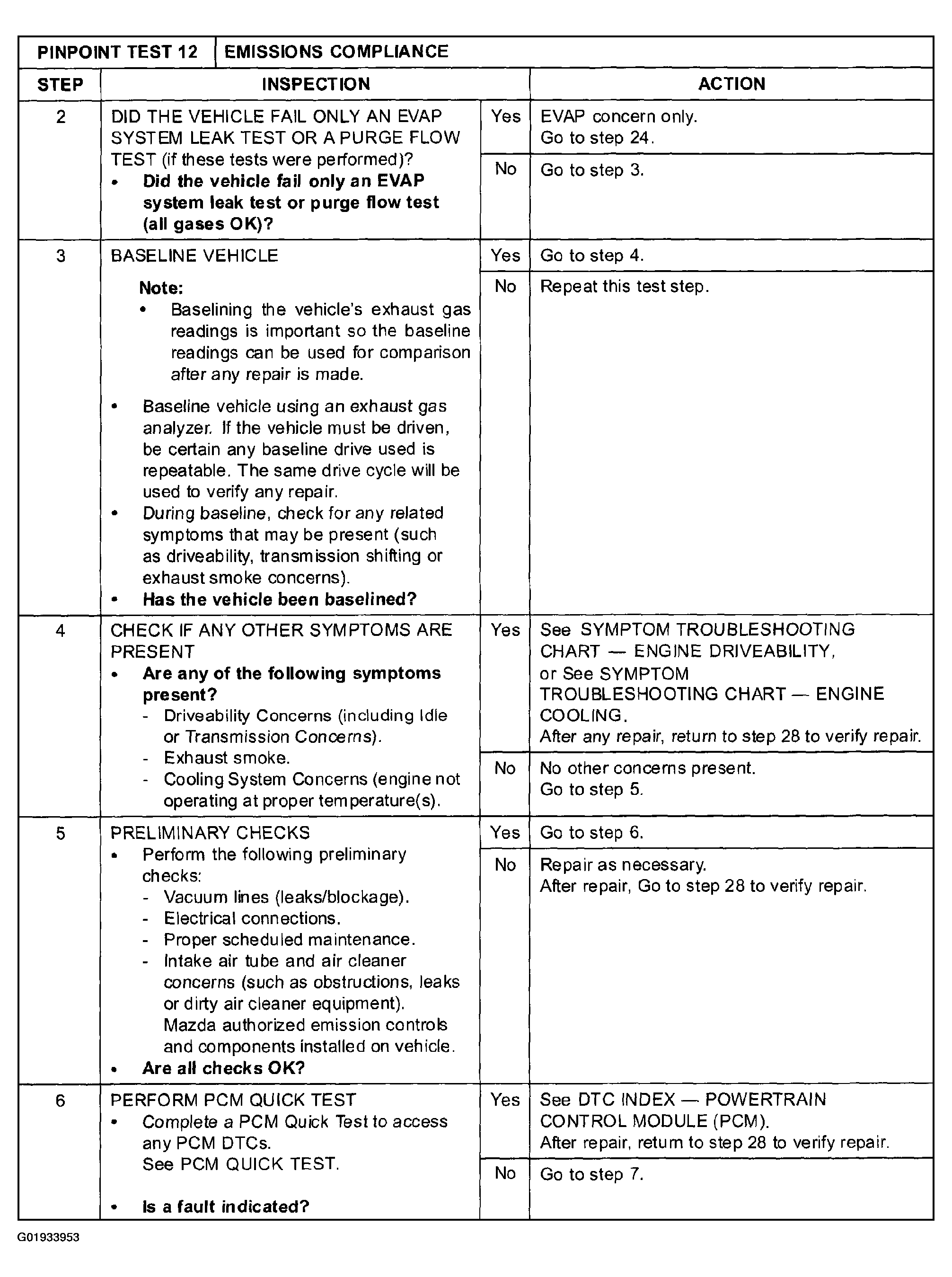

Fig 3: Pinpoint Test 12 - Emissions Compliance (Steps 2-6)

Courtesy of MAZDA MOTORS CORP.

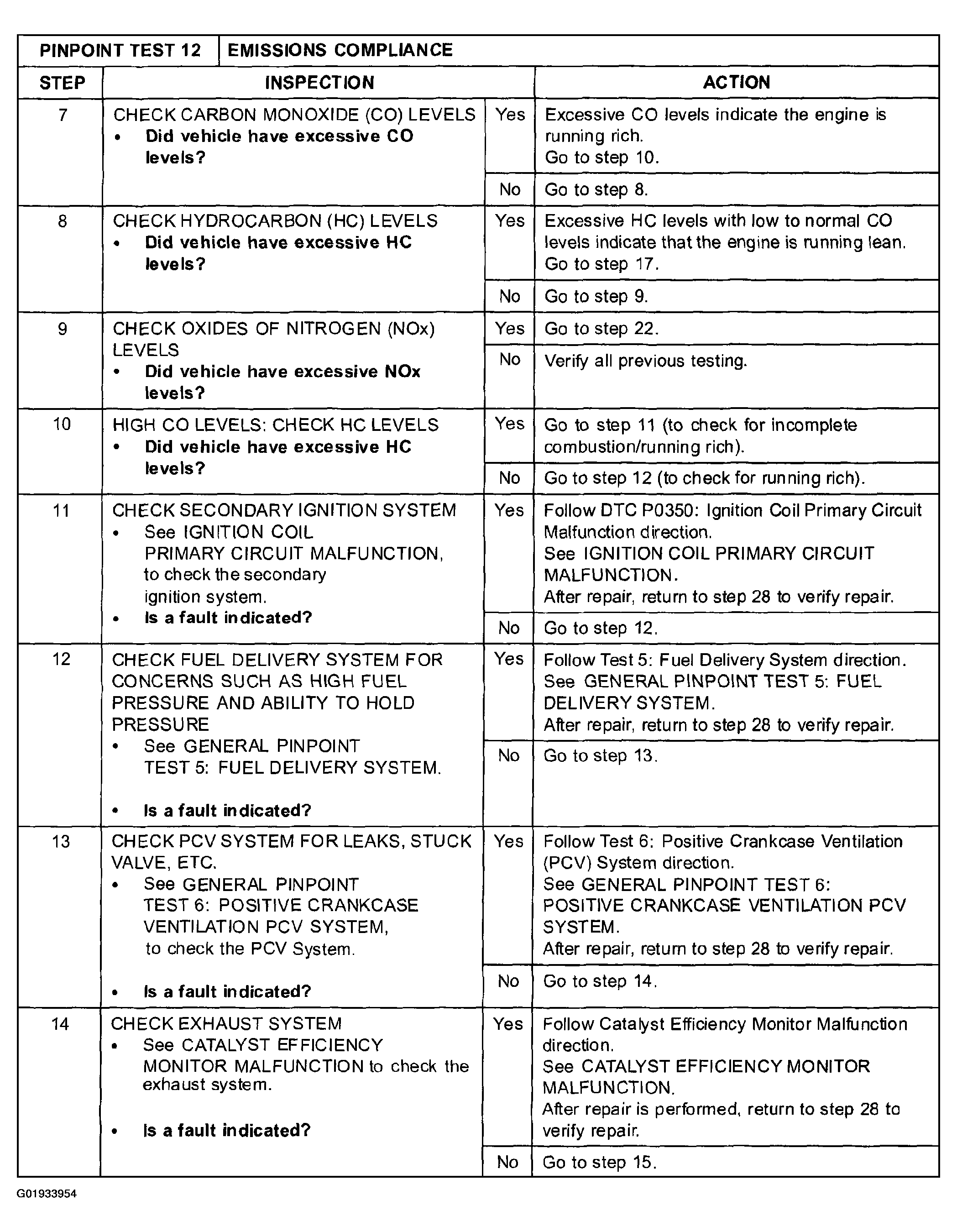

Fig 4: Pinpoint Test 12 - Emissions Compliance (Steps 7-14)

Courtesy of MAZDA MOTORS CORP.

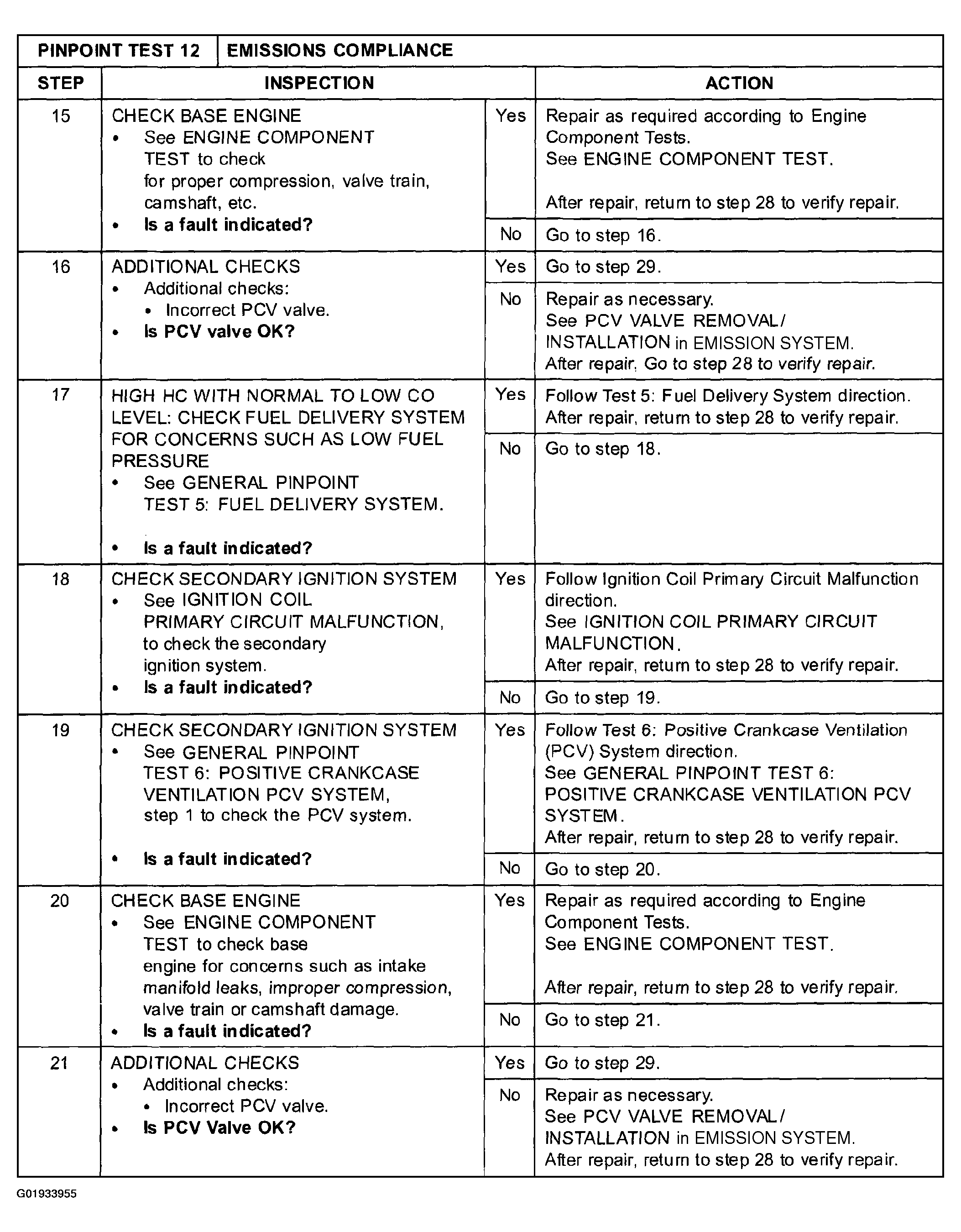

Fig 5: Pinpoint Test 12 - Emissions Compliance (Steps 15-21)

Courtesy of MAZDA MOTORS CORP.

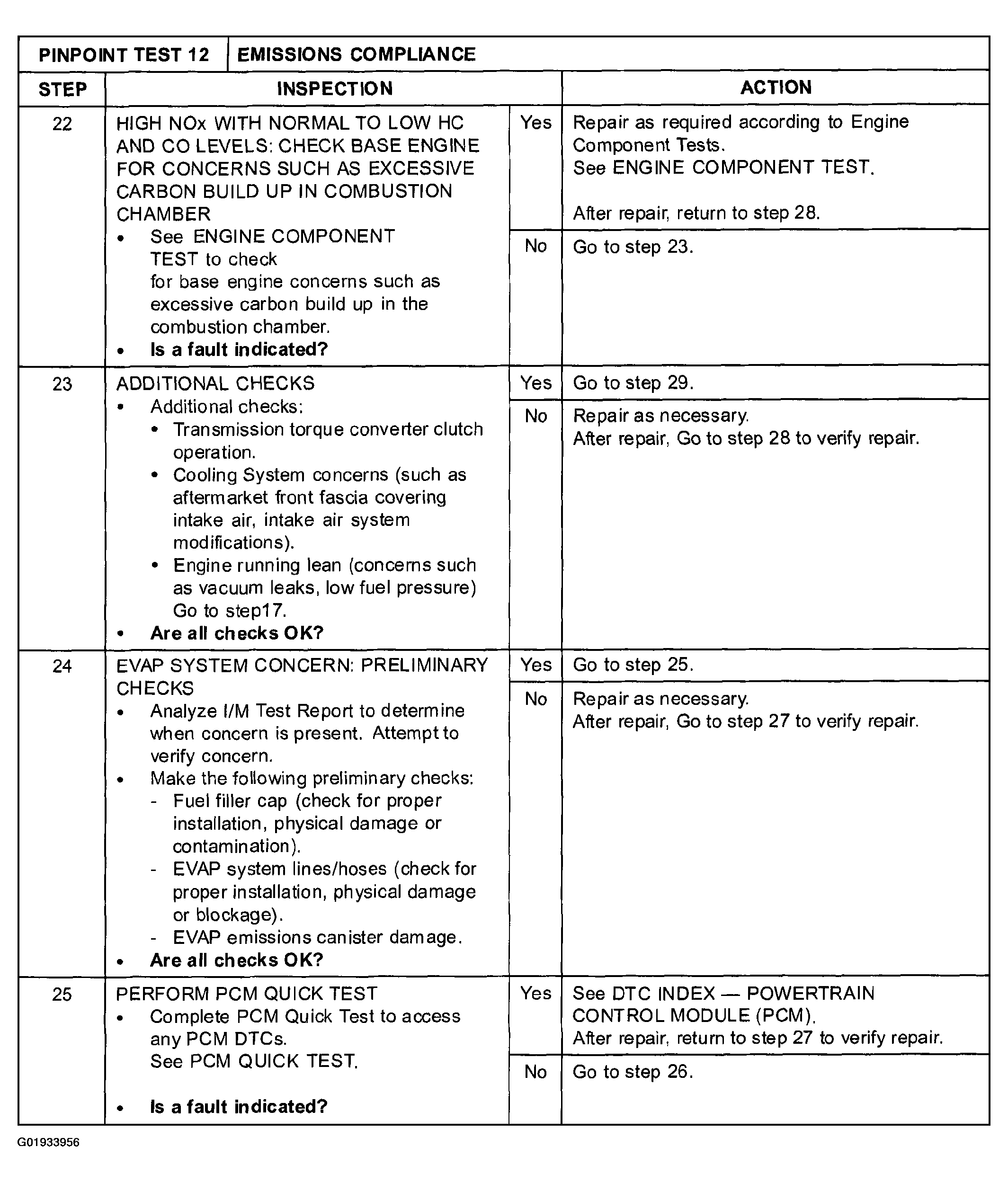

Fig 6: Pinpoint Test 12 - Emissions Compliance (Steps 22-25)

Courtesy of MAZDA MOTORS CORP.

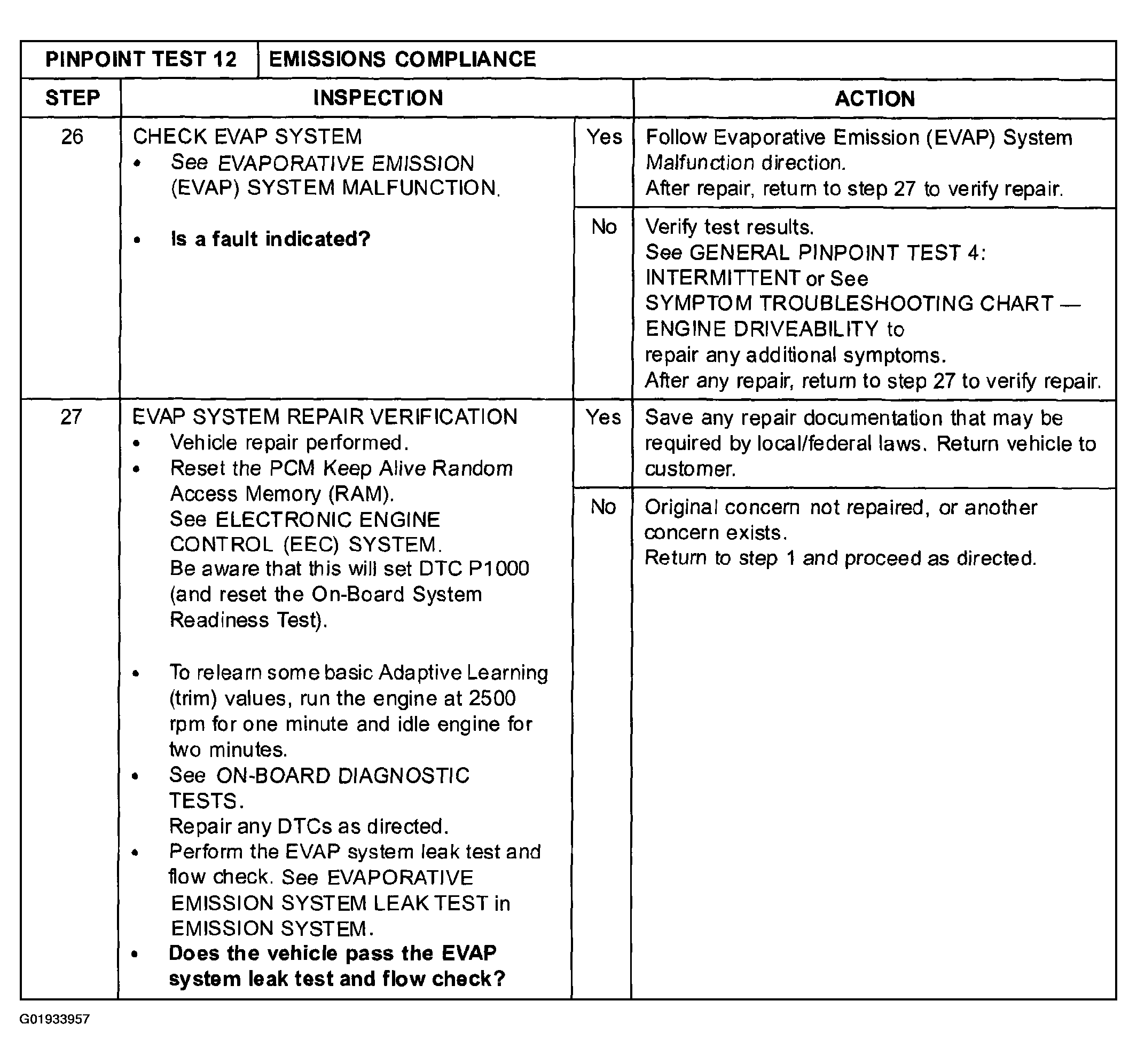

Fig 7: Pinpoint Test 12 - Emissions Compliance (Steps 26-27)

Courtesy of MAZDA MOTORS CORP.

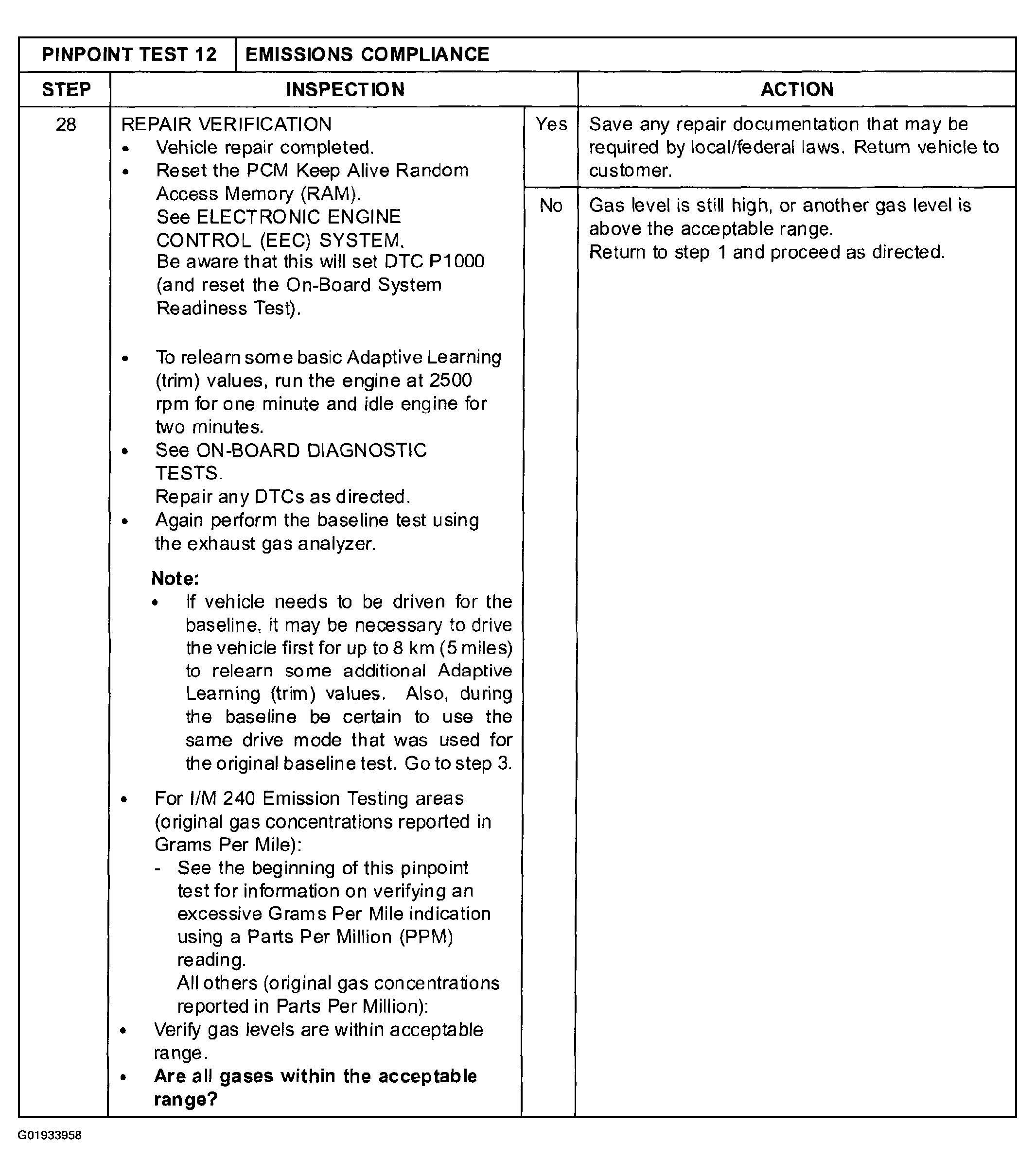

Fig 8: Pinpoint Test 12 - Emissions Compliance (Step 28)

Courtesy of MAZDA MOTORS CORP.

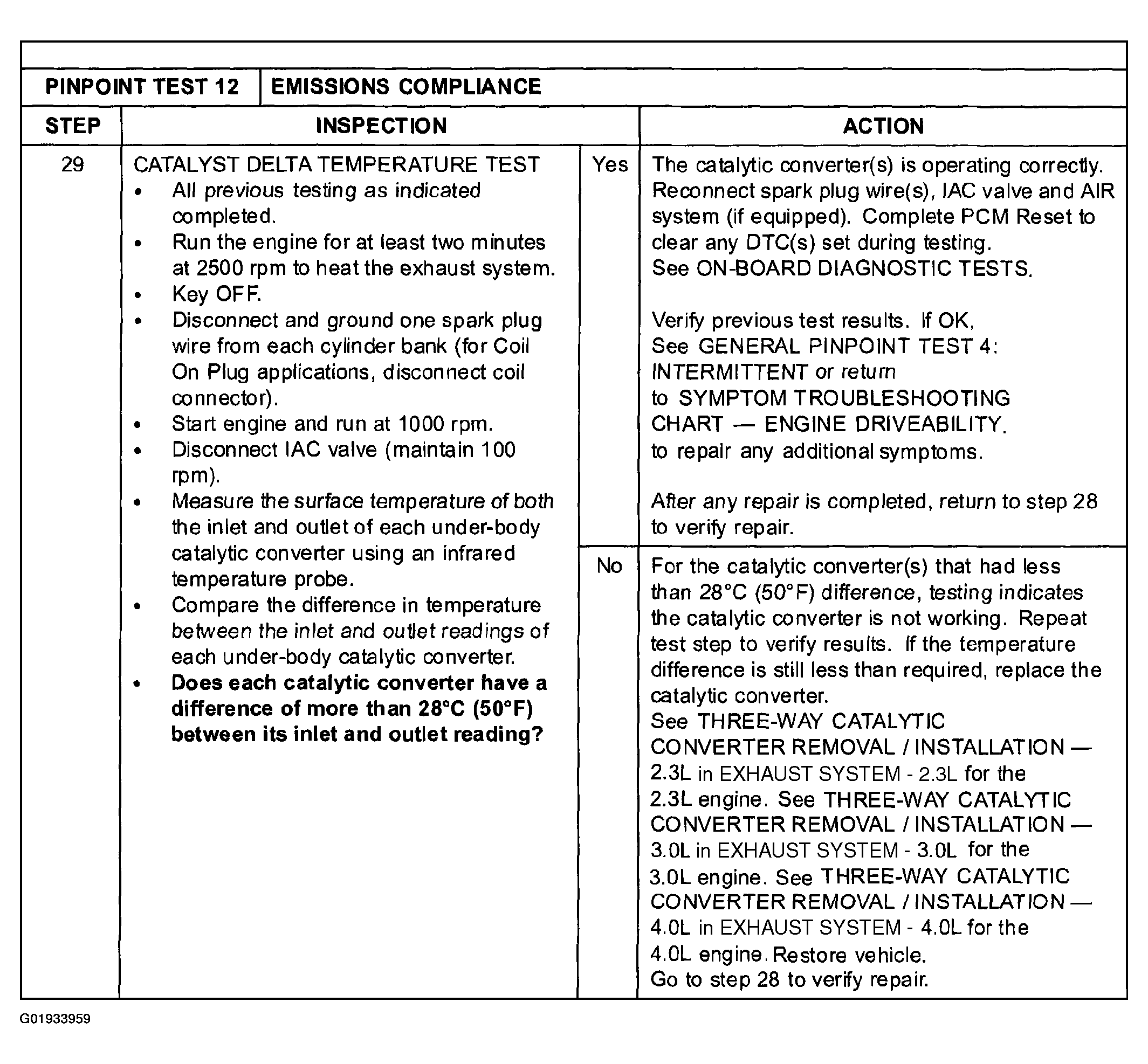

Fig 9: Pinpoint Test 12 - Emissions Compliance (Step 29)

Courtesy of MAZDA MOTORS CORP.
