Abs Pinpoint Test 7: DTC C1414: Incorrect Module Design Level

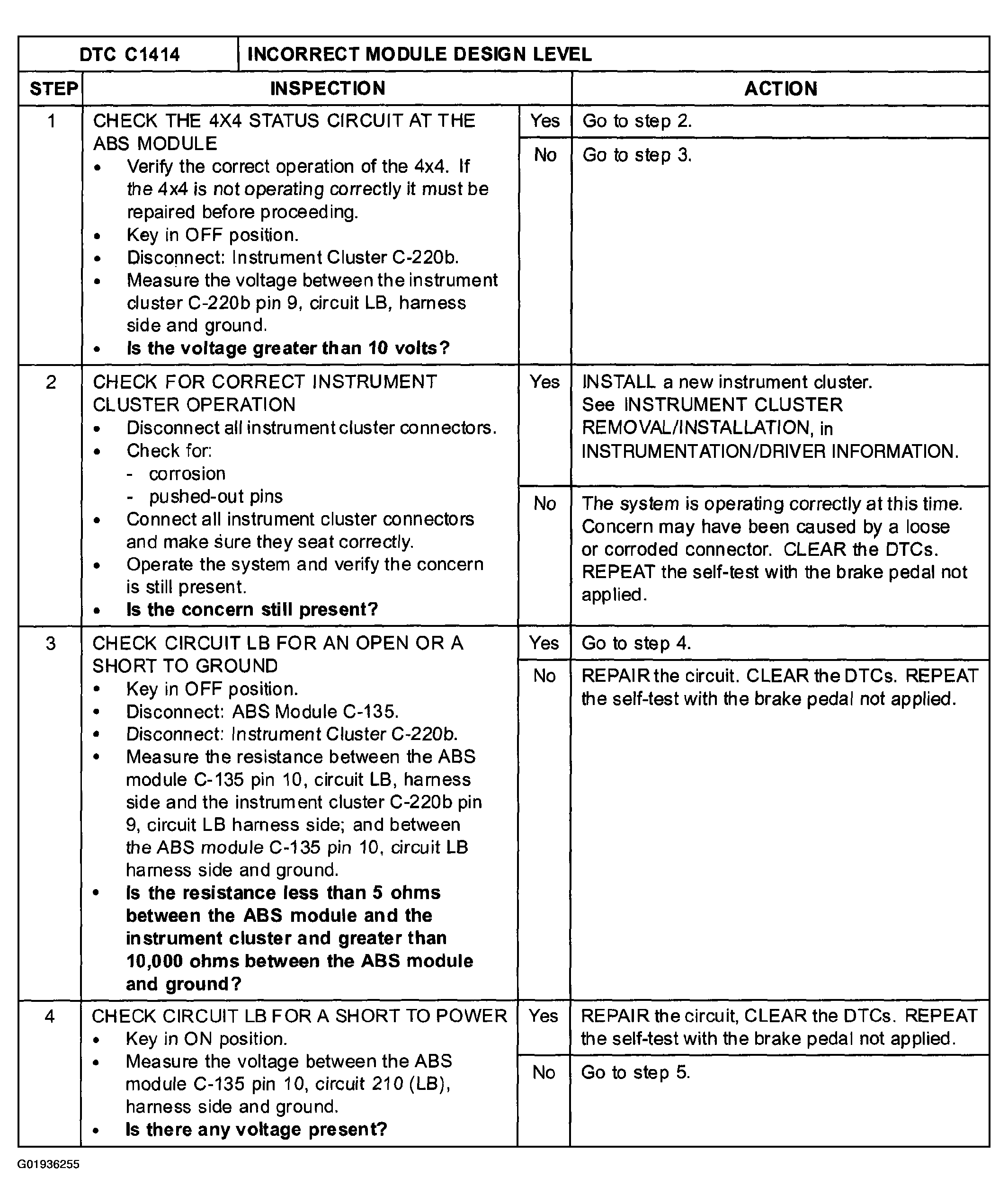

Fig 1: ABS Pinpoint Test 7: DTC C1414: Incorrect Module Design Level (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

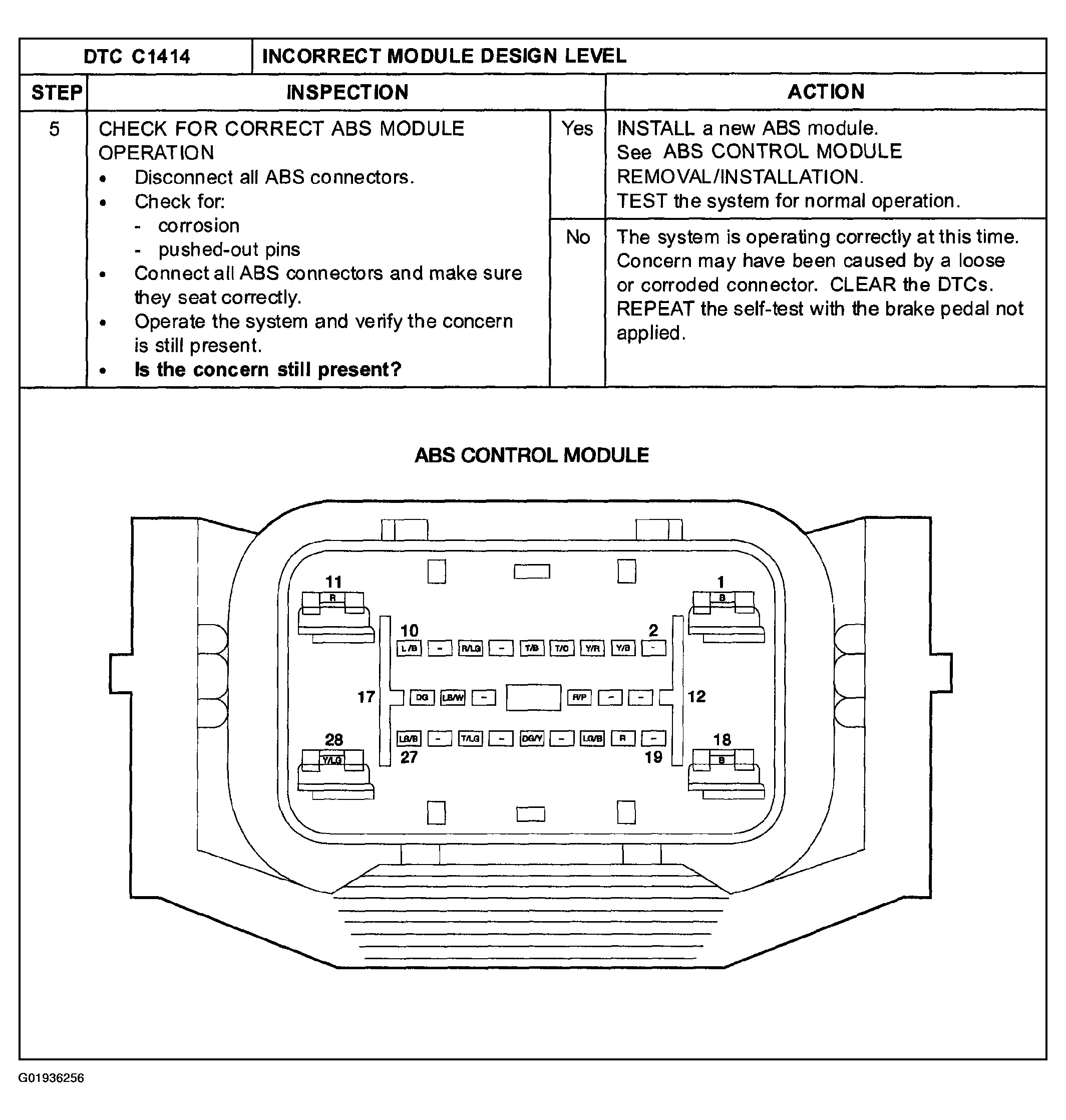

Fig 2: ABS Pinpoint Test 7: DTC C1414: Incorrect Module Design Level (Step 5 & Identifying ABS Control Module Connector Terminals)

Courtesy of MAZDA MOTORS CORP.

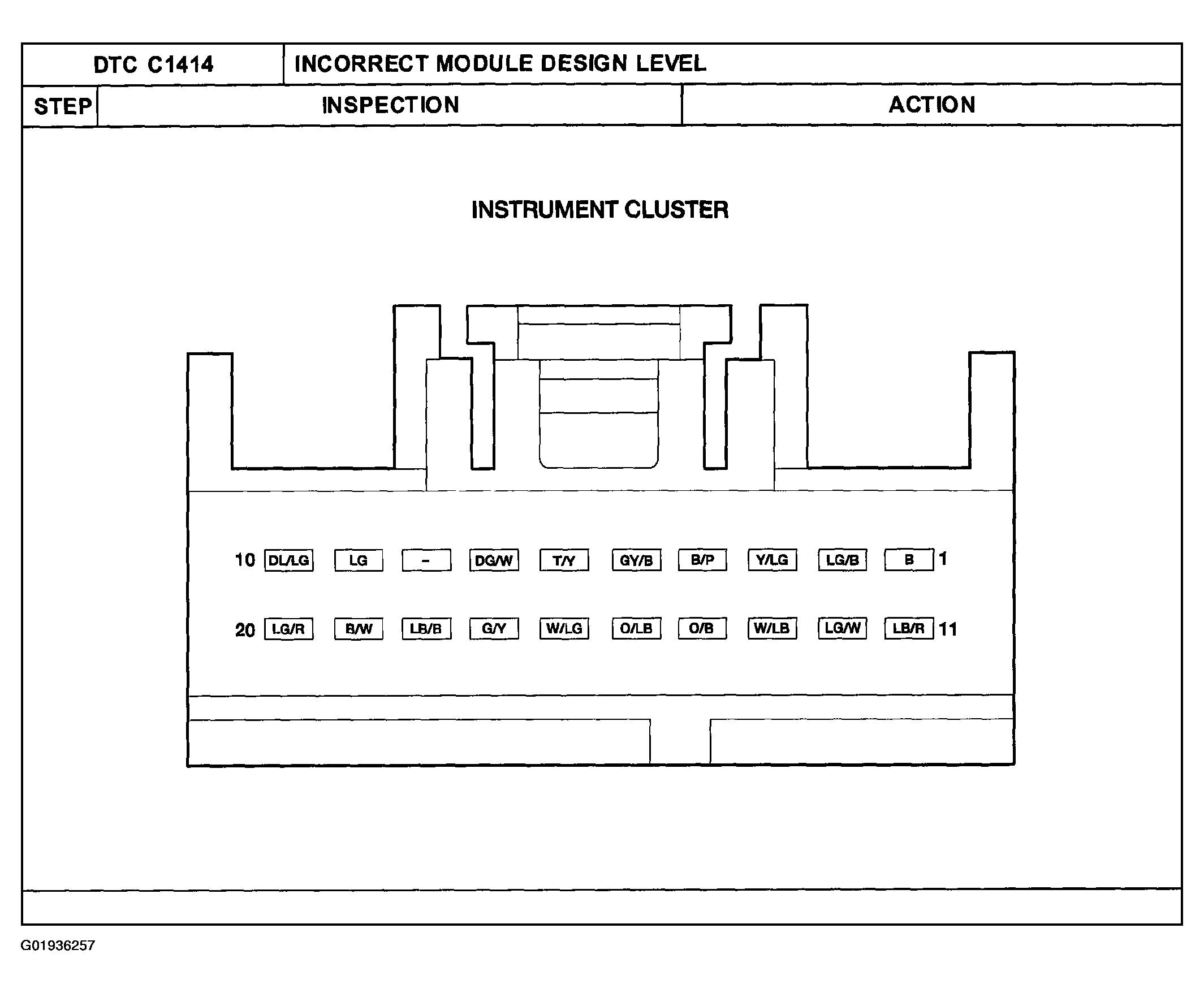

Fig 3: Identifying Instrument Cluster Connector Terminals

Courtesy of MAZDA MOTORS CORP.
