Door Glass Run Retainer, Top Removal/Installation

  1. Remove the door glass; see DOOR GLASS FRONT REMOVAL/INSTALLATION  .
  2. Remove in order shown in figure.
    1. Beltline molding (inside)
    2. Beltline molding (outside)
    3. Bolt
    4. Top door glass run retainer
  3. Install in reverse order of removal.

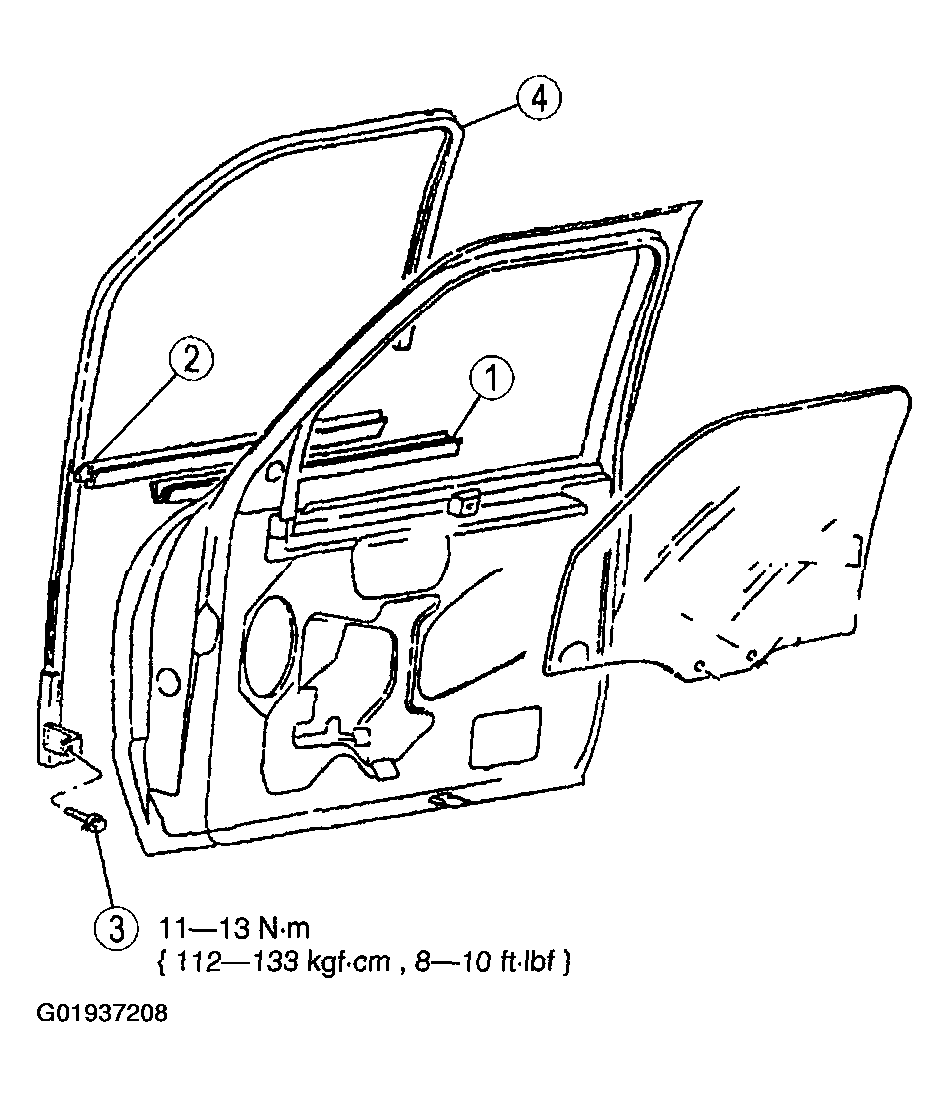

    Fig 1: Removing/Installing Door Glass Run Retainer, Top
    G01937208Courtesy of MAZDA MOTORS CORP.
