Mazda
>>
2004
>>
B2300 Base, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Troubleshooting (Security System And Locks System)
>>
Vehicle Does Not Start
Vehicle Does Not Start

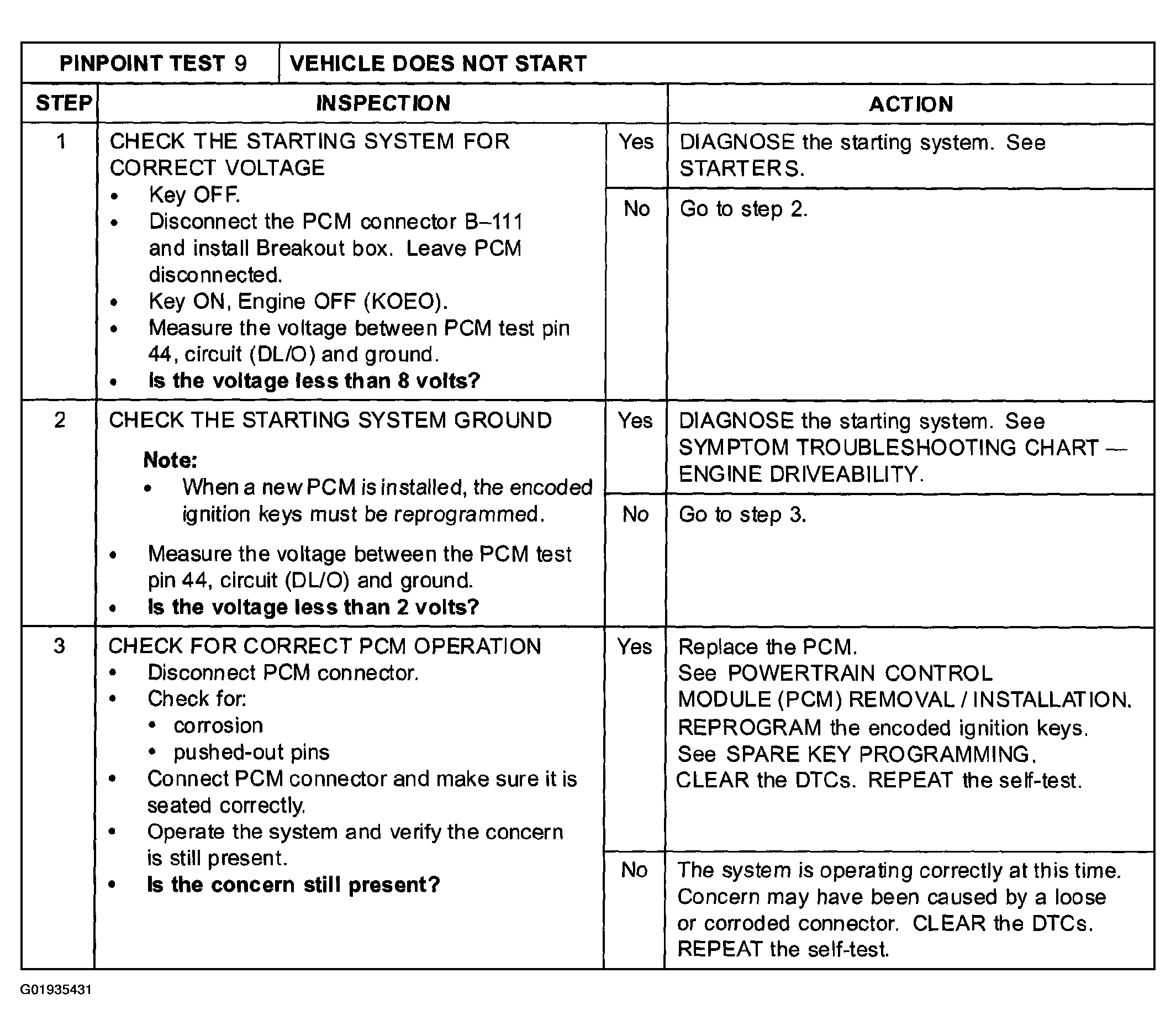

Fig 1: Pinpoint Test 9: Vehicle Does Not Start Inspection Table (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
