Manual Transaxle [Shift Mechanism]
>>
Shift Mechanism Removal/Installation
>>
A65M-R manual transaxle models
A65M-R manual transaxle models

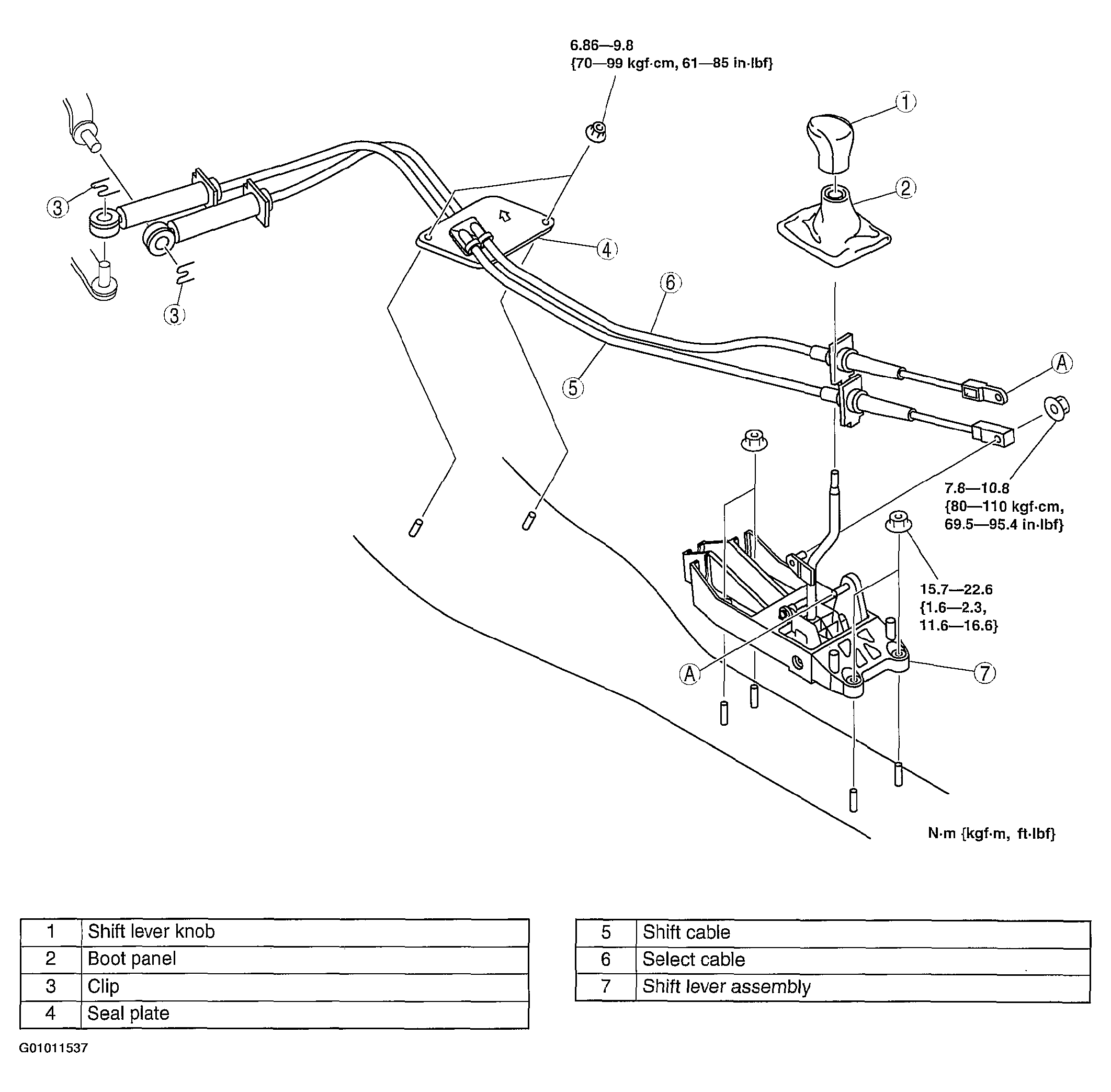

Fig 1: Removing/Installing Shift Mechanism - A65M-R Manual Transaxle Models
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
