Symptom Troubleshooting [Engine Control System (AJ)
>>
Symptom Diagnostic Index
Symptom Diagnostic Index

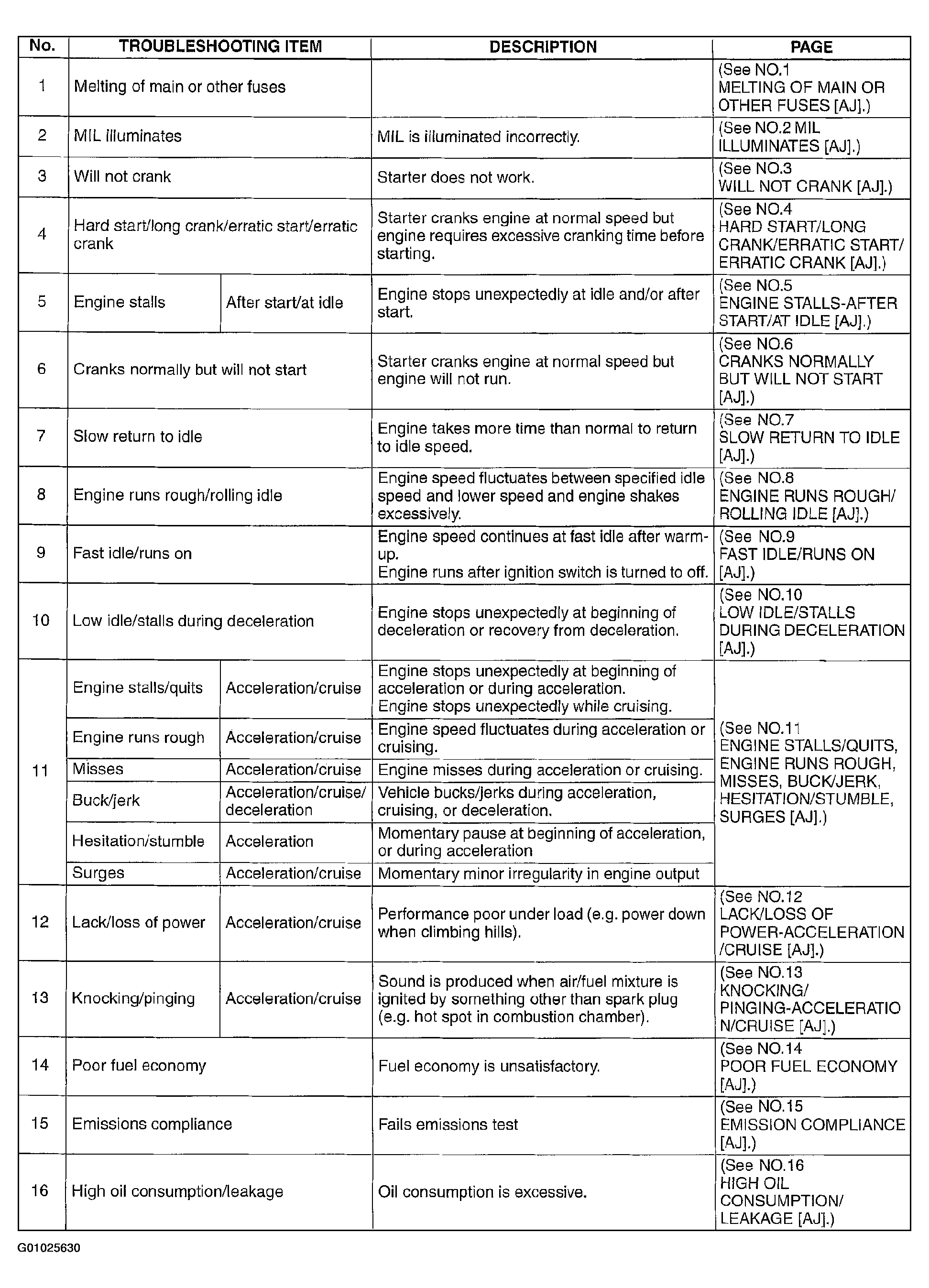

Fig 1: Engine Symptom Troubleshooting - Diagnostic Index (Symptoms 1-16)
Courtesy of MAZDA MOTORS CORP.

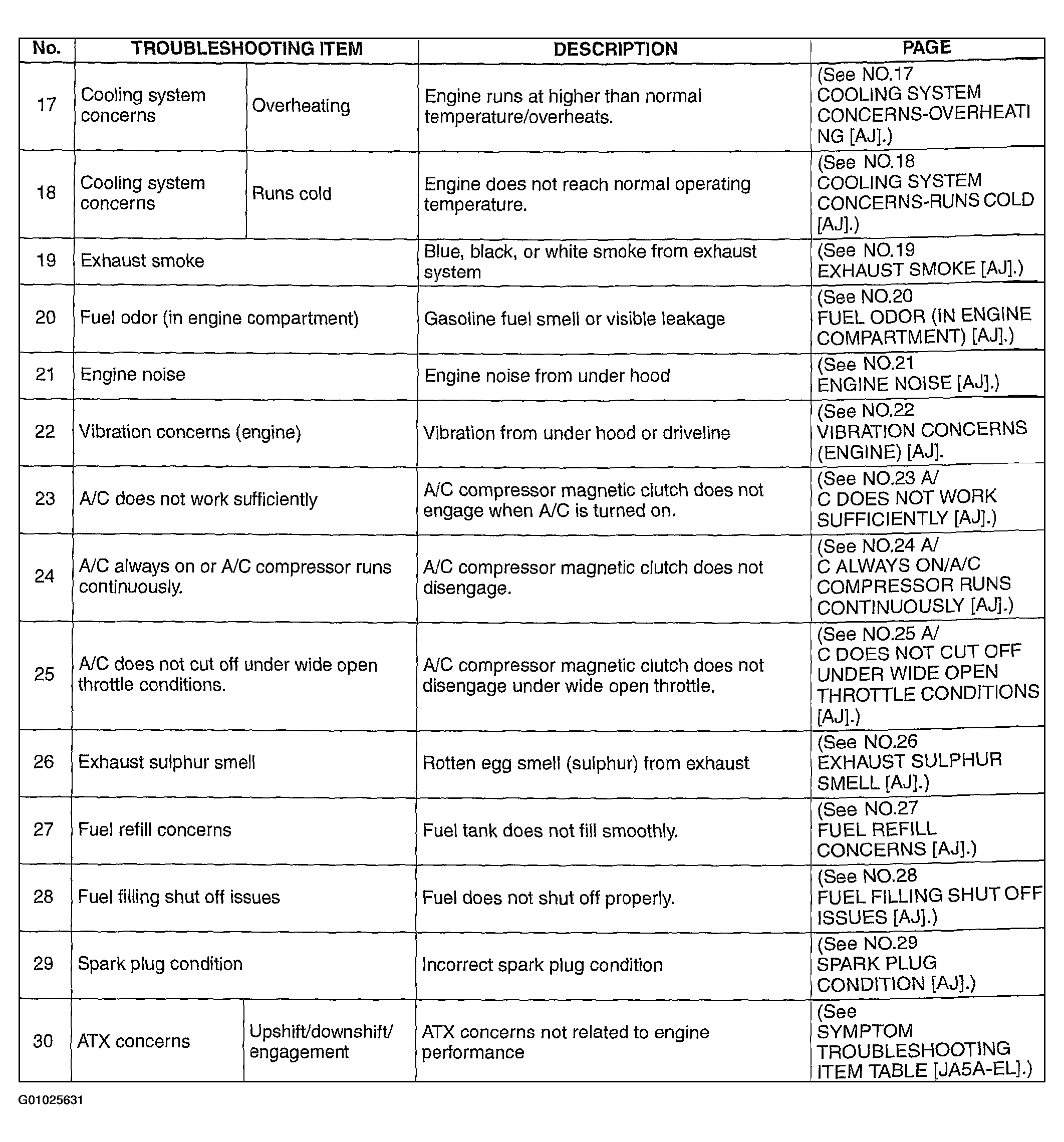

Fig 2: Engine Symptom Troubleshooting - Diagnostic Index (Symptoms 17-30)
Courtesy of MAZDA MOTORS CORP.
