Home >> Mazda >> 2004 >> 6 s, 4D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Symptom Troubleshooting [Engine Control System (AJ) >> No.28 Fuel Filling Shut Off Issues >> Notes

No.28 Fuel Filling Shut Off Issues: Notes

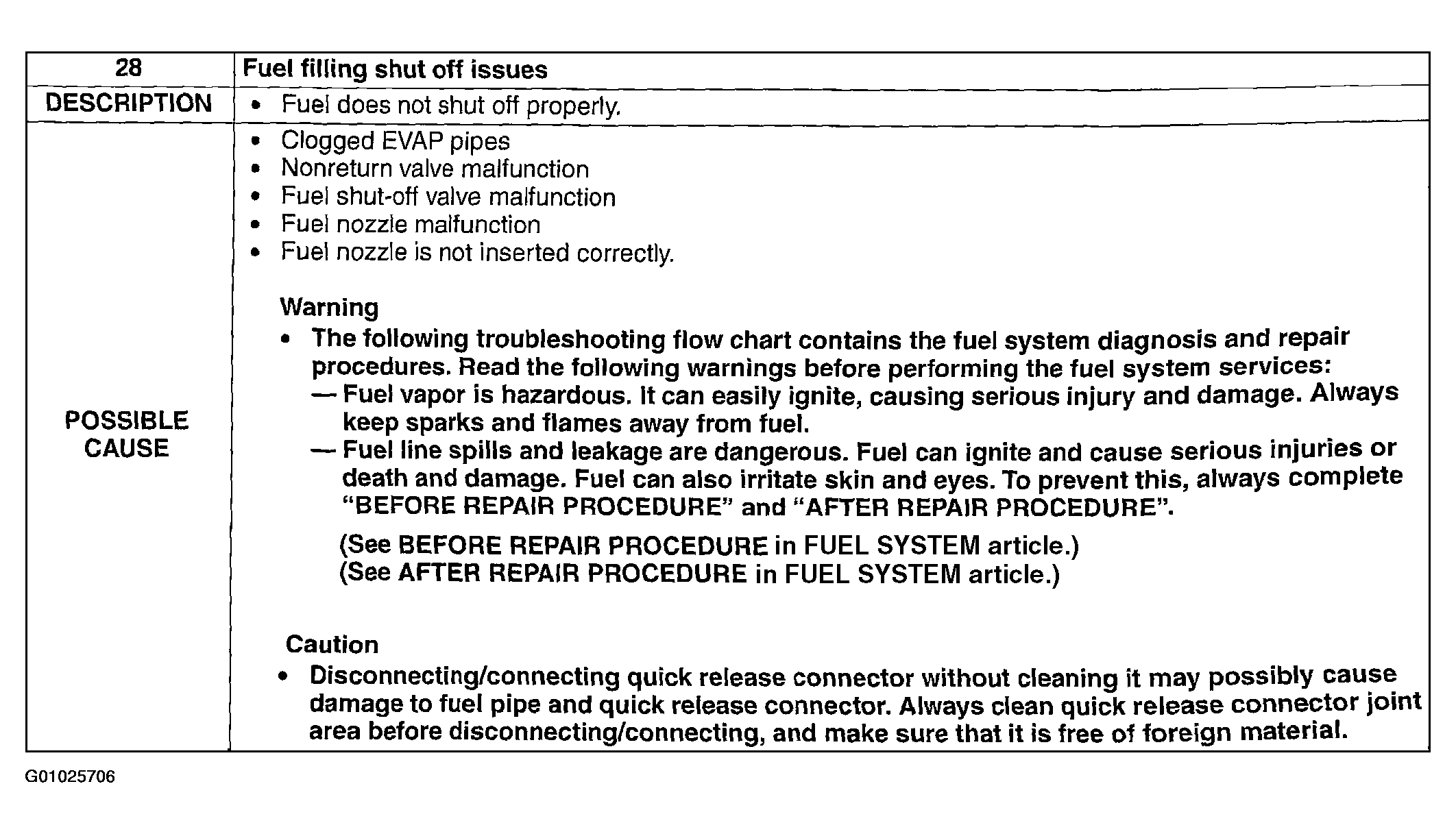

Fig 1: Symptom No.28 Fuel Filling Shut Off Issues - Description & Possible Causes

G01025706

Courtesy of MAZDA MOTORS CORP.
