Home >> Mazda >> 2004 >> 6 s, 4D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System AJ) >> DTC P2504: Battery Overcharge >> Notes

DTC P2504: Battery Overcharge: Notes

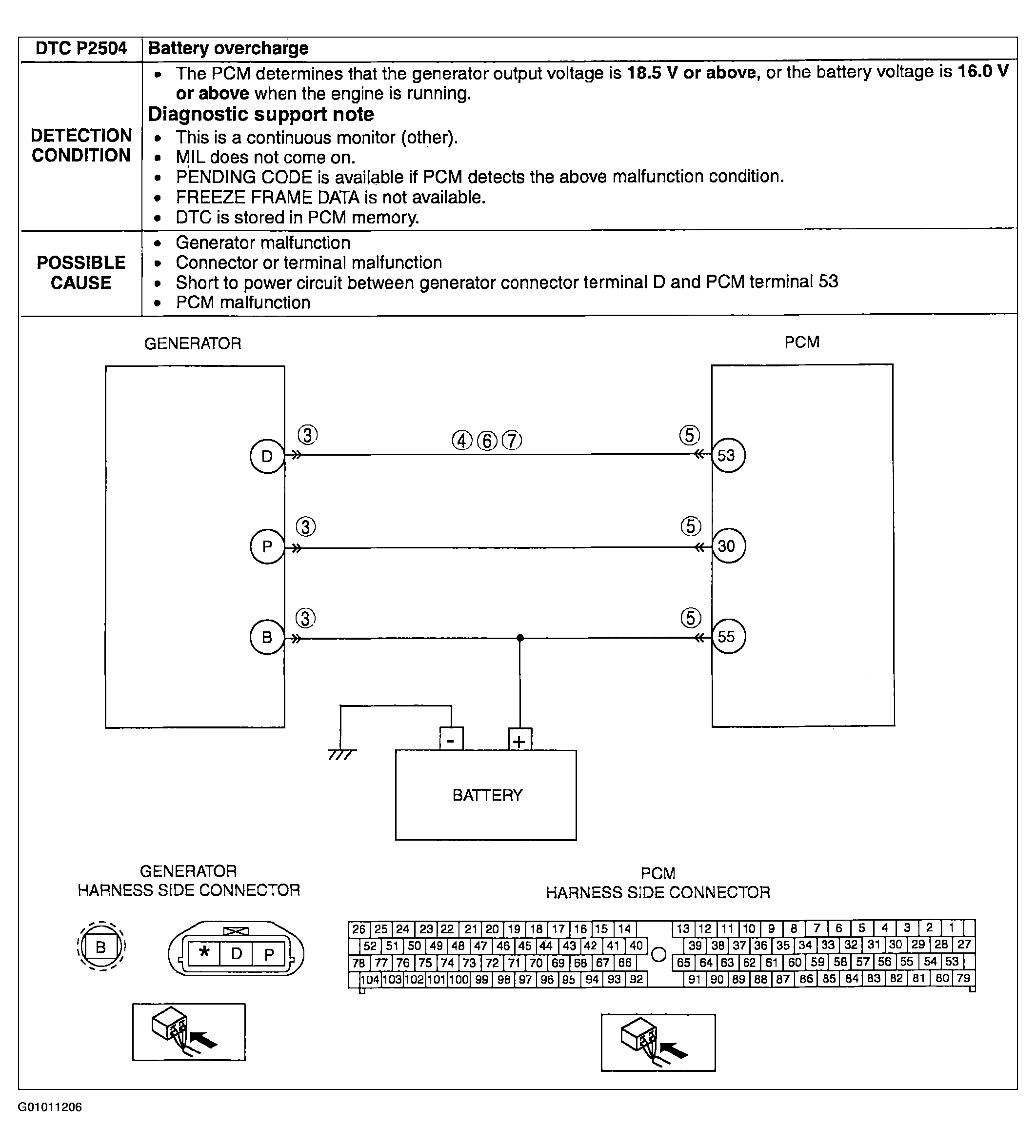

Fig 1: DTC P2504:: Detection Condition & Possible Causes Chart

G01011206

Courtesy of MAZDA MOTORS CORP.
