On-Board Diagnostic [Engine Control System AJ)
>>
DTC P2401: EVAP System Leak Detection Pump Control Circuit Low
>>
Notes
DTC P2401: EVAP System Leak Detection Pump Control Circuit Low: Notes

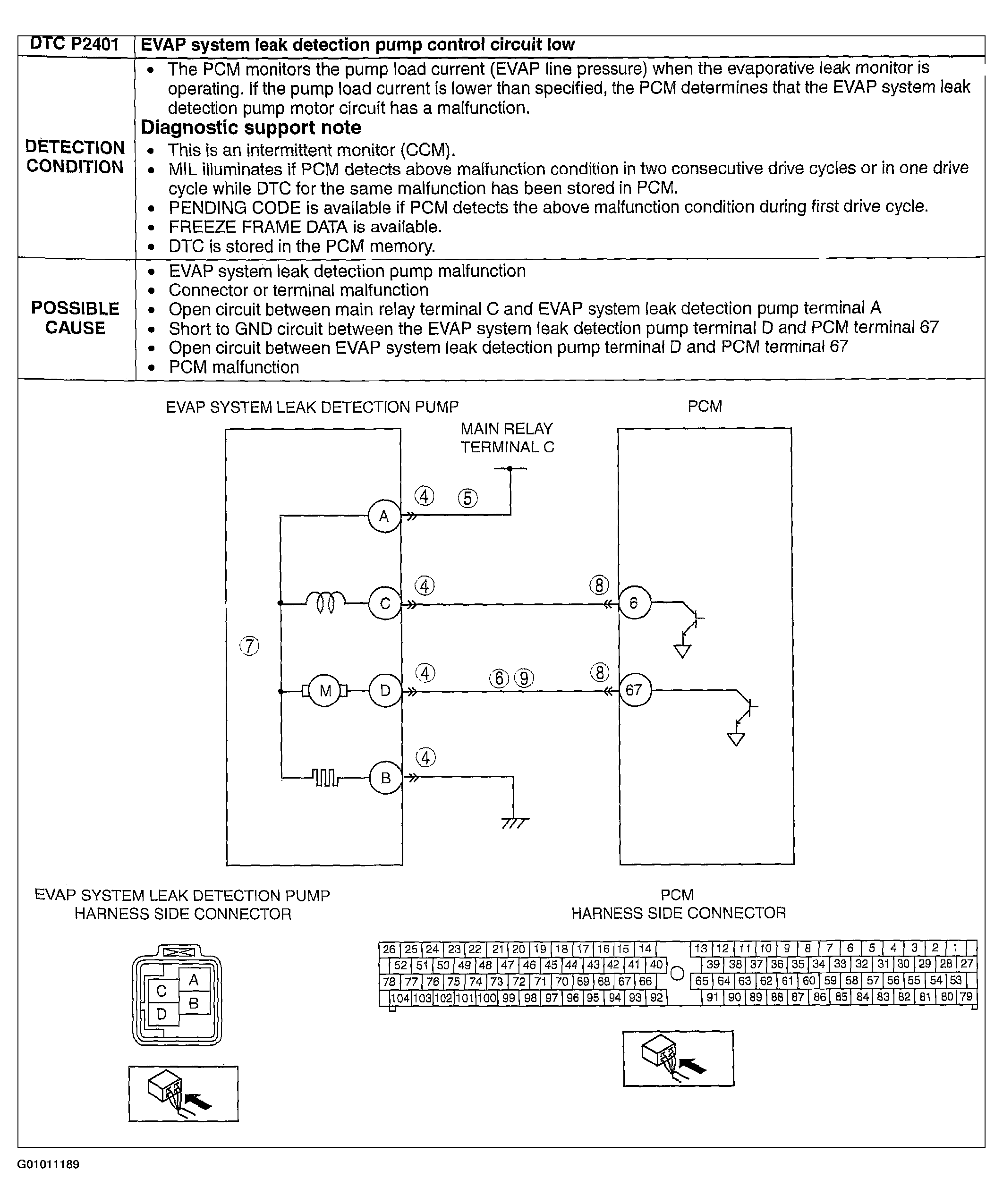

Fig 1: DTC P2401: Detection Condition & Possible Causes Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
