Diagnostic Procedure

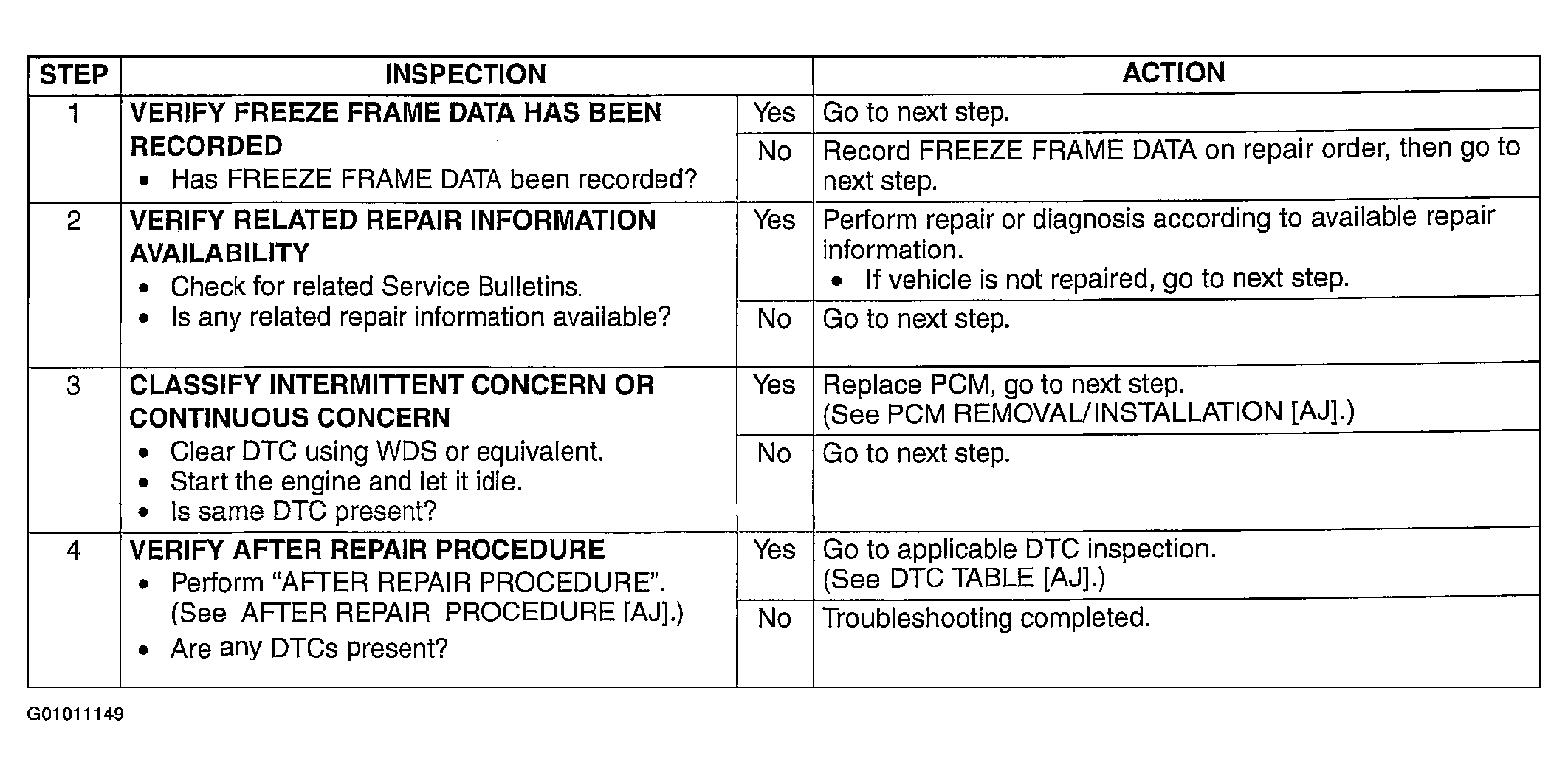

Fig 1: DTC P2107: Diagnostic Procedure Chart
G01011149Courtesy of MAZDA MOTORS CORP.
