DTC P0602: Pcm Programming Error: Notes

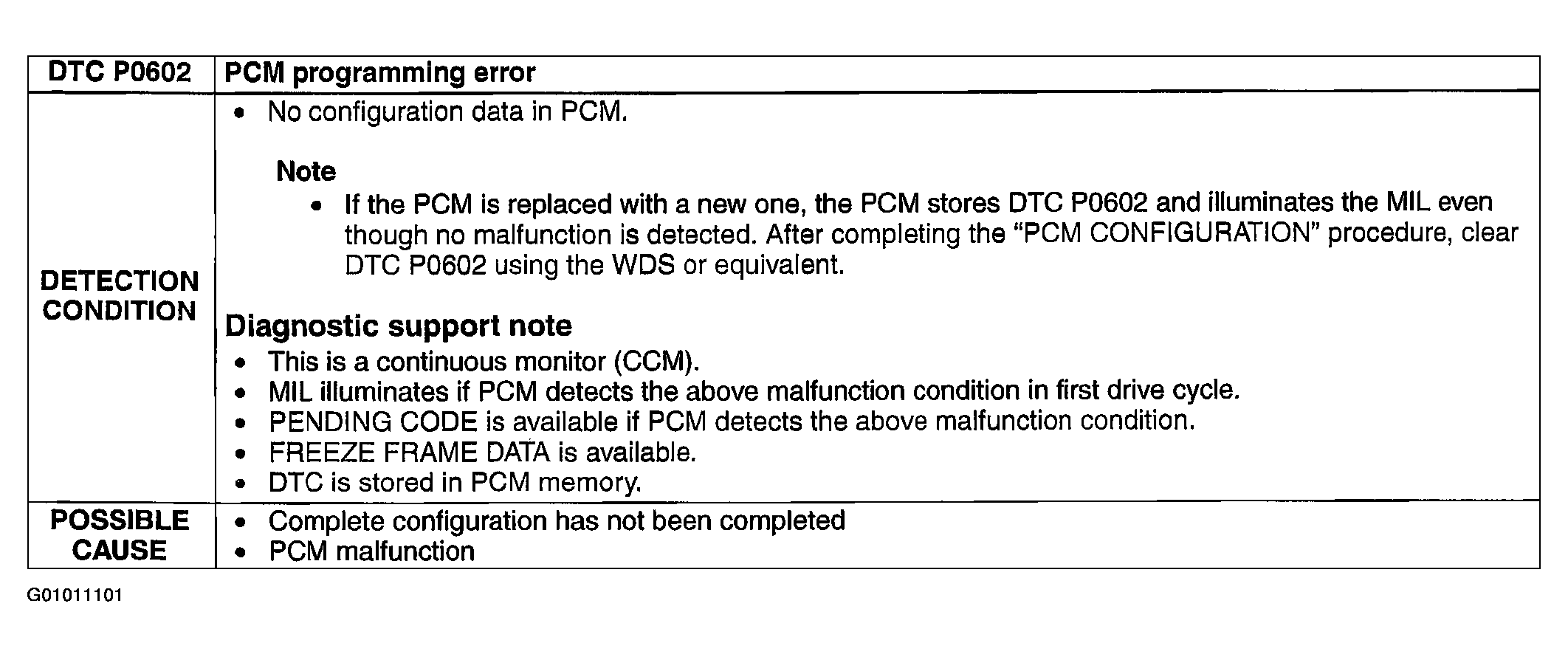

Fig 1: DTC P0602: Detection Condition & Possible Causes Chart

G01011101

Courtesy of MAZDA MOTORS CORP.
