DTC P0564: Cruise Control Switch Circuit Malfunction : Notes

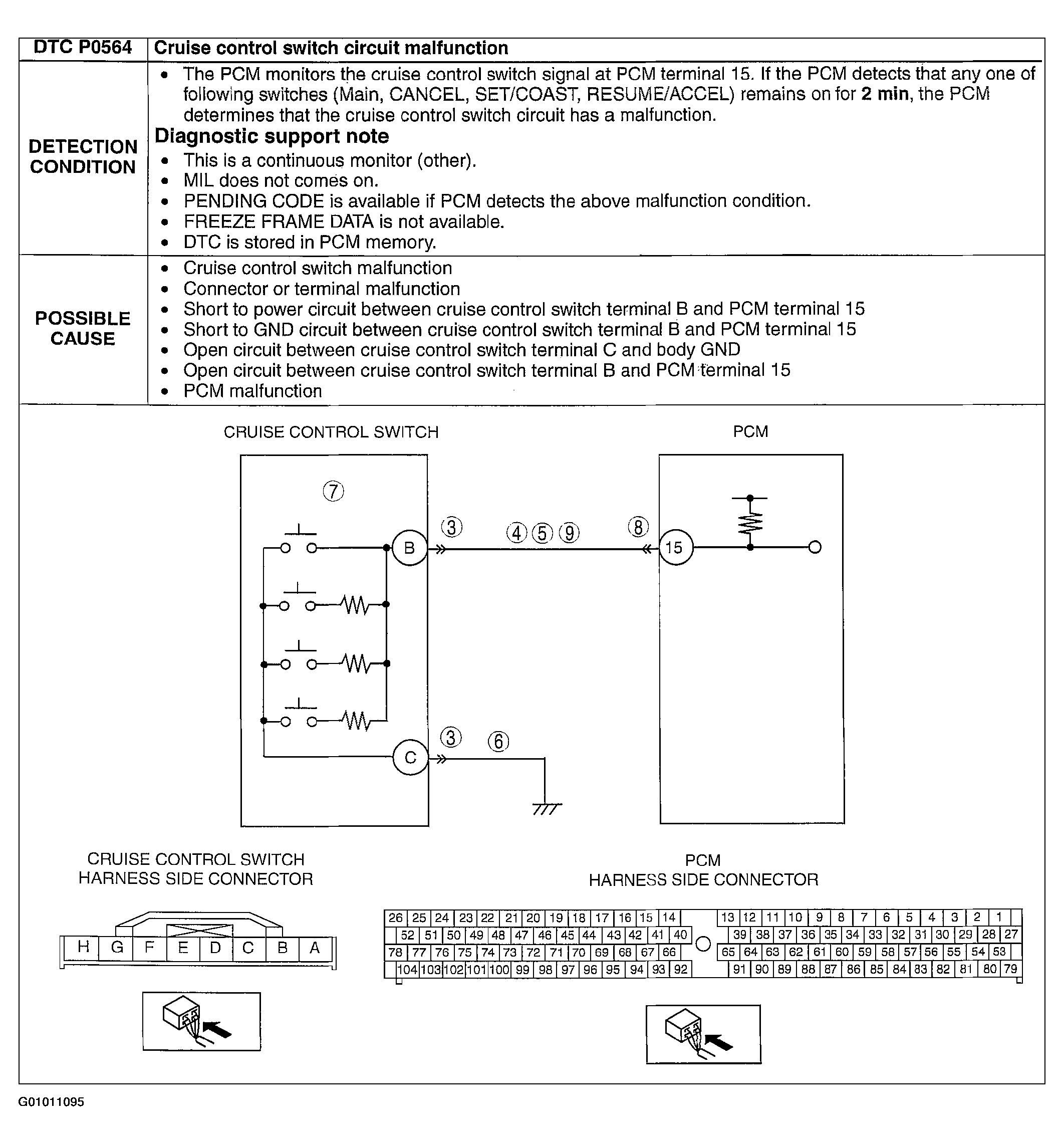

Fig 1: DTC P0564: Detection Condition & Possible Causes Chart

G01011095

Courtesy of MAZDA MOTORS CORP.
