LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mazda
>>
2004
>>
6 s, 4D Hatchback, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
On-Board Diagnostic [Engine Control System AJ)
>>
DTC P0443: EVAP Control System Purge Control Valve Circuit Malfunction
>>
Notes
DTC P0443: EVAP Control System Purge Control Valve Circuit Malfunction: Notes

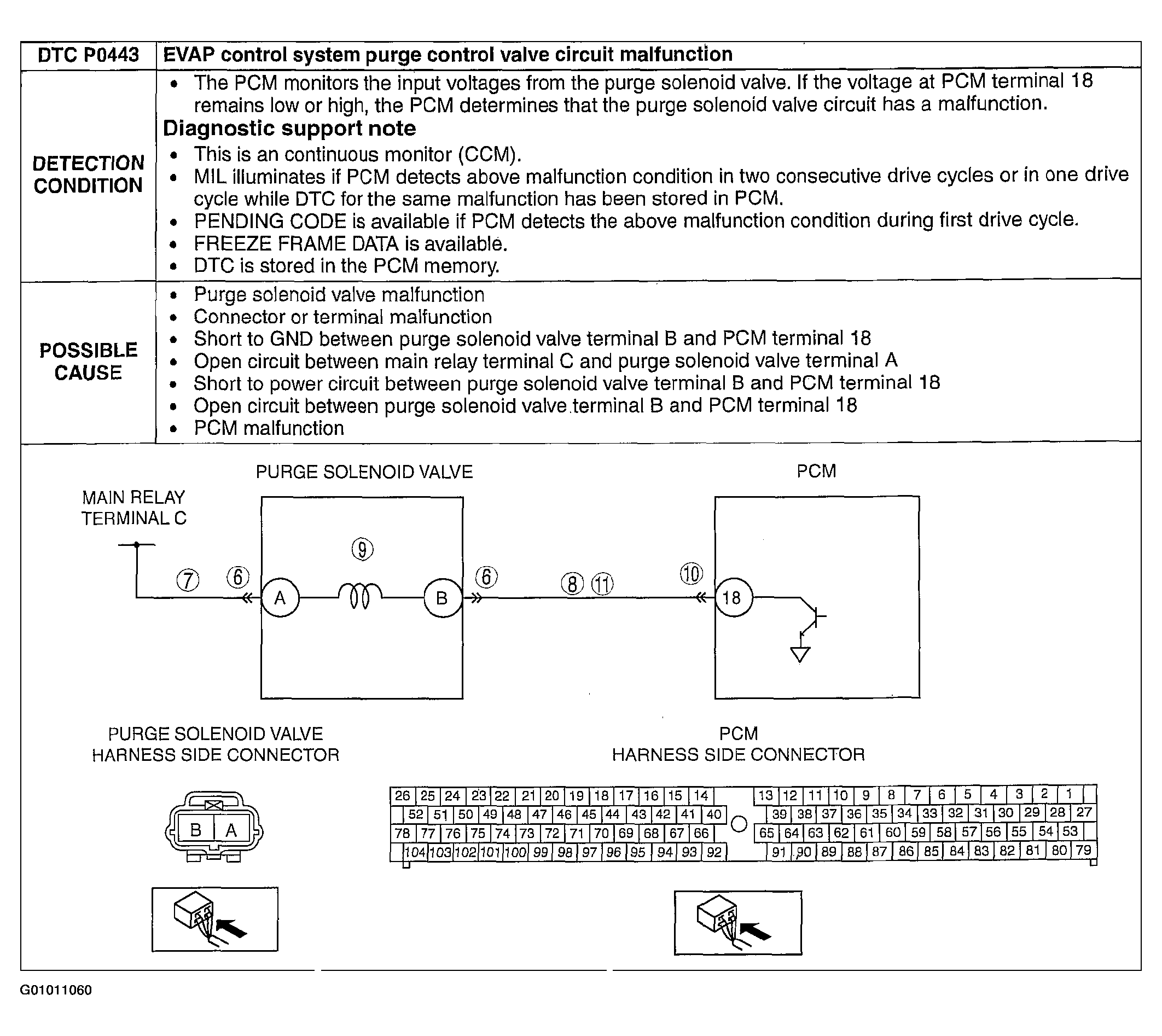

Fig 1: DTC P0443: Detection Condition & Possible Causes Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
