On-Board Diagnostic [Engine Control System AJ)
>>
DTC P0441: EVAP Control System Incorrect Purge Flow
>>
Diagnostic Procedure
Diagnostic Procedure

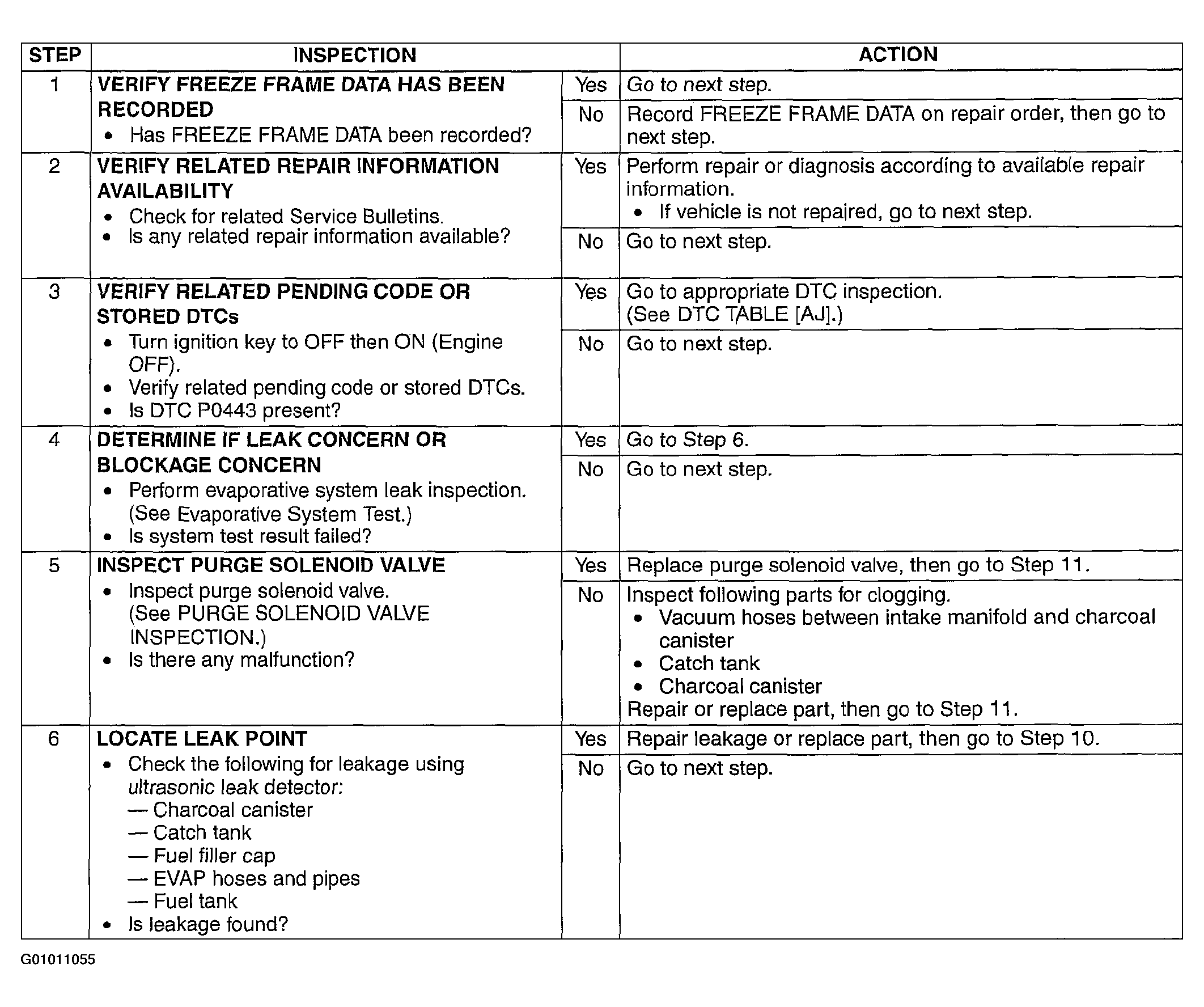

Fig 1: DTC P0441: Diagnostic Procedure Chart (Steps 1-6)
Courtesy of MAZDA MOTORS CORP.

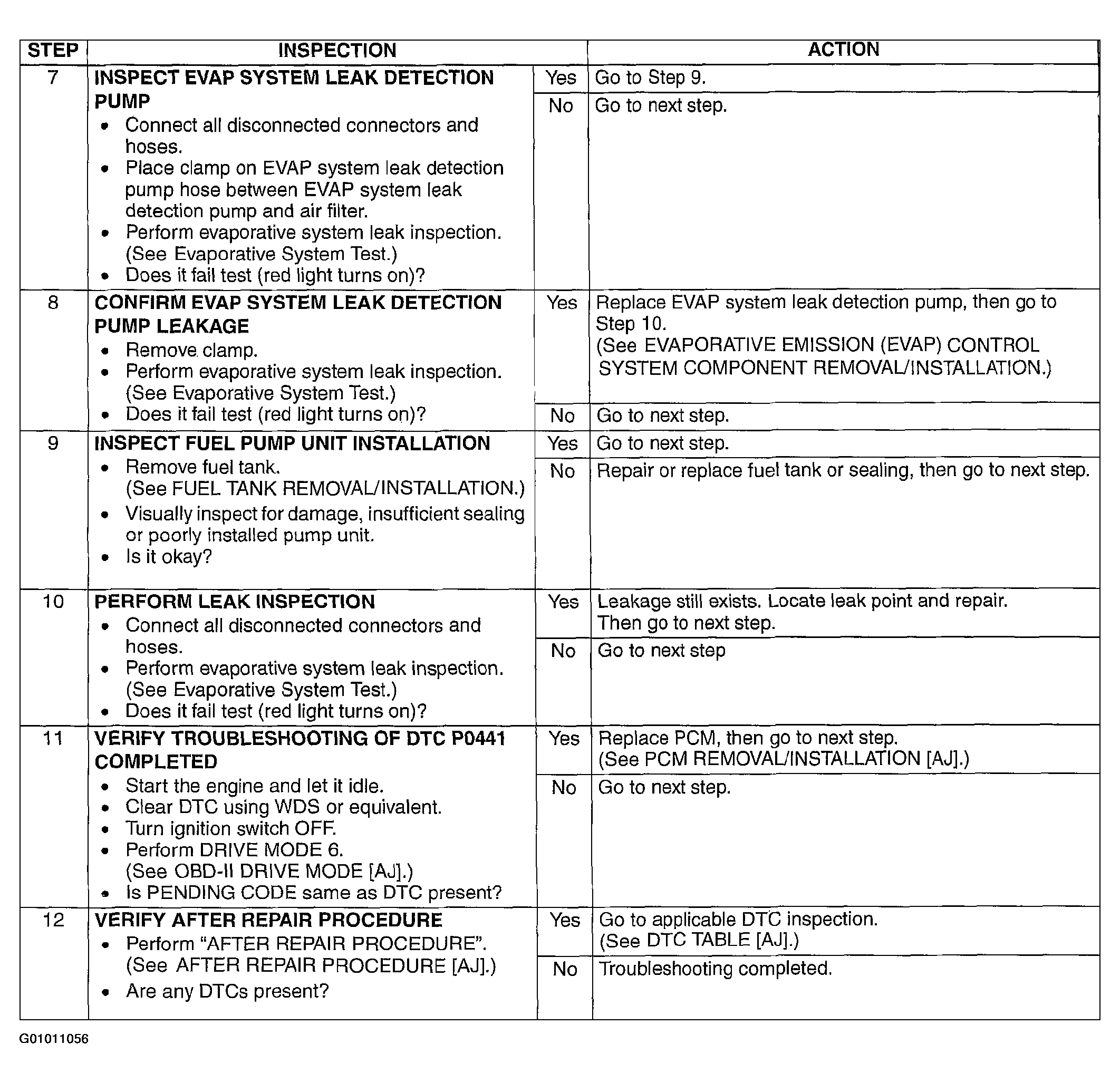

Fig 2: DTC P0441: Diagnostic Procedure Chart (Steps 7-12)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
