DTC P0325: KS Circuit: Notes

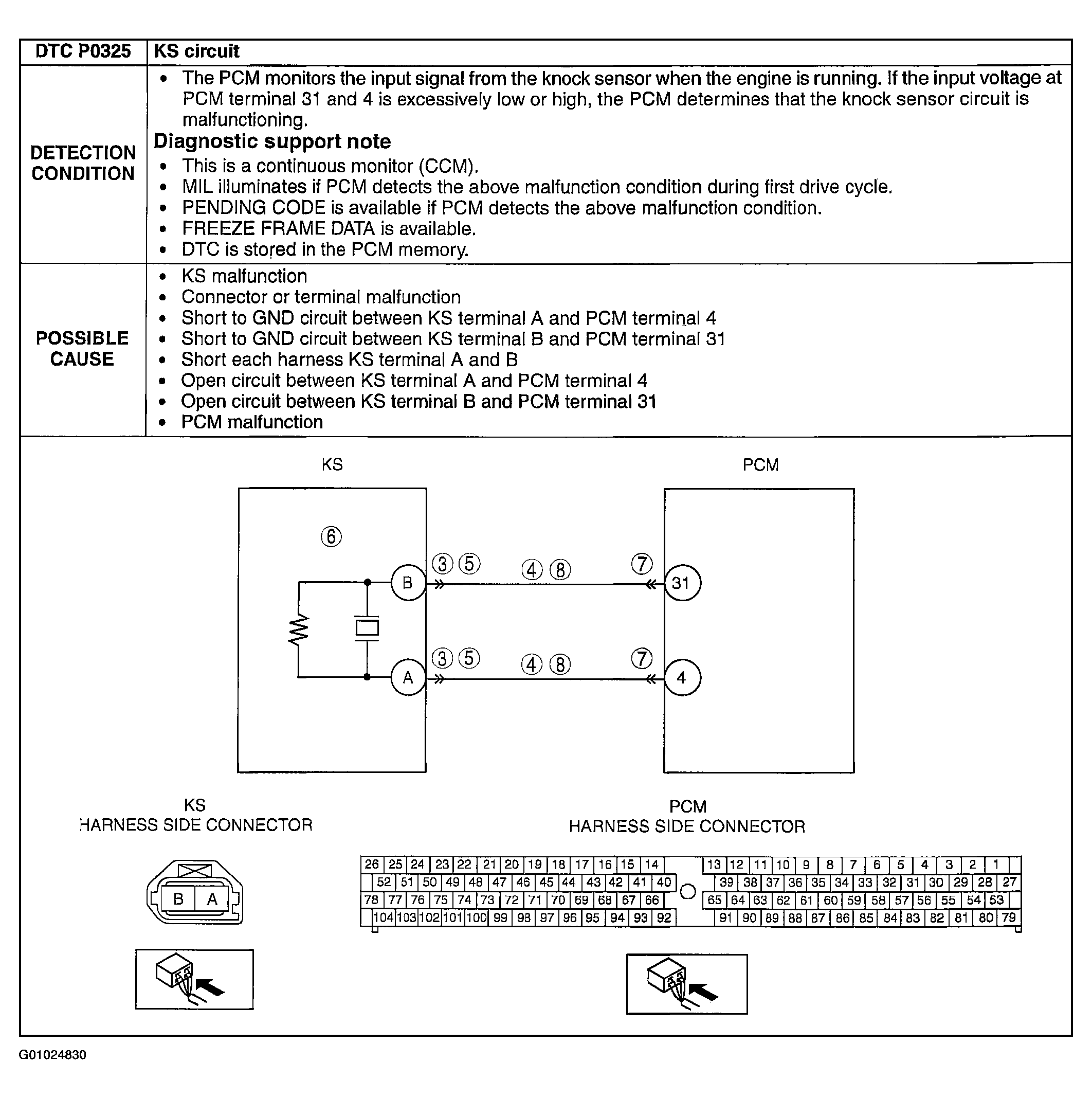

Fig 1: DTC P0325: Detection Condition & Possible Causes Chart

G01024830

Courtesy of MAZDA MOTORS CORP.
