DTC P0111: IAT Circuit Performance Problem: Notes

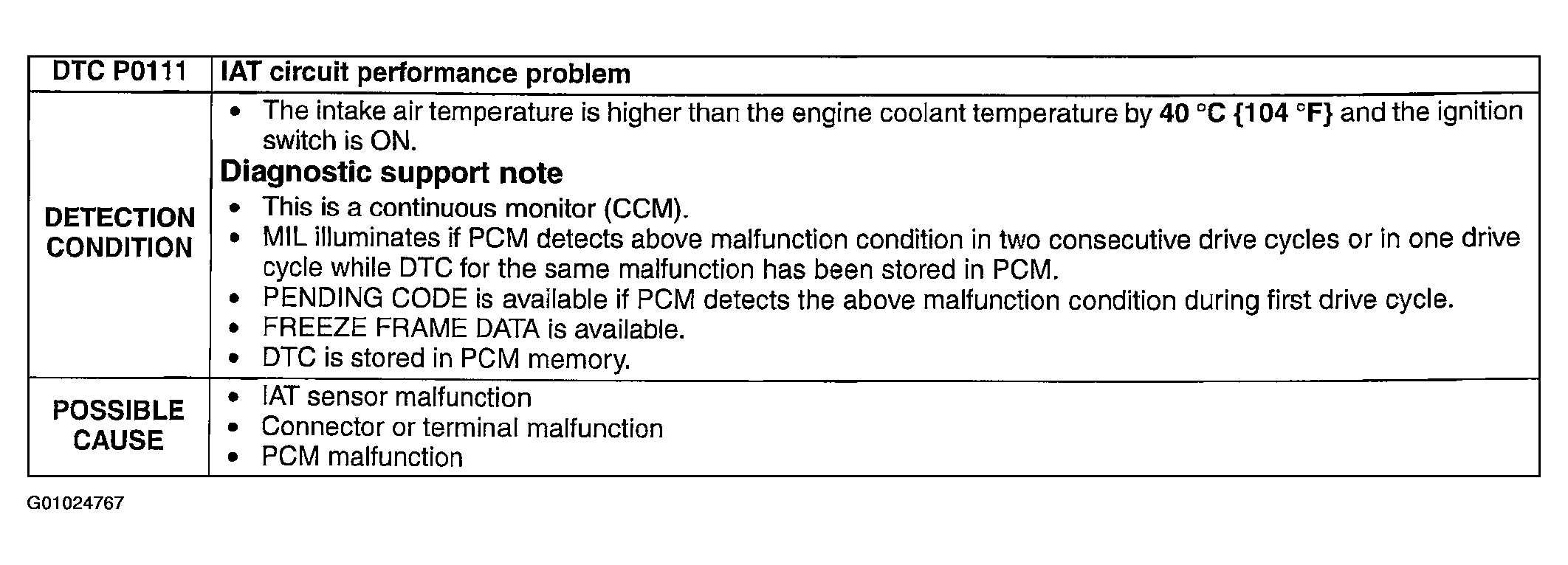

Fig 1: DTC P0111: Detection Condition & Possible Causes Chart

G01024767

Courtesy of MAZDA MOTORS CORP.
