On-Board Diagnostic [Engine Control System AJ)
>>
DTC P0101: MAF Sensor Inconsistent With TP Sensor
>>
Diagnostic Procedure
Diagnostic Procedure

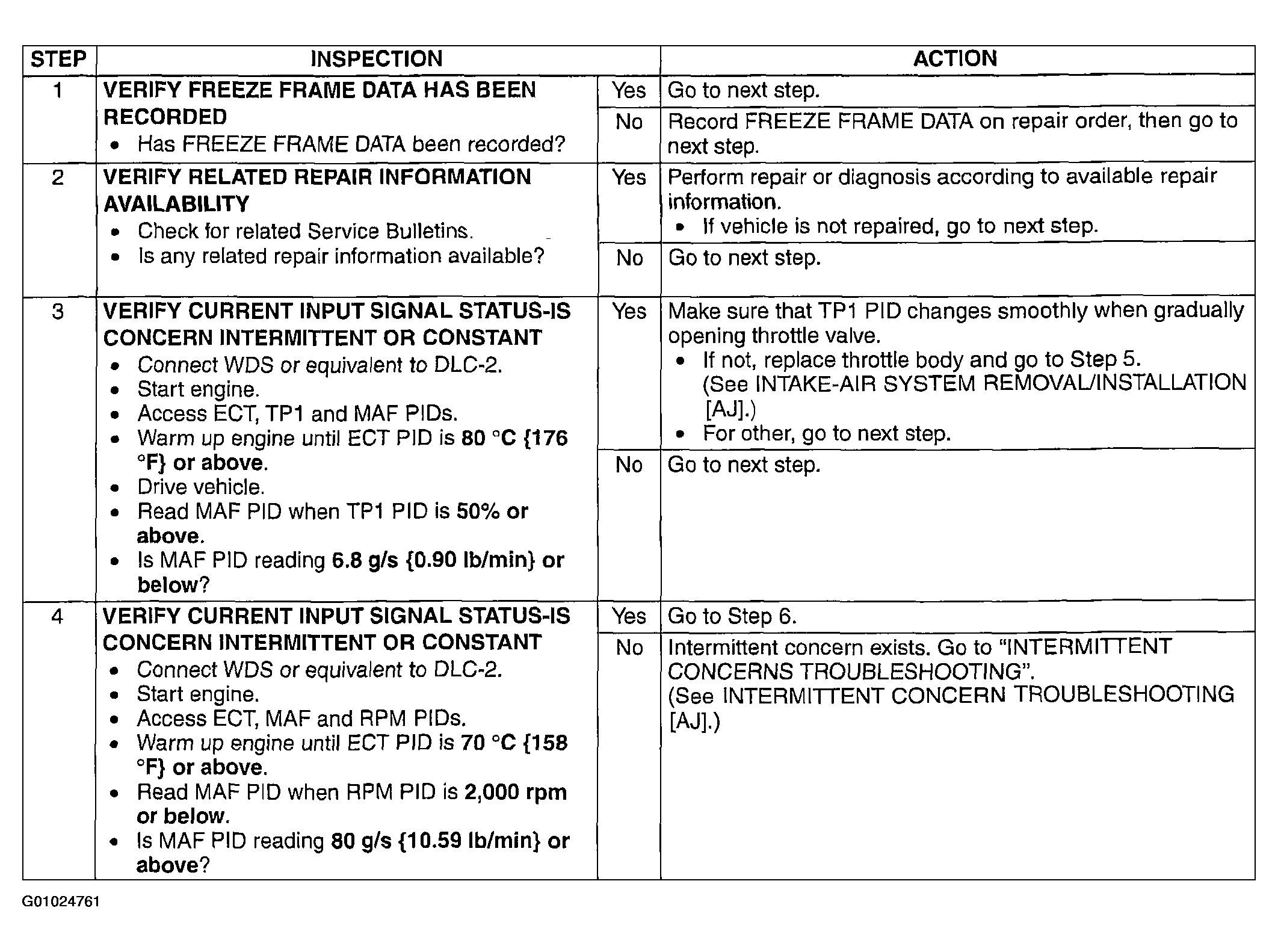

Fig 1: DTC P0101: Diagnostic Procedure Chart (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.

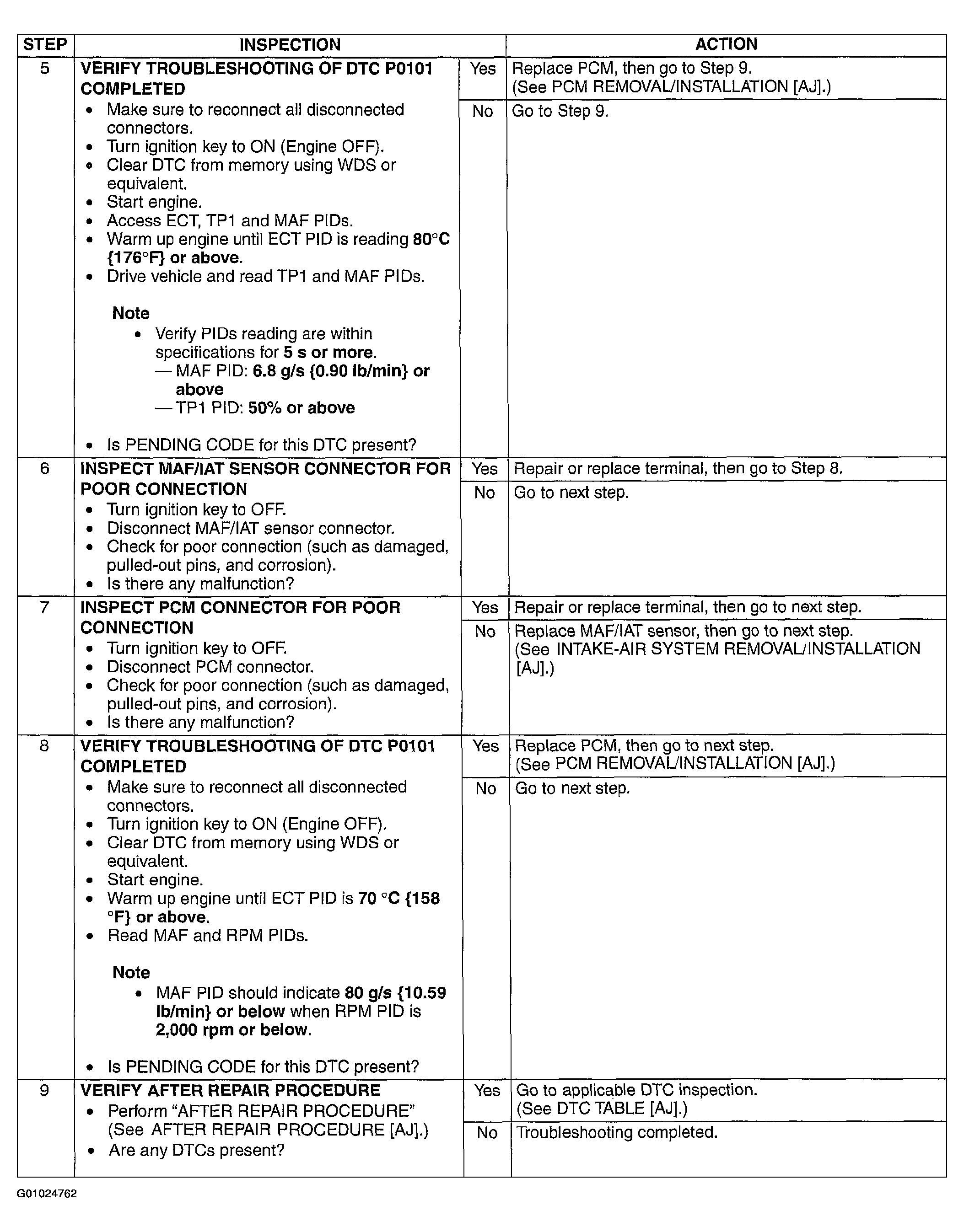

Fig 2: DTC P0101: Diagnostic Procedure Chart (Steps 5-9)
Courtesy of MAZDA MOTORS CORP.
