6 s, 4D Hatchback, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System (AJ)
>>
Pcm Inspection
>>
Inspection Using An Oscilloscope (Reference)
>>
Fan Control Signal
>>
Vehicle Condition
Vehicle Condition
Idle after warm up (no load)

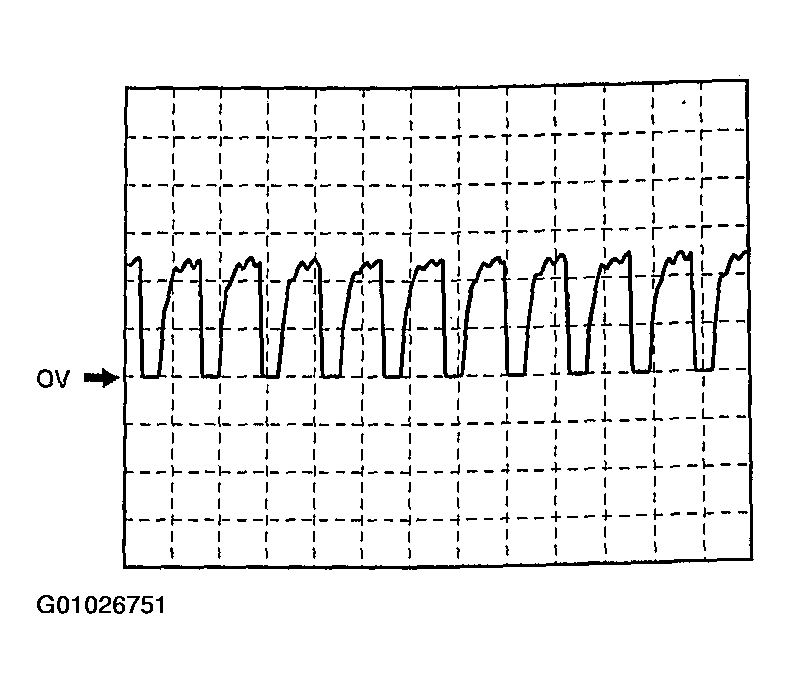

Fig 1: Inspecting Fan Control Signal Using Oscilloscope
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
