Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION .)
  2. Inspect the following harness for open or short circuit. (Continuity check)

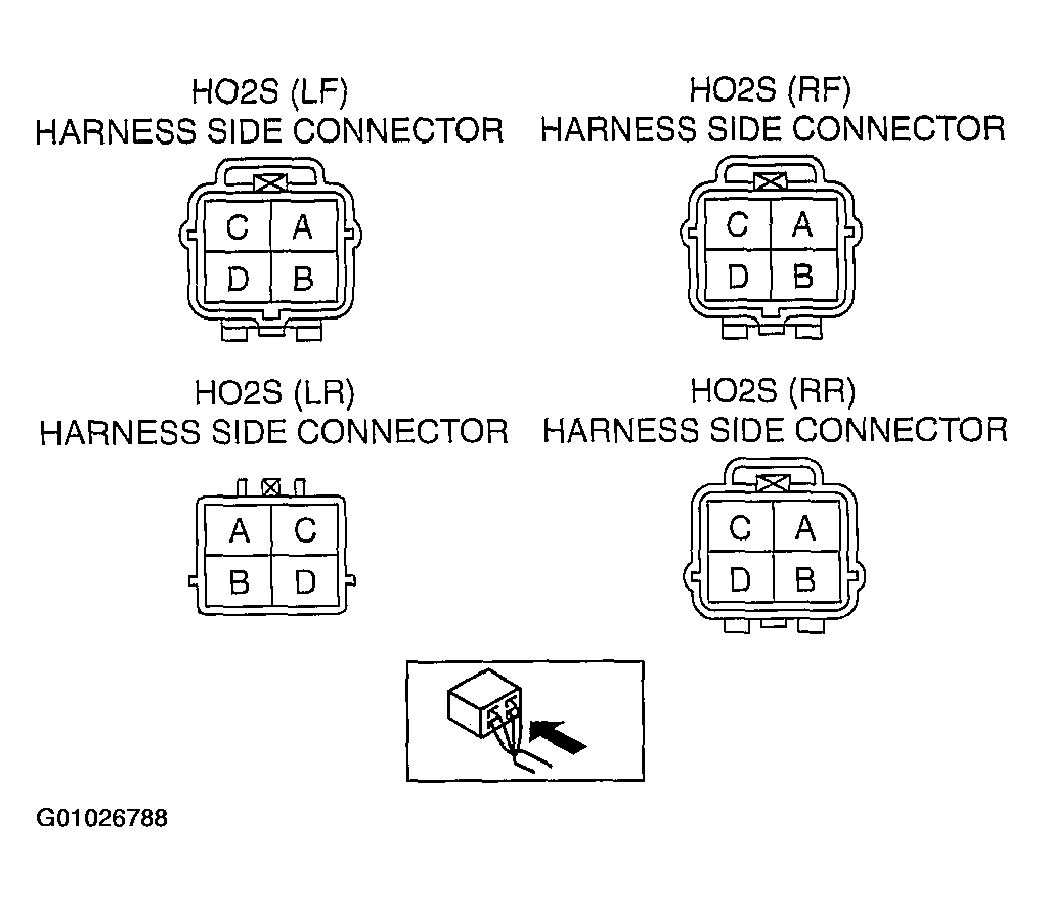

Fig 1: HO2S Harness Side Connector Views & Terminal Identification (All Connectors)
G01026788Courtesy of MAZDA MOTORS CORP.
