Engine SST

  1. Mazda SST number
  2. Global SST number

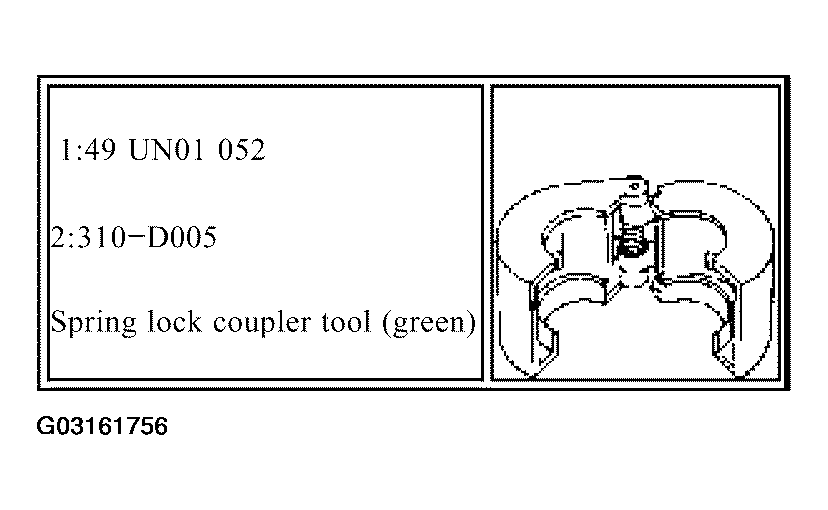

    Fig 1: Identifying Spring Lock Coupler Tool (Green)
    G03161756Courtesy of MAZDA MOTORS CORP.

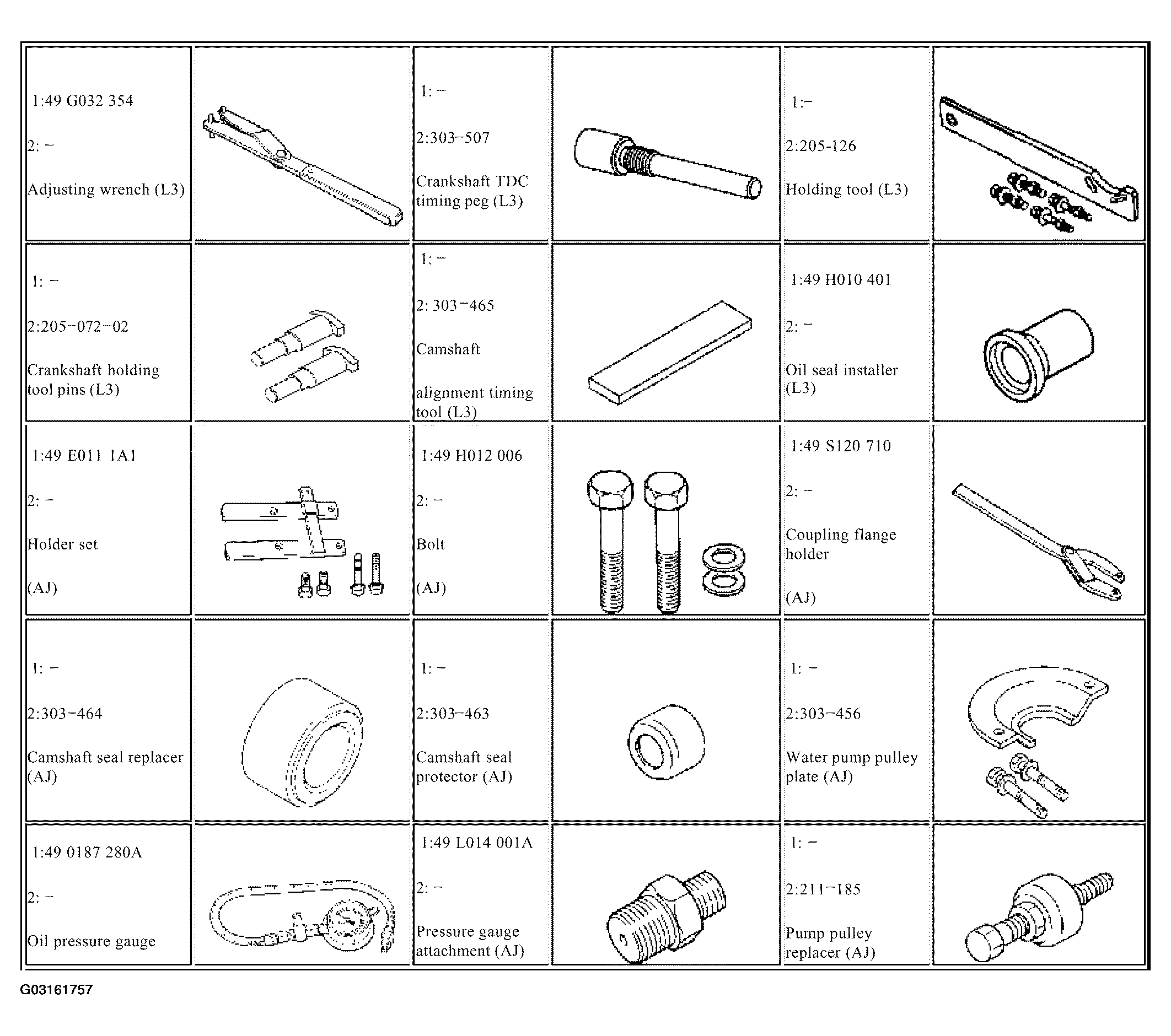

    Fig 2: Special Service Tools Description Chart (1 Of 2)
    G03161757Courtesy of MAZDA MOTORS CORP.

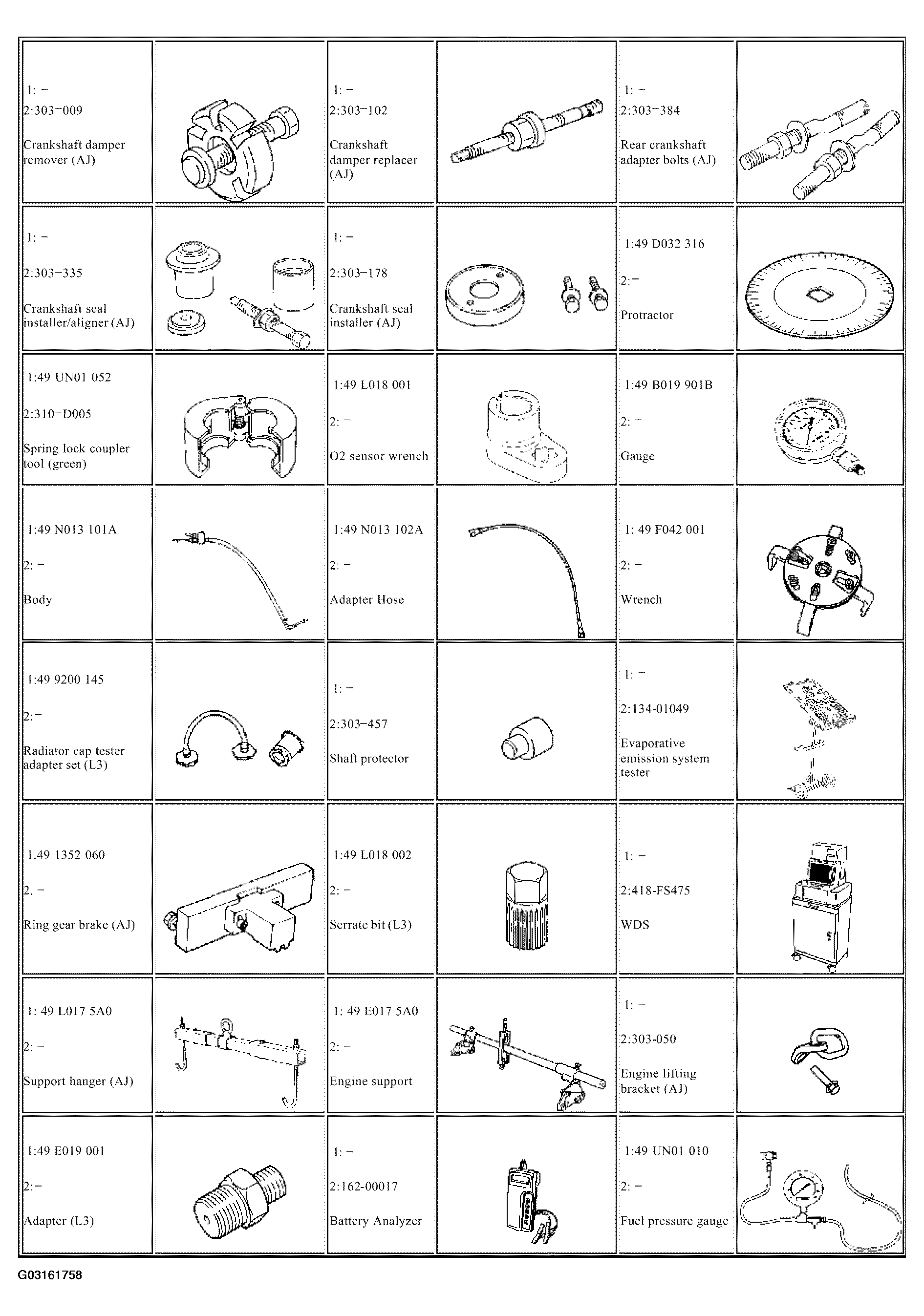

    Fig 3: Special Service Tools Description Chart (2 Of 2)
    G03161758Courtesy of MAZDA MOTORS CORP.
