Woofer Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the rear package trim.
  3. Remove in the order indicated in the figure.

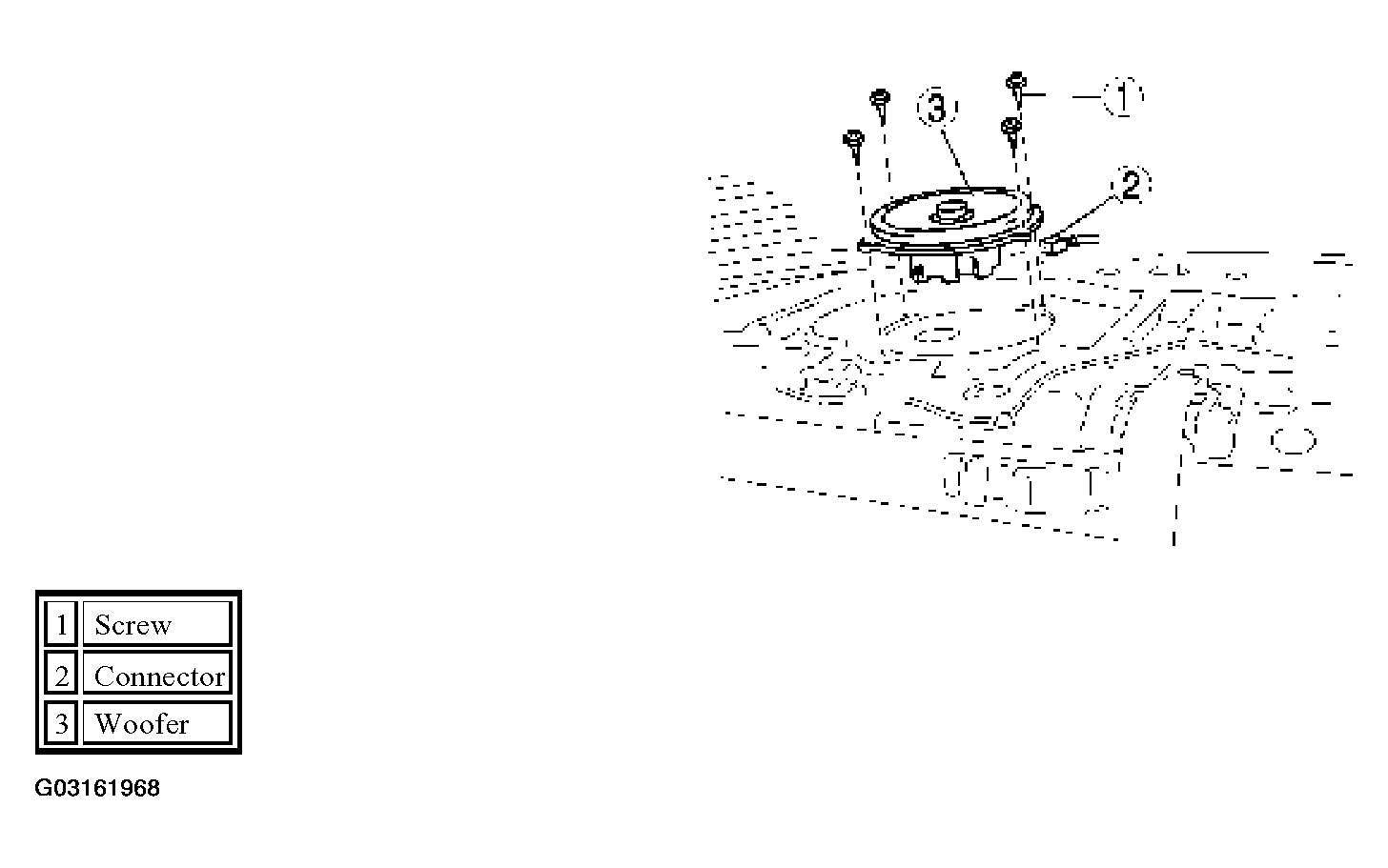

    Fig 1: Woofer Removal Sequence
    G03161968Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
