Tweeter Inspection
- To verify the front door speaker outputs sound.
- If it does output sound, then go to the next step.
- If it does not output sound, inspect the front door speaker and related wiring harnesses.
(See FRONT DOOR SPEAKER INSPECTION .)
- Remove the center panel module. (See CENTER PANEL MODULE REMOVAL/INSTALLATION .)

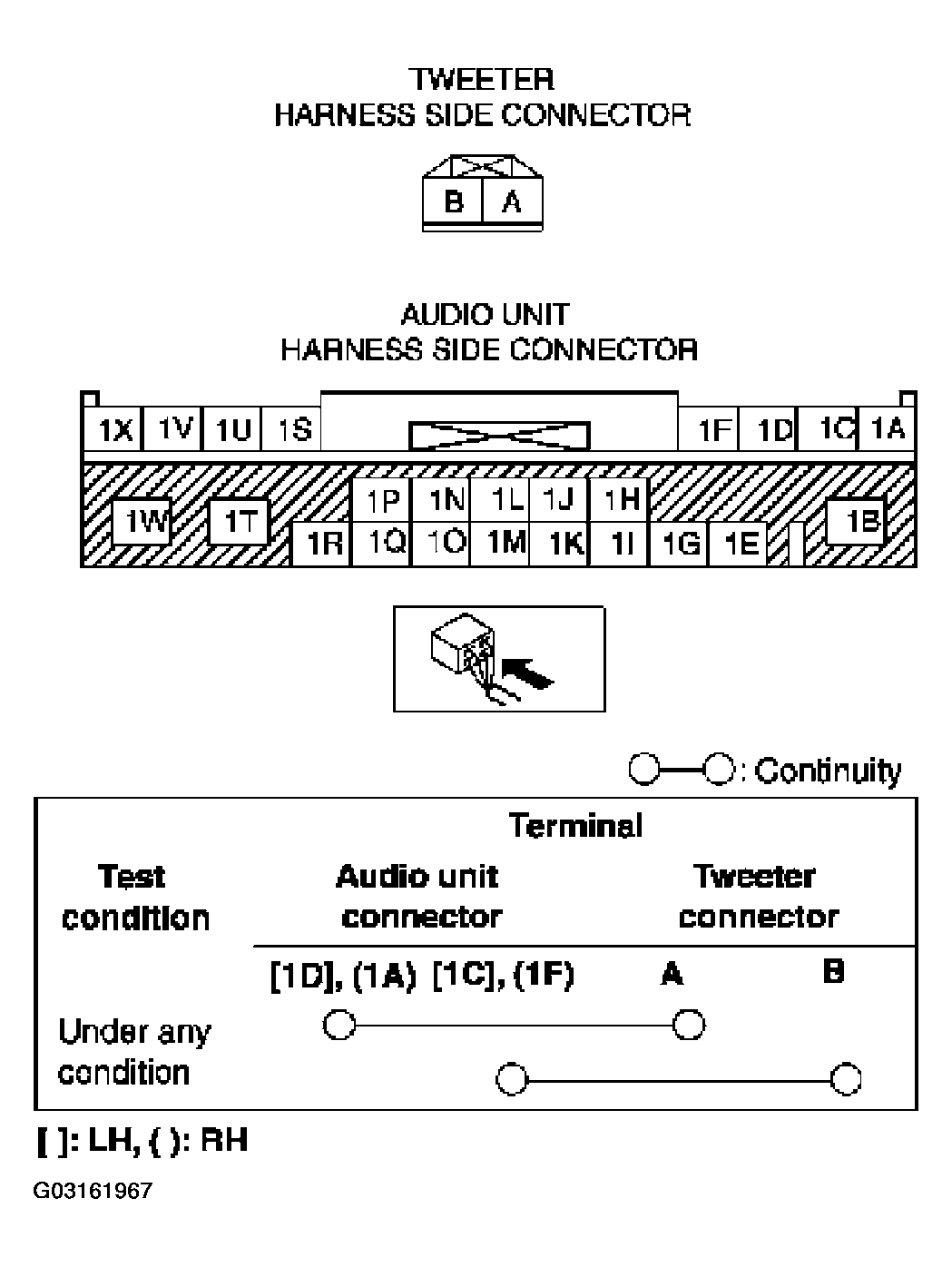

- Inspect for continuity between the tweeter connector terminals and audio unit connector terminals using an ohmmeter.
- If there is no continuity, replace the related wiring harnesses.
- If there is continuity, replace the tweeter.
