Front Door Speaker Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the front door trim.
  3. Remove in the order indicated in the table.

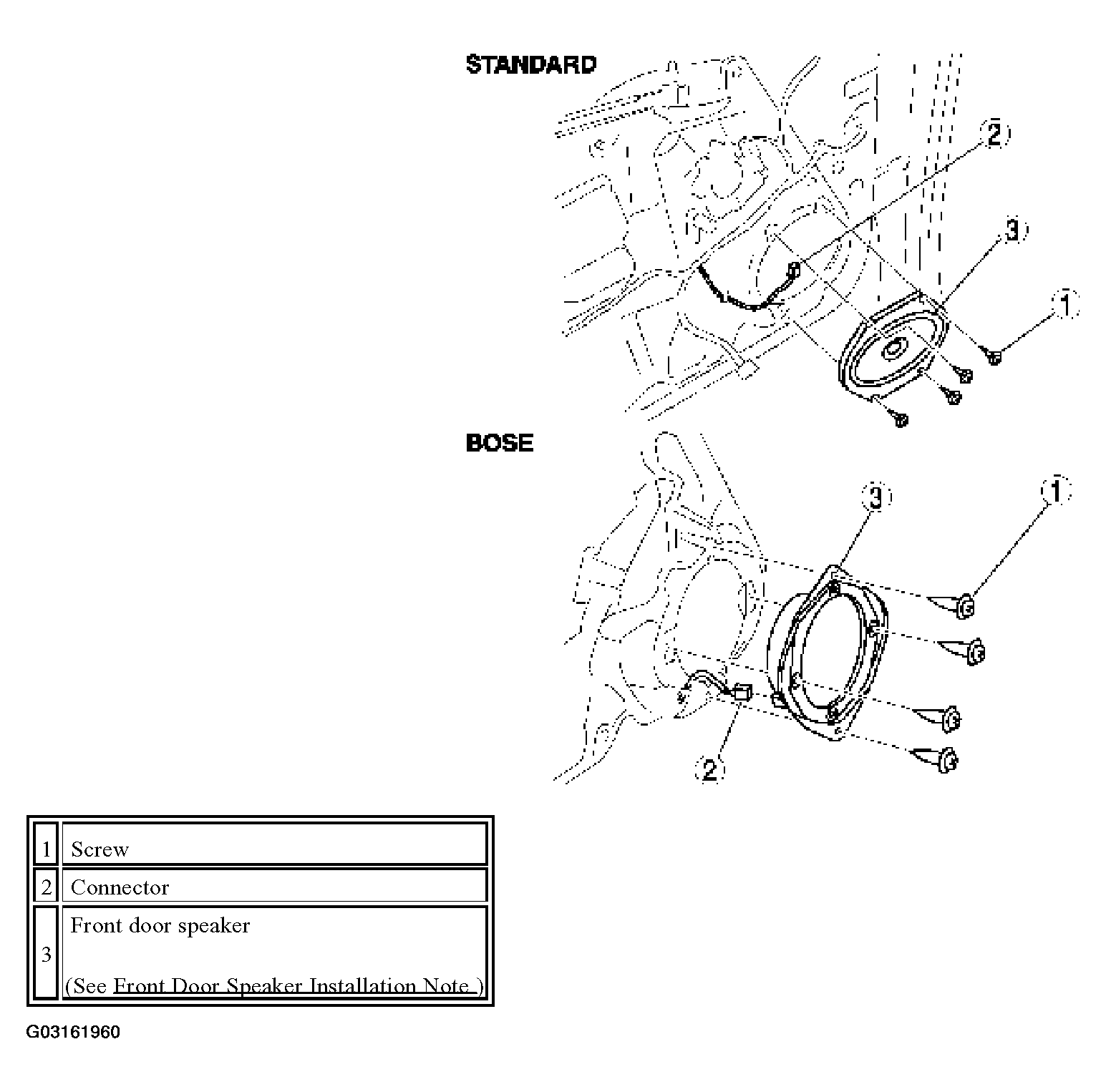

    Fig 1: Front Door Speaker Removal Sequence
    G03161960Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
