Accessory Socket Inspection

  1. Remove the accessory socket. (See ACCESSORY SOCKET REMOVAL/INSTALLATION  .)
  2. Inspect for continuity between the accessory socket terminals B and C using an ohmmeter as shown in the figure.
    • If not as specified, replace the accessory socket.

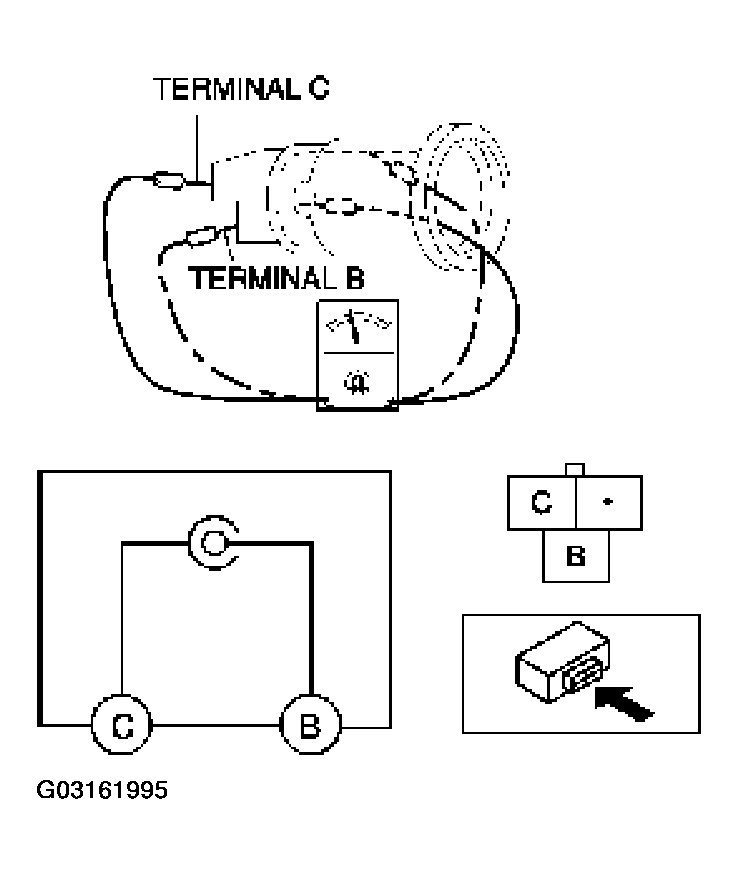

    Fig 1: Inspecting Continuity Between Accessory Socket Terminals B And C
    G03161995Courtesy of MAZDA MOTORS CORP.
