Interlock Cable Installation Note

Install the interlock cable as shown in Fig 1.
CAUTION:
- Position the sponge protector so that it is not crushed or squeezed by the SAS control module.
- If the interlock and selector cables cross over each other, position the interlock cable to pass over the selector cable.

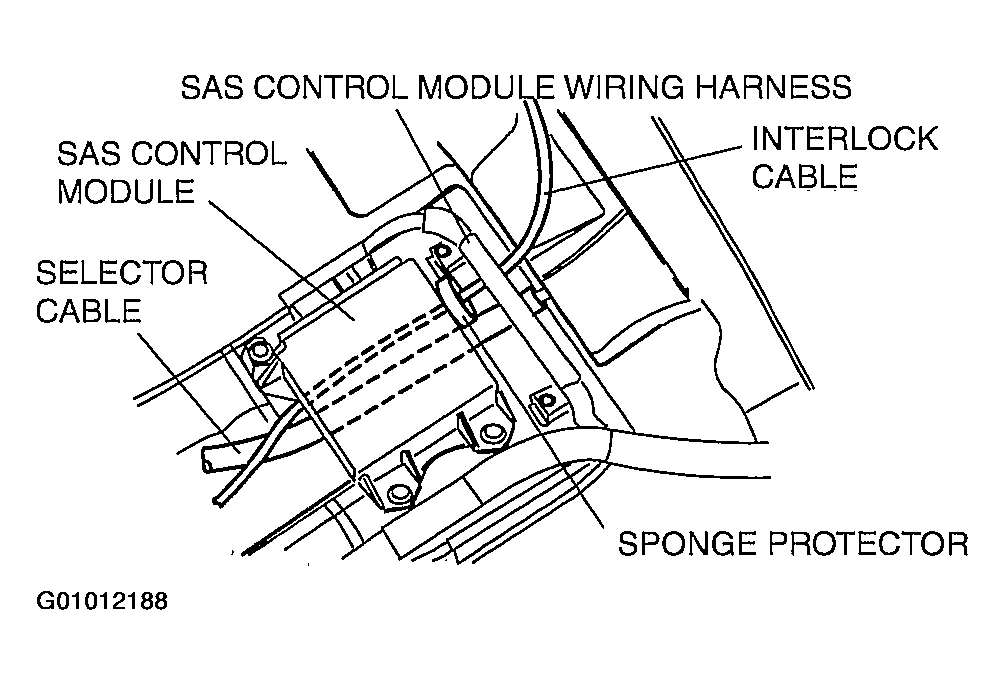

Fig 1: Installing The Interlock Cable
Courtesy of MAZDA MOTORS CORP.
Push the snap pin (or a 1.5 round bar or similar.) into hole A by fully pushing the slider pin in.
Push the snap pin into hole B and hole C of the lock unit until it passes through.

Fig 2: Locating Brake Switch Components
Courtesy of MAZDA MOTORS CORP.
Disconnect the brake switch connector.
Remove the brake switch. See BRAKE PEDAL .
Install a new brake switch.
CAUTION:
- Do not connect the brake switch connector until the interlock cable is installed.
With the slider pin pressed, slide the lock unit to fix the lock unit hook into the bracket hole securely as shown in the figure.
CAUTION:
- Allowing the interlock cable to be bent or twisted during installation can affect the lock unit operation.
Rotate the slider pin to release the lock and verify that it slides freely.

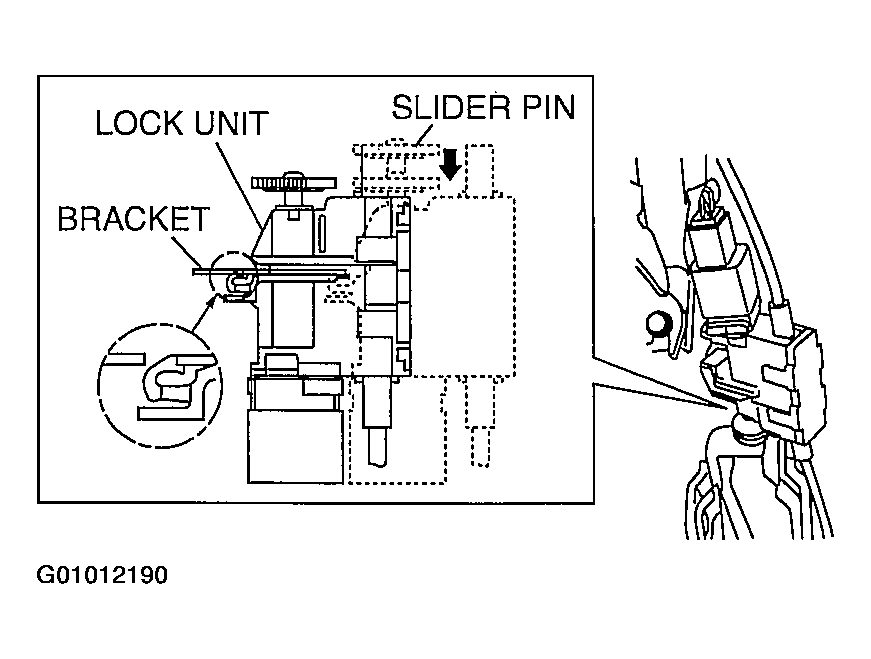

Fig 3: Locating The Lock Unit Into Bracket Hole
Courtesy of MAZDA MOTORS CORP.

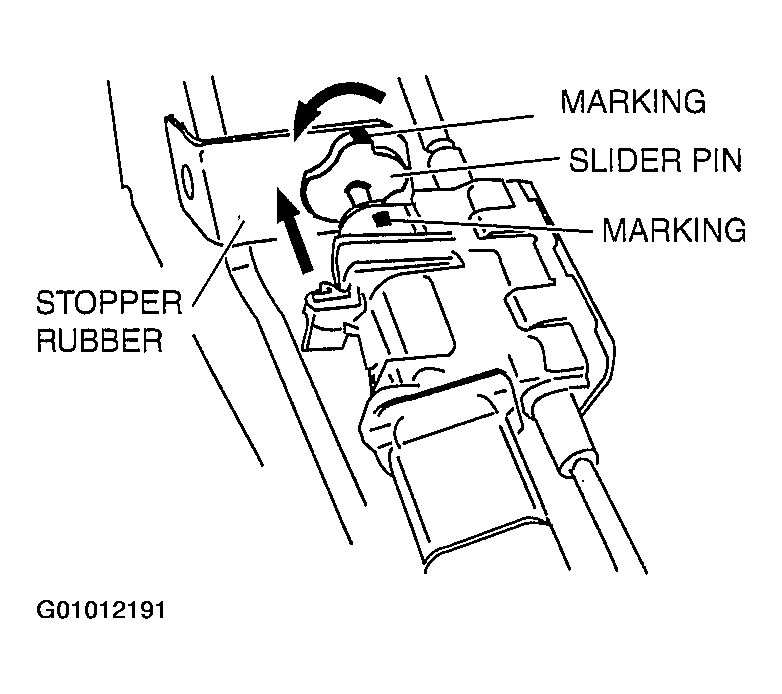

Pull the slider pin outward until it contacts the brake pedal stopper rubber and rotate the slider pin to lock.
Verify that the selector lever in the P position.

Fig 4: Verifying That The Selector Lever In P Position
Courtesy of MAZDA MOTORS CORP.
Install the interlock cable end to the cam pin on the selector lever.

Fig 5: Installing Interlock Cable End To Selector Lever
Courtesy of MAZDA MOTORS CORP.

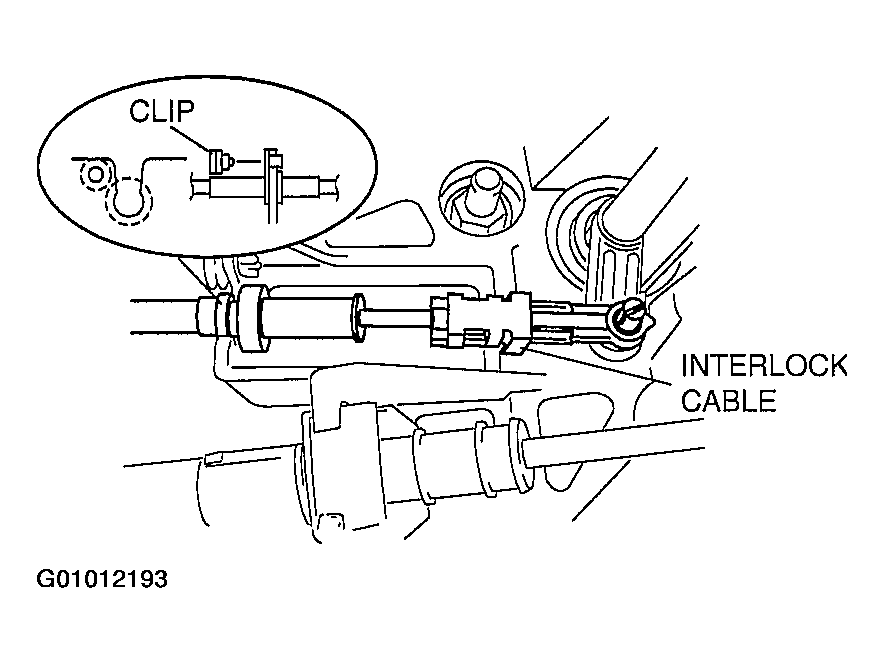

Fit the interlock cable in the U-groove in the selector lever base plate and install the clip.

Fig 6: Installing Interlock Cable By Fitting Clip
Courtesy of MAZDA MOTORS CORP.
Press the interlock cable lock piece in until it is locked.
CAUTION:
- Applying a load to the interlock cable while pressing the lock piece in can affect the lock unit operation.
Fig 7: Press the Interlock Cable Lock Piece In Until It Is Locked
Courtesy of MAZDA MOTORS CORP.
Remove the snap pin from the lock unit holes A, B, and C.
Connect the brake switch connector with the brake pedal released.

Fig 8: Locating Break Switch Components
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- The clearance between the brake switch and the brake pedal is automatically adjusted to the correct amount when the brake switch connector is connected after the brake switch has been properly installed. If the brake switch is not properly installed or the connector is connected before installation, the clearance may be incorrect, causing a brake light malfunction. Therefore, always verify that the brake switch is properly installed before connecting the connector.
- Once the brake switch clearance has automatically been adjusted, it cannot be adjusted again. Therefore, replace the switch with a new one when replacing the power brake unit or the pedal, or performing any procedure that changes the pedal stroke.
Turn the ignition switch to ON position.
Install the interlock cable to the steering lock.
Slide the outer casing to the steering lock and insert the clip over the convex part of the outer casing.

Fig 9: Sliding Outer Casing To Steering Lock And Inserting Clip Over Convex Part
Courtesy of MAZDA MOTORS CORP.
