Selector Cable Adjustment

  1. Remove the center console.
  2. Shift the selector lever to P position.
  3. Unlock the lock piece of the selector cable (selector lever side) in the order shown in Fig 1.
  4. Verify that the manual shaft is in P position.
    Fig 1: Unlocking Lock Piece Of Selector Cable
    G01012172Courtesy of MAZDA MOTORS CORP.
  5. Lock the lock piece of the selector cable (selector lever side) in the order shown in Fig 2.
  6. Install the center console.
  7. Shift the selector lever from P position to M range, and make sure that there are no other components in that area to interfere with the lever.

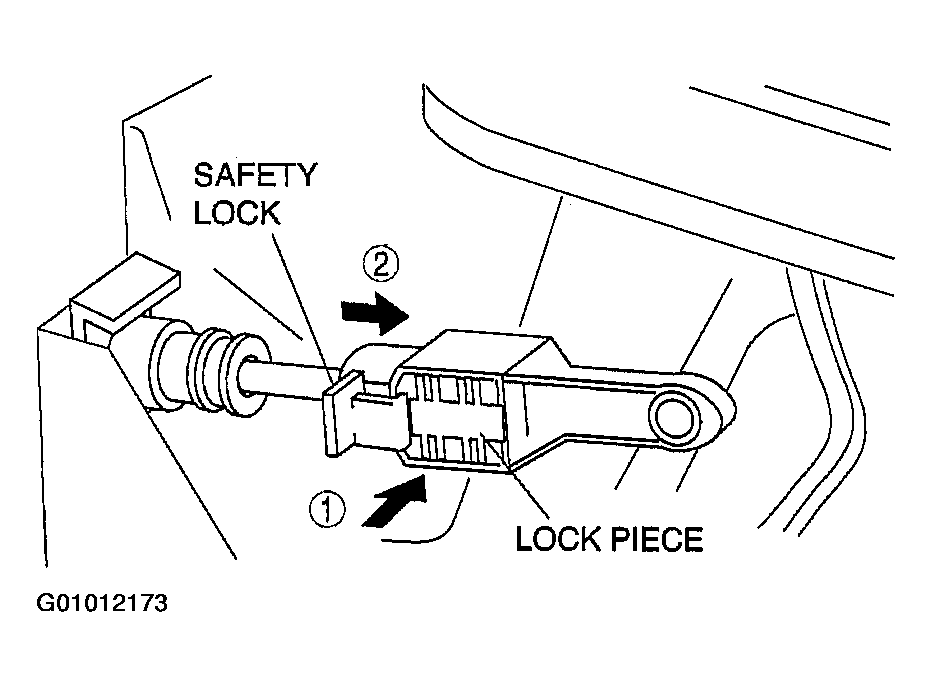

    Fig 2: Locking Lock Piece Of Selector Cable
    G01012173Courtesy of MAZDA MOTORS CORP.
