Interlock Cable Inspection

Turn the ignition switch to ON position. (Engine off)
Remove the clip of the selector lever base plate, then remove the interlock cable from the U groove.

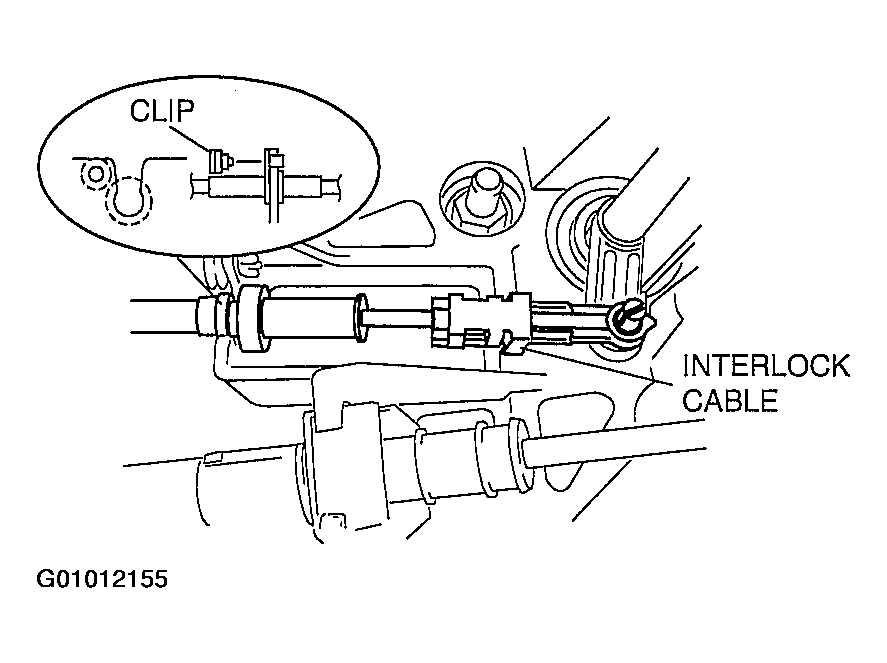

Fig 1: Inspecting Interlock Cable
Courtesy of MAZDA MOTORS CORP.
Remove the interlock cable from the selector lever.

Fig 2: Removing Interlock Cable From Selector Lever
Courtesy of MAZDA MOTORS CORP.
Verify that the interlock cable moves freely with the brake pedal depressed.
- If there is any malfunction, replace the interlock cable.
Fig 3: Verifying That Interlock Cable Moves Freely
Courtesy of MAZDA MOTORS CORP.
