Ignition Coil Removal/Installation: AJ

  1. Disconnect the negative battery cable.
  2. LH: Remove the plug hole plate. (See TIMING CHAIN REMOVAL/INSTALLATION [AJ] .)

    RH: Remove the dynamic chamber. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [AJ] .)

  3. Remove in the order indicated in the illustration.
    Fig 1: Removal Order
    G01027590Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.

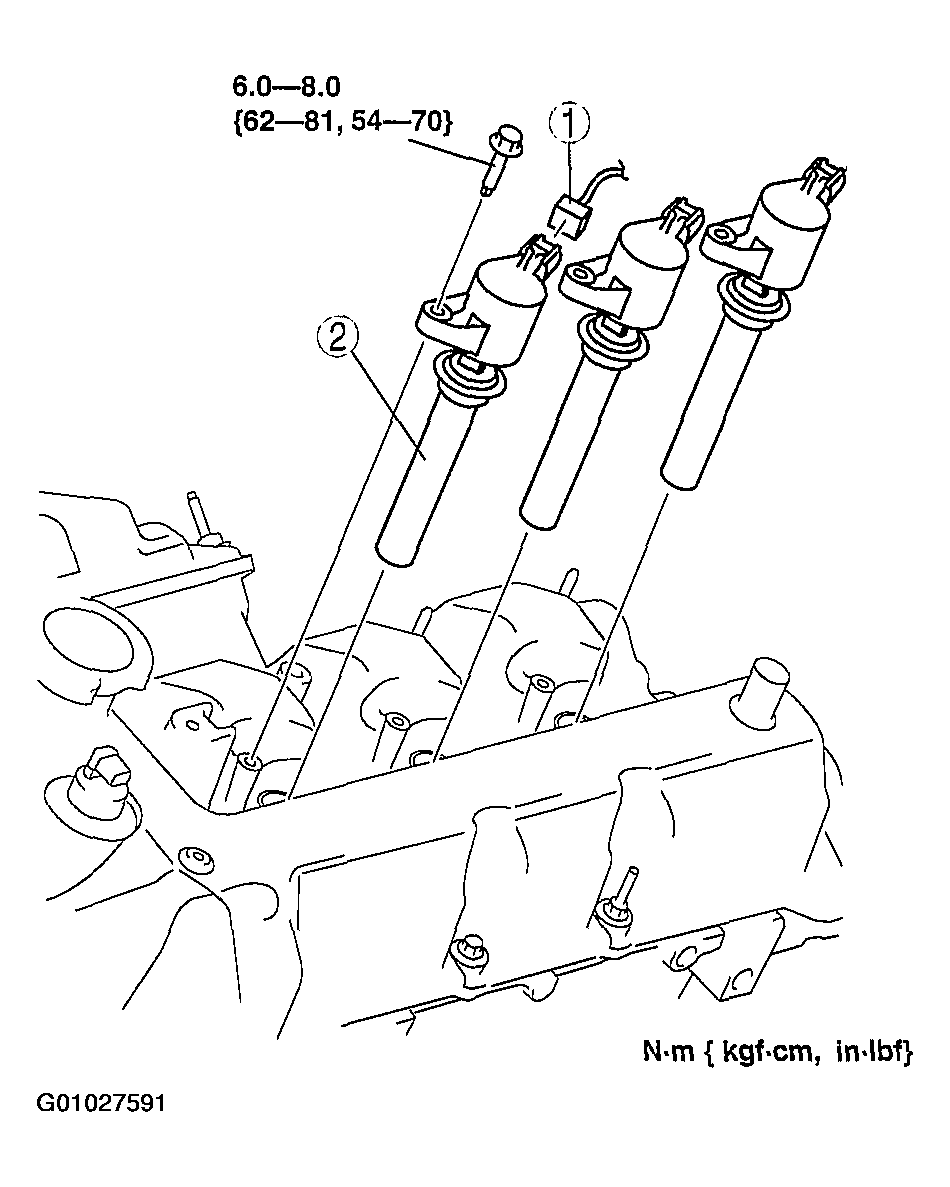

    Fig 2: Installing Connector & Ignition Coil
    G01027591Courtesy of MAZDA MOTORS CORP.
