Home >> Mazda >> 2004 >> 6 s, 4D Hatchback, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System AJ) >> DTC P0703: Brake Switch No. 1 Input Malfunction >> Notes

DTC P0703: Brake Switch No. 1 Input Malfunction: Notes

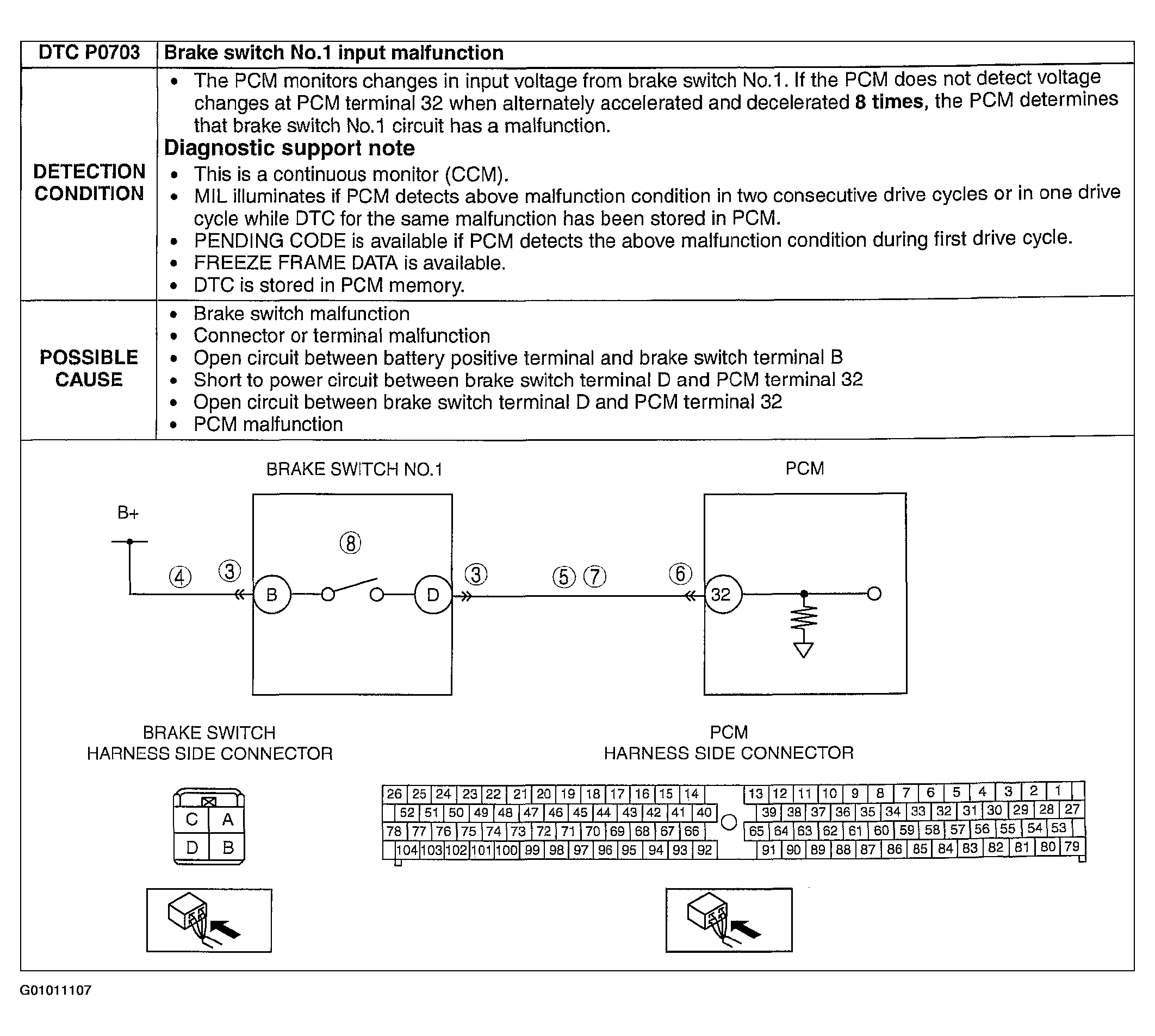

Fig 1: DTC P0703: Detection Condition & Possible Causes Chart

G01011107

Courtesy of MAZDA MOTORS CORP.
