Home >> Mazda >> 2004 >> 6 s, 4D Hatchback, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System AJ) >> DTC P0012: CMP Timing Over-Retarded (RH) >> Notes

DTC P0012: CMP Timing Over-Retarded (RH): Notes

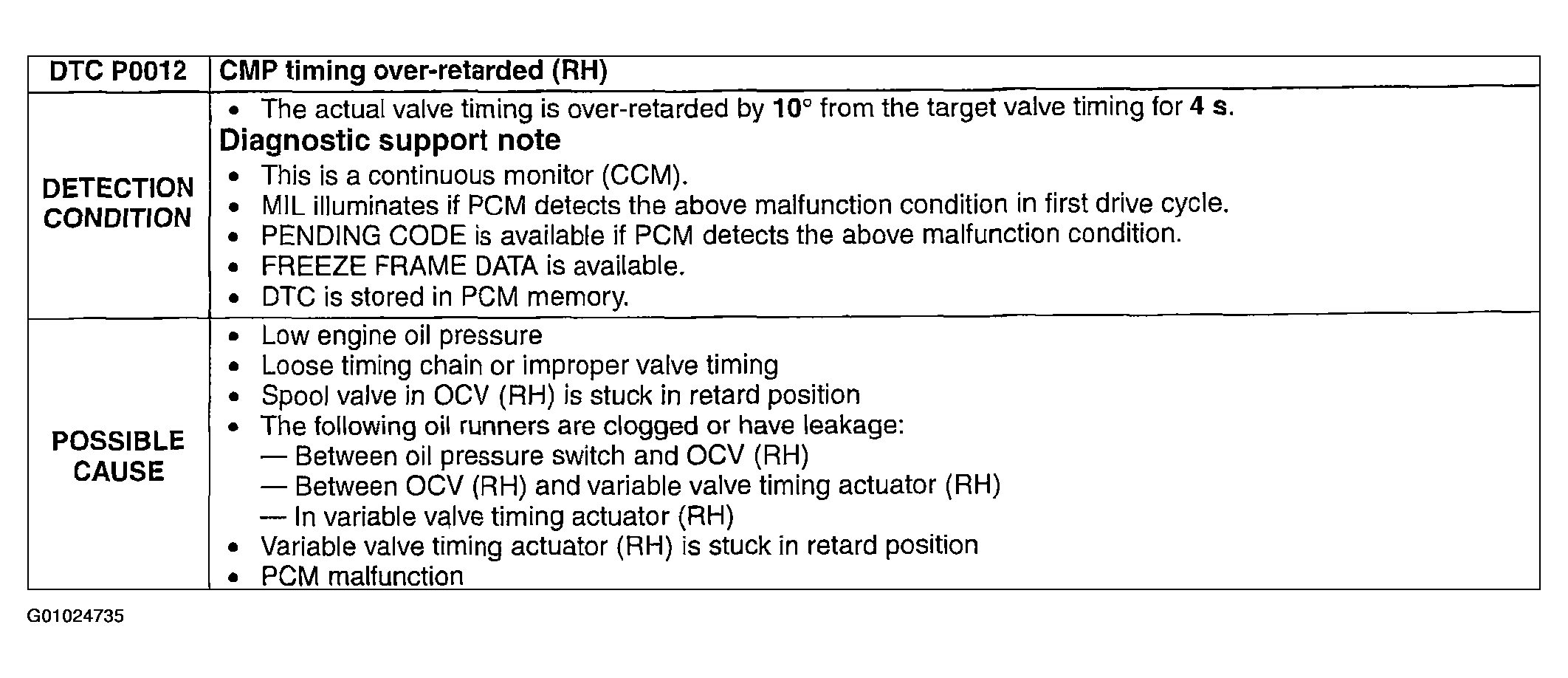

Fig 1: DTC P0012: Detection Condition & Possible Causes Chart

G01024735

Courtesy of MAZDA MOTORS CORP.
