Inspection Using An Oscilloscope (Reference)
>>
Ignition Coil Control Signals
>>
Vehicle Condition
Vehicle Condition
Idle after warm up (no load)

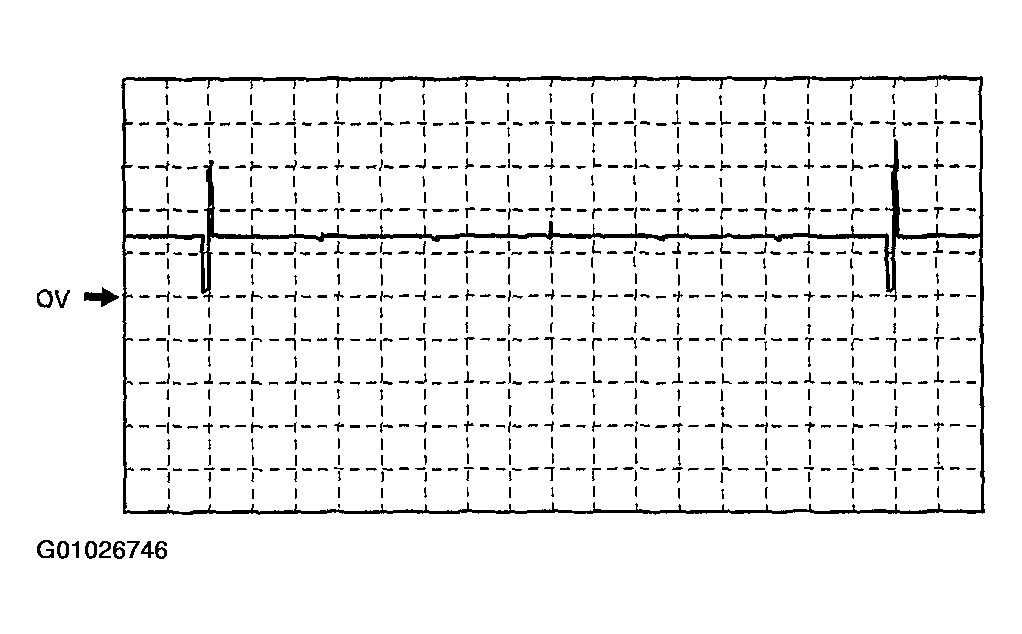

Fig 1: Inspecting Ignition Coil Control Signals Using Oscilloscope
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
