Fuel Leakage Inspection
WARNING:
- Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and damage. Always carry out the following procedure with the engine stopped.
CAUTION:
- Connecting to the wrong check connector terminal may cause a malfunction. Carefully connect only to the specified terminal.

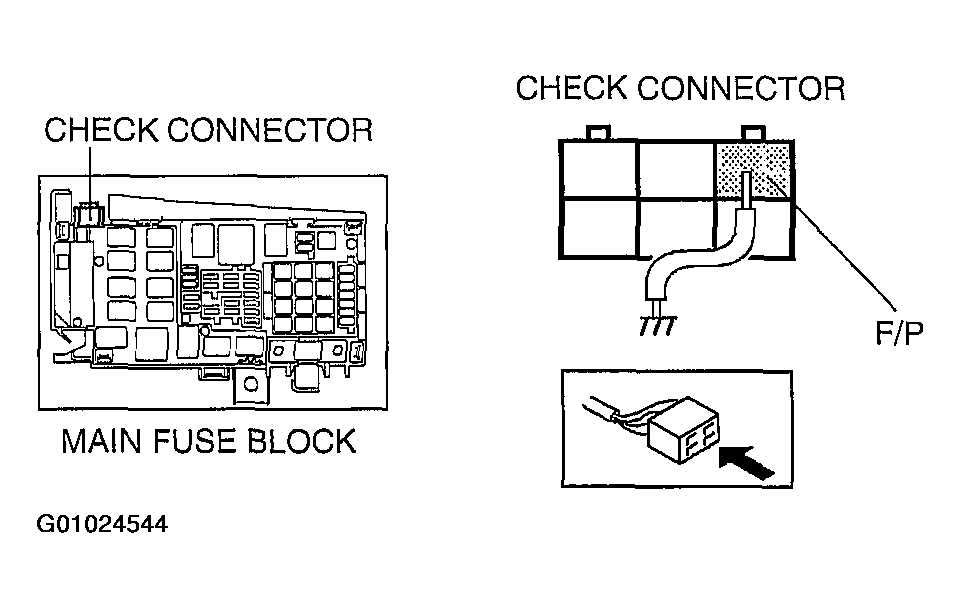

- Short the check connector terminal F/P to body GND using a jumper wire.
- Turn the ignition switch to the ON position to operate the fuel pump.
- Pressurize the system in this manner for at least 5 mins. to be sure there is no leakage.
- If there is fuel leakage, inspect the fuel hoses, hose clamps, and fuel pipe sealing surface, and replace if necessary.
- After repair, assemble the system and repeat Steps 1 to 3 .
