Instrument Cluster Disassembly/Assembly

CAUTION:

• If the instrument cluster is dropped or the print plate is damaged, the system will not work properly and it may be the cause of trouble or malfunctions.

1. Disassemble in the order indicated in figure. See Fig 1.

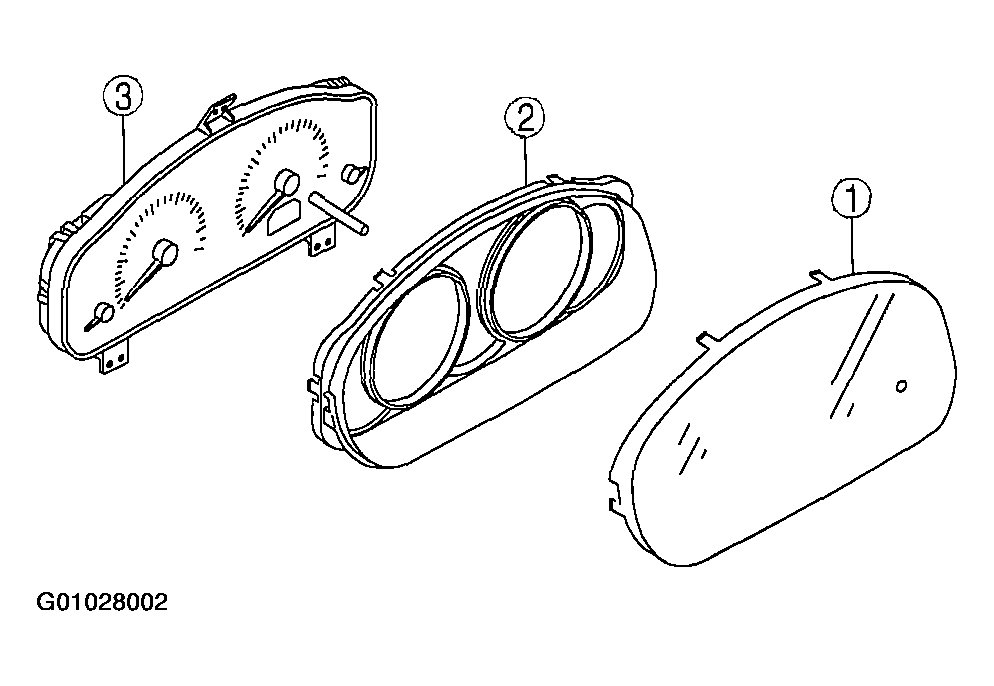

   Fig 1: Disassembling Order Of Instrument Cluster

   Courtesy of MAZDA MOTORS CORP.
2. Assemble in the reverse order of disassembly.

Fig 2: Disassembling/Assembling Instrument Cluster

Courtesy of MAZDA MOTORS CORP.
