Instrument Cluster Configuration

Connect the SST (WDS or equivalent) to the DLC-2.
Input vehicle information following the directions on the screen.
Select "MODULE PROGRAMMING".
Select "PROGRAMMABLE MODULE INSTALLATION".
Select the following items and perform procedures according to directions on the screen.
Items:
- "IC"

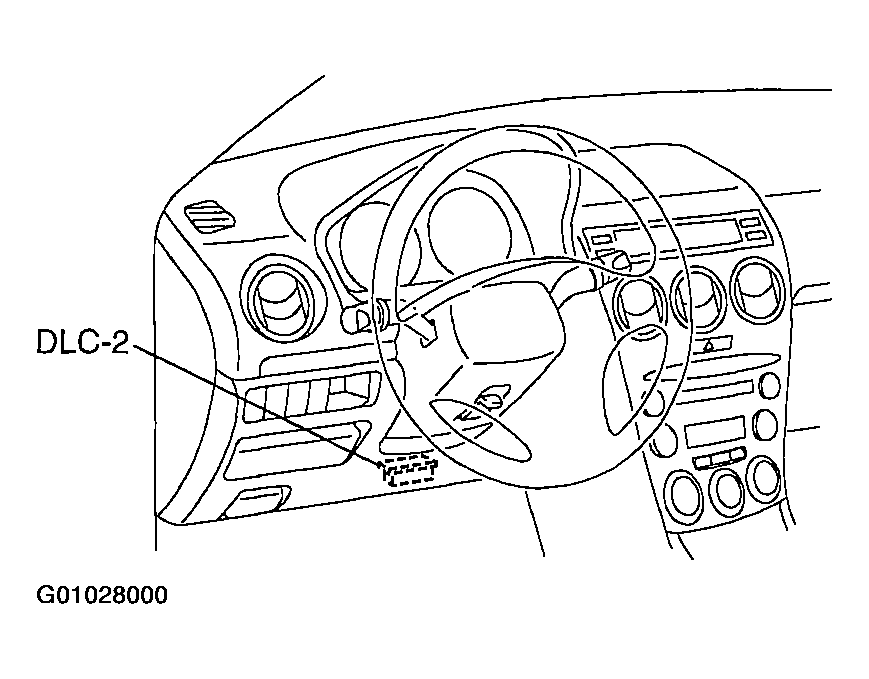

Fig 1: Locating Data Link Connector
Courtesy of MAZDA MOTORS CORP.
Retrieve DTCs using the SST (WDS or equivalent), then verify that there is no DTC present.
- If DTC is present, perform applicable DTC inspection.
