Monitor Item Table

The PID/DATA monitoring items for the instrument cluster is as shown in figure. See Fig 1.

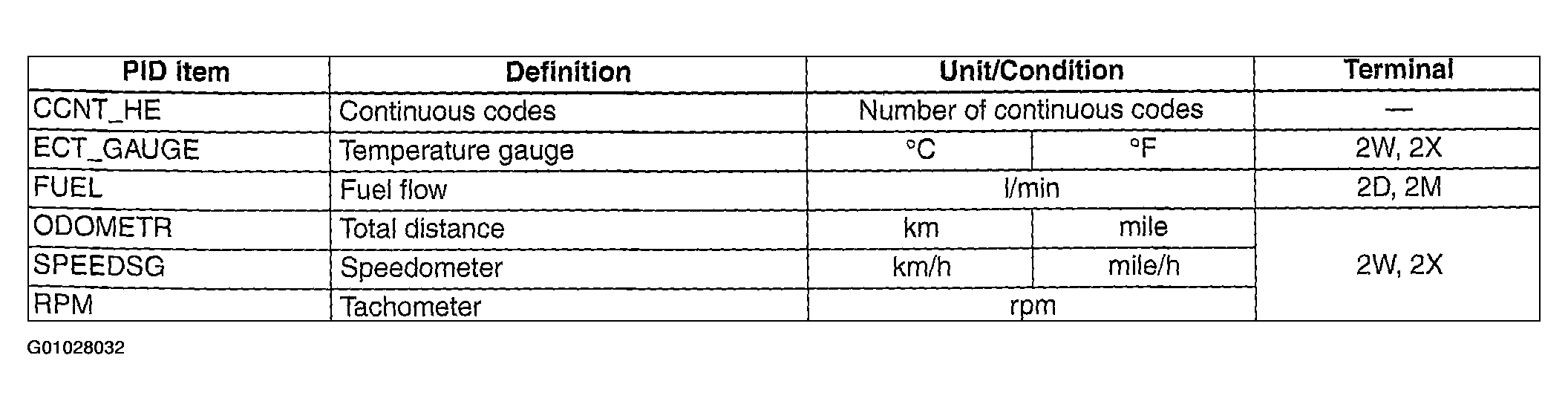

Fig 1: PID/DATA Monitoring Item Table

G01028032

Courtesy of MAZDA MOTORS CORP.
