Coil Installation Note

  1. Install the hole of coil to the tab of steering lock.
  2. Install the hook of coil to the steering lock.

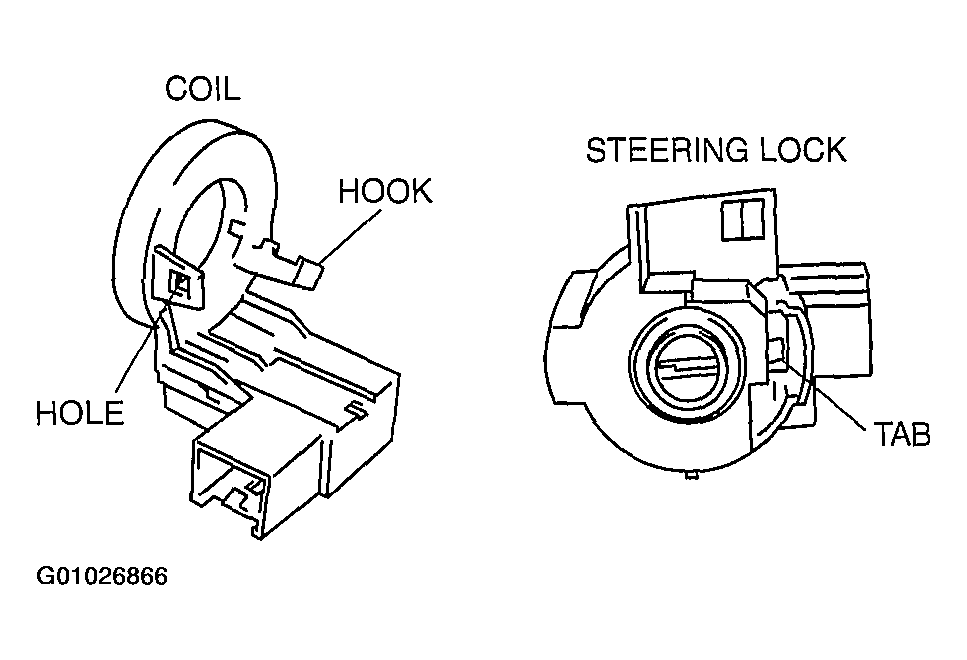

Fig 1: Installing Hole Of Coil To Tab Of Steering Lock
G01026866Courtesy of MAZDA MOTORS CORP.
