Mazda
>>
2004
>>
6 i, 4D Hatchback, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Testing & Diagnosis
>>
Engine Control System (L3)
>>
Control System Diagram
Control System Diagram

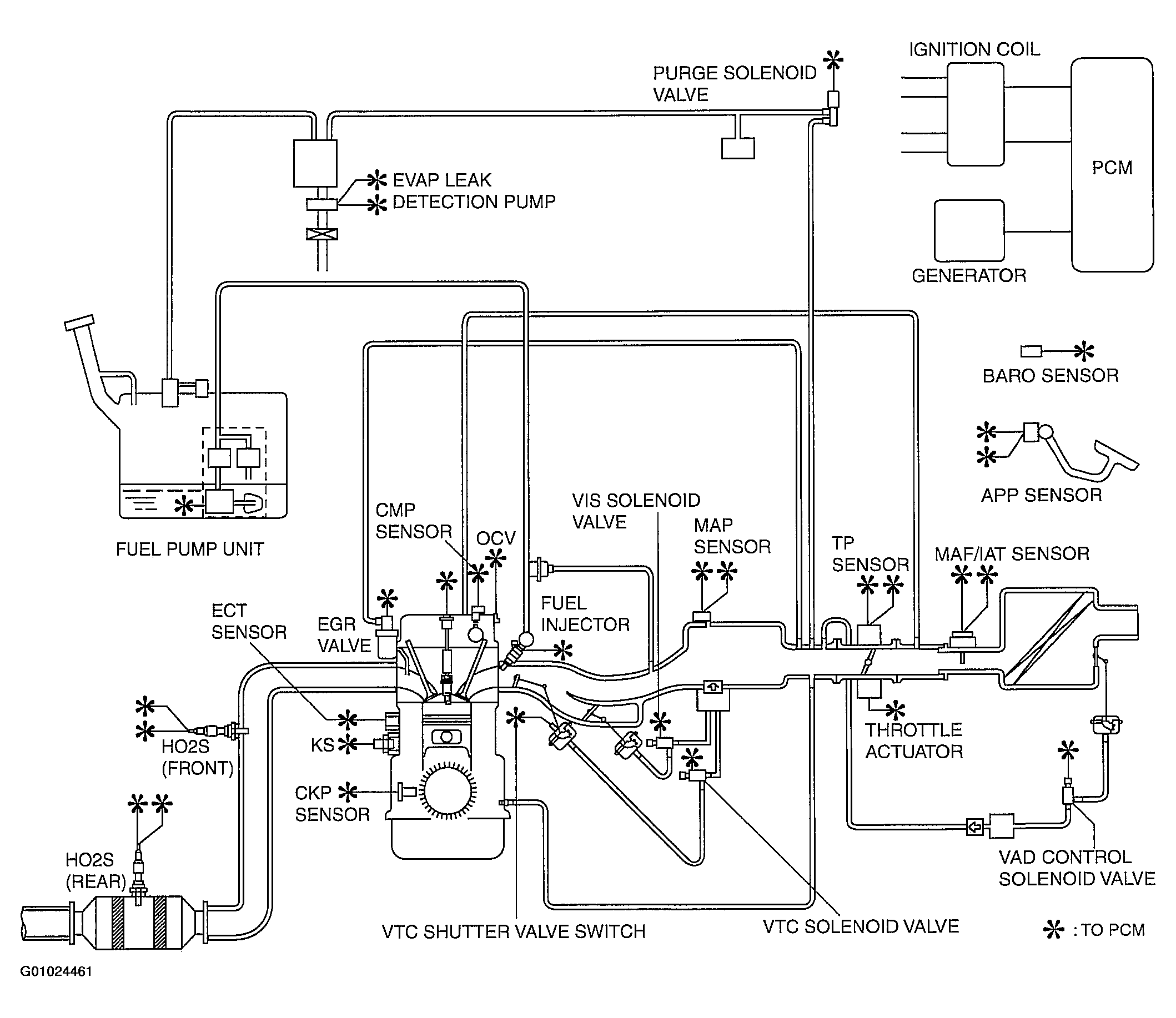

Fig 1: System Component Location & Vacuum Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
