Control System Component Location Index

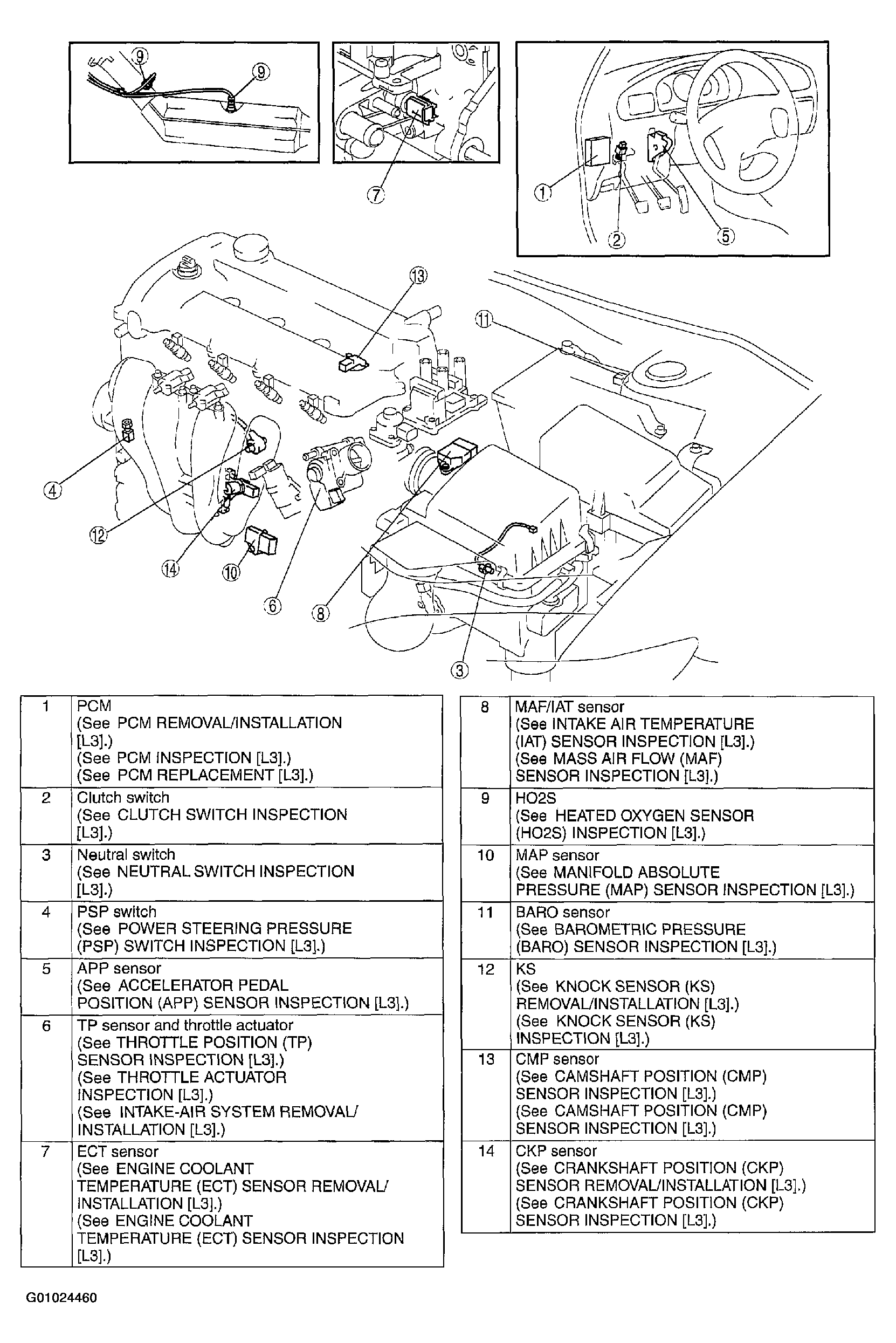

Fig 1: Locating Control System Components

G01024460

Courtesy of MAZDA MOTORS CORP.
