No.5 Engine Stalls-After Start/At Idle: Notes

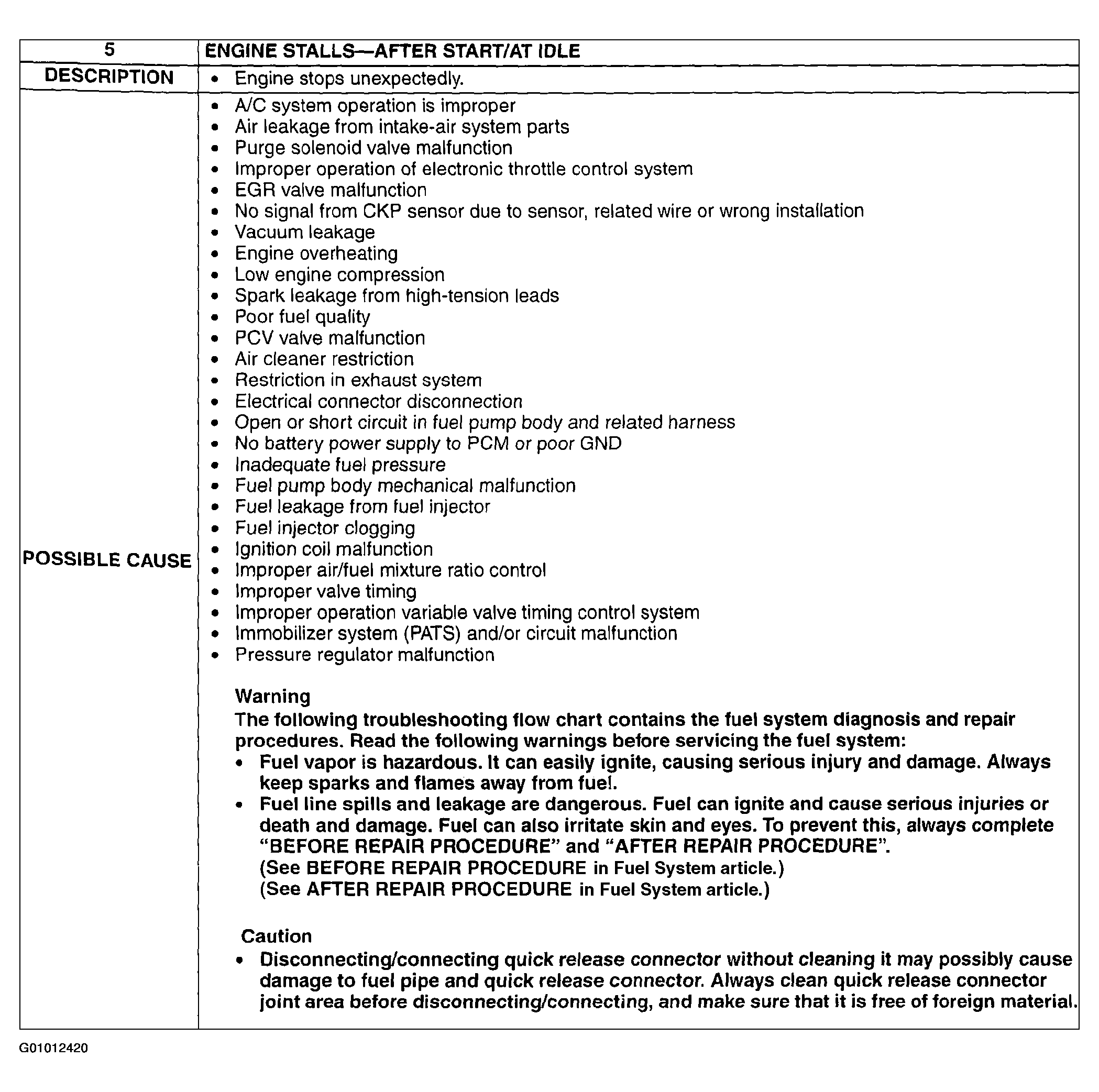

Fig 1: Symptom No.5 Engine Stalls-After Start/At Idle - Description & Possible Causes Chart

G01012420

Courtesy of MAZDA MOTORS CORP.
