No.30 Spark Plug Condition: Notes

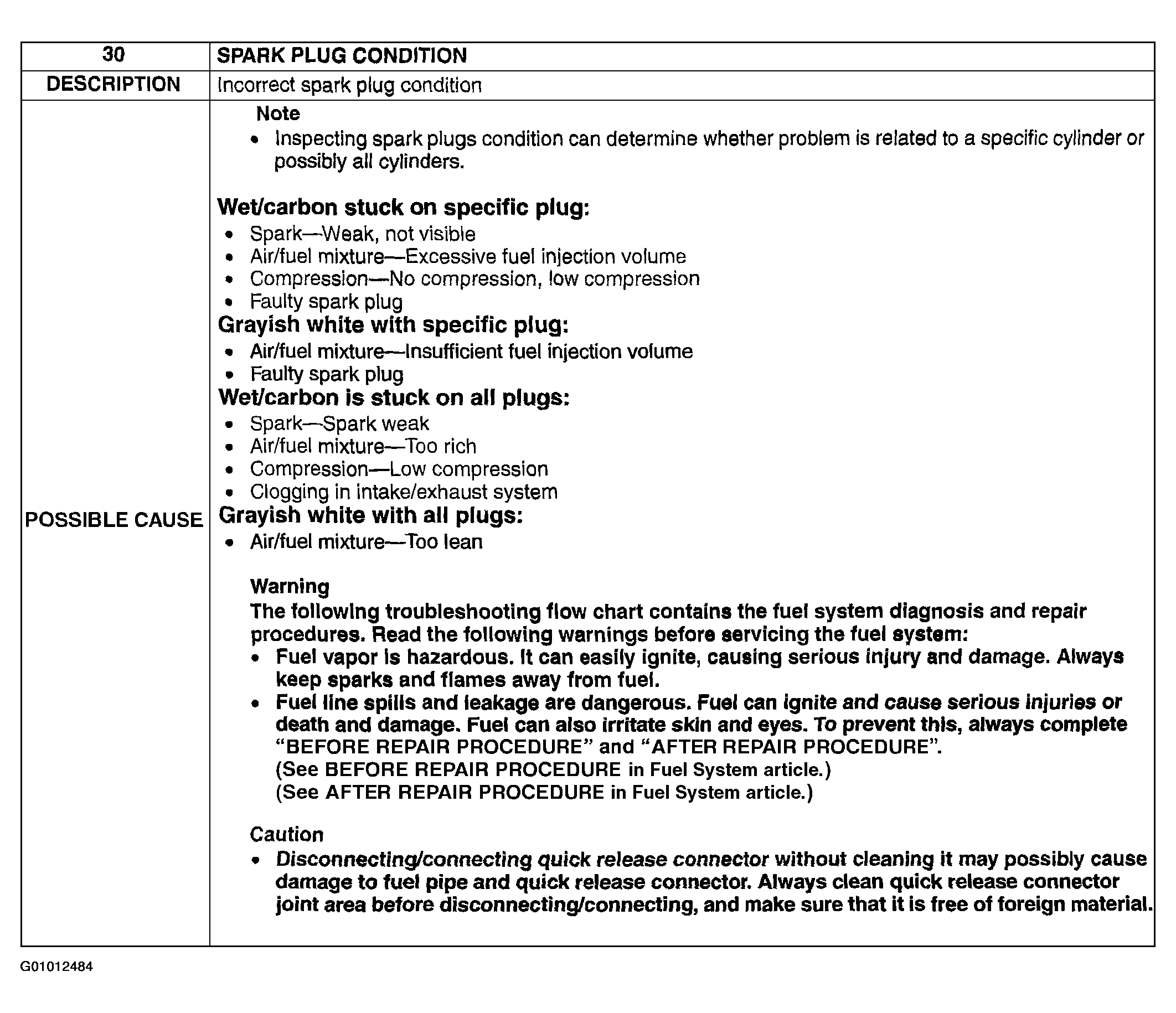

Fig 1: Symptom No.30 Spark Plug Condition - Description & Possible Causes Chart

G01012484

Courtesy of MAZDA MOTORS CORP.
